Eaton

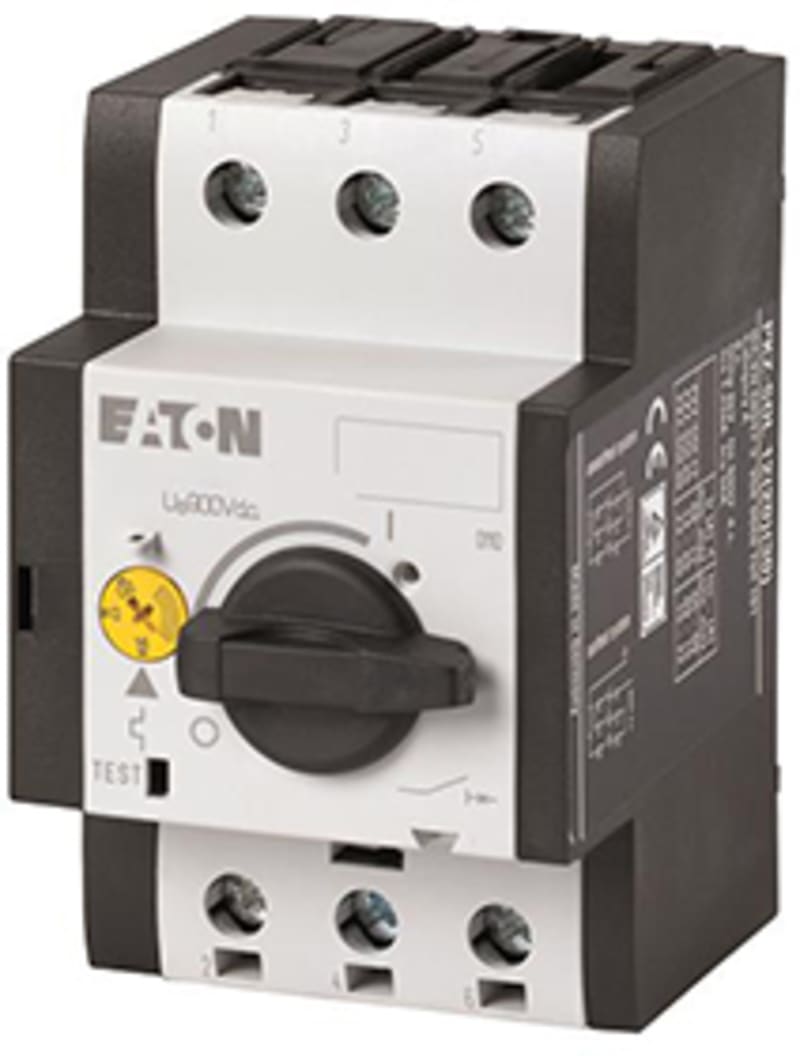

DC switch PKZ-SOL30
Part numberPKZ-SOL30EAN / GTIN4015081187690HS code8536.90
Electrical Components
Moulded Case Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton DC switch PKZ-SOL30 is listed under Electrical Components / Moulded Case Circuit Breakers. HS code: 8536.90; Sales unit: pcs; Eaton catalogue number: 120939; Depth: 93 mm; Height: 76 mm; Width: 58 mm.
Technical Specifications
- Manufacturer part number (MPN)
- PKZ-SOL30
- EAN / GTIN
- 4015081187690
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 120939
- Depth
- 93 mm
- Height
- 76 mm
- Width
- 58 mm
- Weight
- 0.309 kg
- Certifications
- IEC/EN 60947‐2
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Equipment heat dissipation, current-dependent Pvid
- 6.3 W
- Heat dissipation capacity Pdiss
- 0 W
- Heat dissipation per pole, current-dependent Pvid
- 2.1 W
- Rated operational current for specified heat dissipation (In)
- 30 A
- Static heat dissipation, non-current-dependent Pvs
- 0 W
- Internal resistance
- 7 mΩ
- Rated operational current (Ie)
- 30 A at AC-21A
- Rated operational voltage (Ue) - max
- 900 VDC
- Rated operational voltage (Ue) - min
- 900 VDC
- Rated uninterrupted current (Iu)
- 30 A
- Short-circuit release
- 6 x Ie
- Short-circuit current
- 5 - 9 A, Ics, Admissible short-circuit current for solar modules
- Actuator type
- Turn button
- Design
- Open
- Features
- Complete device with protection unit
- Number of poles
- Three-pole
- Application
- Open areas Utility buildings
- Degree of protection
- IP00
- Mounting Method
- DIN rail (top hat rail) mounting optional; Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
- Overload release current setting - max
- 30 A
- Overload release current setting - min
- 23 A
- Product category
- String circuit-breakers Switchgear for photovoltaic systems
- Protection class
- 2
- Suitable for
- DIN rail (top hat rail) mounting
- Terminal capacity (flexible with ferrule)
- 1 x (1 - 6) mm², ferrule to DIN 46228; 2 x (1 - 6) mm², ferrule to DIN 46228
- Terminal capacity (solid/stranded AWG)
- 18 - 14
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081187690
- SAP 1000768314
- Code 81171743
Product Documentation
Document preview: DC switch — Specification Data Sheet (OEM)
