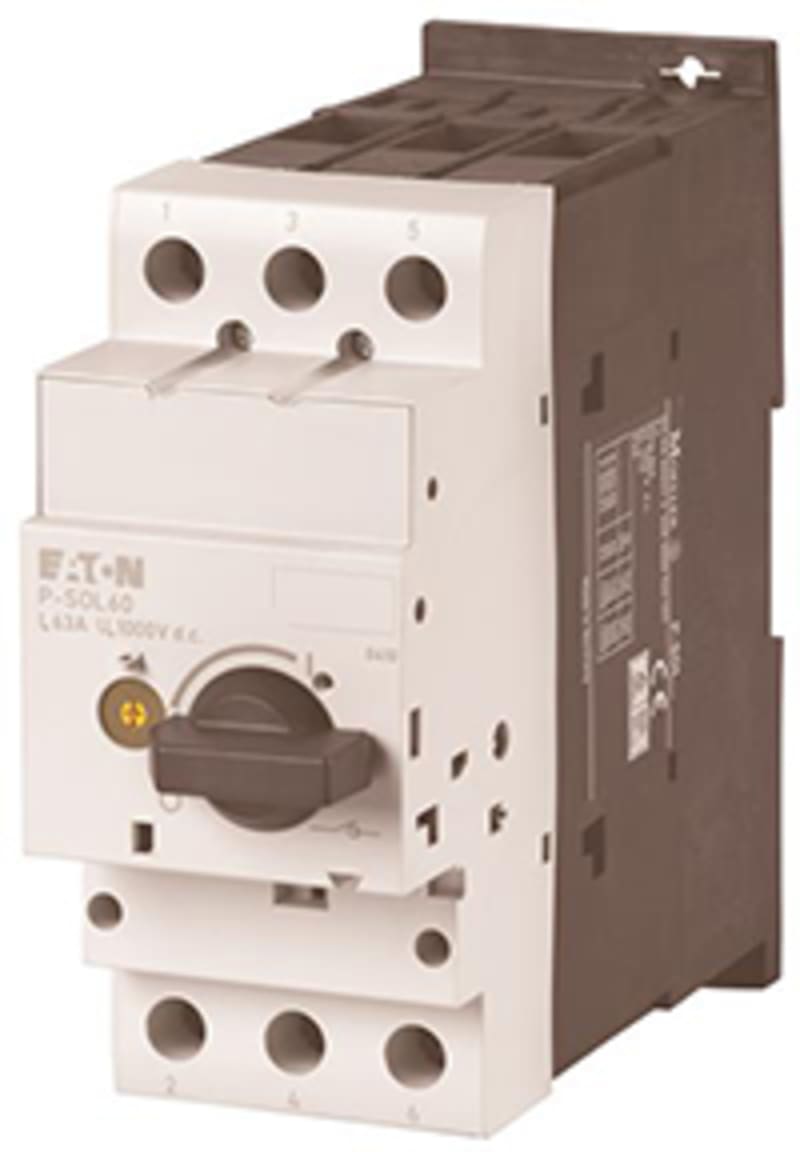

Isolating switch P-SOL60
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Isolating switch P-SOL60 is listed under Switchgear & Protection / Disconnect Switches. HS code: 8536.90; Sales unit: pcs; Eaton catalogue number: 120936; Depth: 160 mm; Height: 140 mm; Width: 55 mm.
Technical Specifications
- Manufacturer part number (MPN)
- P-SOL60
- EAN / GTIN
- 4015081187669
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 120936
- Depth
- 160 mm
- Height
- 140 mm
- Width
- 55 mm
- Weight
- 0.994 kg
- Certifications
- CE; IEC/EN 60947-3
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Equipment heat dissipation, current-dependent Pvid
- 3.97 W
- Heat dissipation capacity Pdiss
- 0 W
- Heat dissipation per pole, current-dependent Pvid
- 0 W
- Rated operational current for specified heat dissipation (In)
- 60 A
- Static heat dissipation, non-current-dependent Pvs
- 0 W
- Rated uninterrupted current (Iu)
- 63 A
- Resistance
- 3 mΩ (internal)
- Actuator color
- Black
- Actuator type
- Turn button
- Design
- Open
- Features
- Isolating characteristics
- Fitted with
- Voltage release optional
- Locking facility
- Yes, optional
- Number of poles
- Two-pole
- Degree of protection
- NEMA Other
- Degree of protection (front side)
- IP20
- Lifespan, electrical
- 1,500 Operations
- Lifespan, mechanical
- 30,000 Operations
- Mounting method
- Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
- Mounting position
- As required
- Operating frequency
- 120 Operations/h
- Product Category
- Switchgear for photovoltaic systems
- Protection class
- 2
- Suitable for
- Distribution board installation; Ground mounting; Floor mounting; Main switch; Maintenance / service switch; Safety switch
- Rated short-circuit making capacity (Icm)
- 0.6 kA (up to 1000 V DC)
- Rated short-time withstand current (Icw)
- 1.5 kA
- Screw size
- 2 x M4 x 18, 30 x 130 mm, Mounting Screw
- Terminal capacity
- 1 x (1 - 35) mm², flexible with ferrule to DIN 46228; 14 - 2 AWG, solid or stranded; 2 x (1 - 35) mm², flexible with ferrule to DIN 46228
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081187669
- SAP 1000768291
- Code 81171555
Product Documentation
