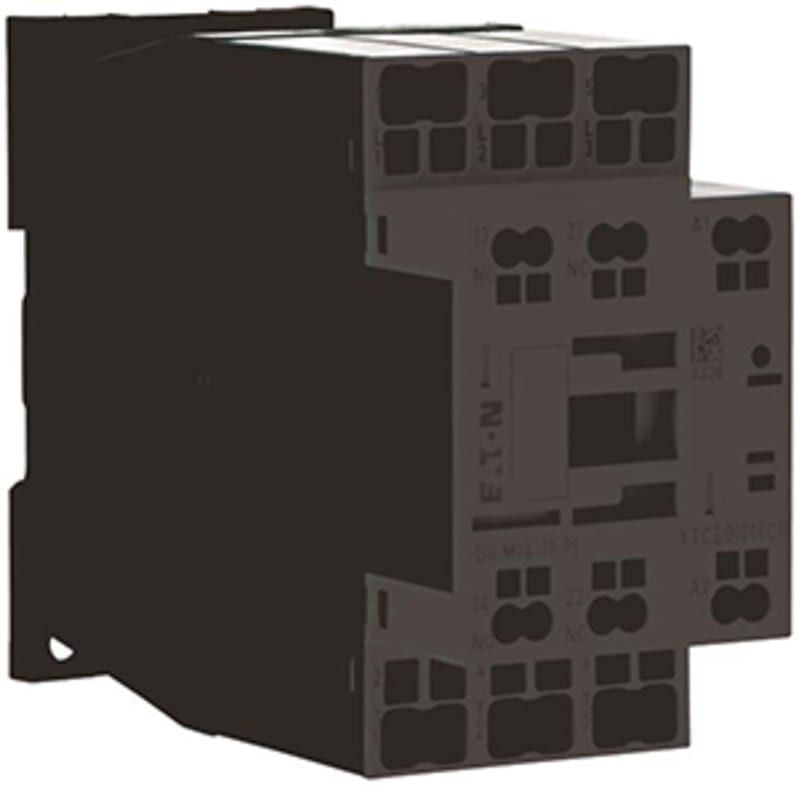

Contactor DILM14-11(RDC24)-PI

Eaton DILM14-11(RDC24)-PI Contactor, 3-pole, 380 V 400 V 5.5 kW, 1 N/O, 1 NC, RDC 24: 24 - 27 V DC, DC -Control, PI.

Manufacturer part number (MPN)

DILM14-11(RDC24)-PI

EAN / GTIN

4015081973620

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

199278

Depth

115 mm

Height

85 mm

Width

45 mm

Weight

0.546 kg

Certifications

VDE 0660; IEC/EN 60947; UL Listed; CSA certified; UL Category Control No.: NLDX; CE marking; UL File No.: E29096; CSA Class No.: 2411-03

3211-04; CSA File No.

012528

Catalog Notes

Also tested according to AC-3e.

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

In conjunction with DIL-SWD SmartWire DT contactor module; Yes

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

1

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

80 A

Conventional thermal current Ith (3-pole, enclosed)

32 A

Conventional thermal current Ith at 55°C (3-pole, open)

37 A

Conventional thermal current Ith of main contacts (1-pole, open)

88 A

Heat dissipation capacity Pdiss

0 W

Rated breaking capacity at 220/230 V

120 A

Rated breaking capacity at 380/400 V

120 A

Rated breaking capacity at 500 V

100 A

Rated breaking capacity at 660/690 V

70 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

144 A

Rated operational current (Ie)

14 A at AC-3, 220/230 V

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

40 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

14 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

14 A

Rated operational current (Ie) at AC-3

440 V

14 A

Rated operational current (Ie) at AC-3

500 V

10 A

Rated operational current (Ie) at AC-3, 660 V

690 V

7 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

7 A

Rated operational current (Ie) at AC-4

440 V

7 A

Rated operational current (Ie) at AC-4

500 V

6 A

Rated operational current (Ie) at AC-4, 660 V

690 V

5 A

Rated operational power at AC-3, 240 V

50 Hz

3.5 kW

Rated operational power at AC-3, 380/400 V

50 Hz

5.5 kW

Rated operational power at AC-3, 415 V

50 Hz

7 kW

Rated operational power at AC-4, 220/230 V

50 Hz

2 kW

Rated operational power at AC-4, 240 V

50 Hz

2.2 kW

Rated operational power at AC-4, 415 V

50 Hz

3.4 kW

Rated operational power at AC-4, 440 V

50 Hz

3.6 kW

Rated operational power at AC-4, 500 V

Rated operational power at AC-4, 660/690 V

50 Hz

4.4 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Mirror contact; Suppressor circuit in actuating electronics

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Push in terminals

Degree of protection

IP20

Lifespan, mechanical

10,000,000 Operations (DC operated)

Operating frequency

5000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running; AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

DC

Frame size

FS2

Arcing time

10 ms

Duty factor

100 %

Pick-up voltage

0.7 - 1.2 V DC x Us; 24 - 27 V DC (RDC 24); 0.7 - 1.2 V DC x Uc

Power consumption (pick-up) at DC

12 W

Power consumption (sealing) at DC

0.9 W

Rated control supply voltage (Us) at DC - max

27 V

Rated control supply voltage (Us) at DC - min

27 V

Switching time (DC operated, make contacts, closing delay) - max

47 ms

Switching time (DC operated, make contacts, opening delay) - max

30 ms

Assigned motor power at 115/120 V, 60 Hz

1-phase

1 HP

Assigned motor power at 200/208 V, 60 Hz

3-phase

3 HP

Assigned motor power at 230/240 V, 60 Hz

1-phase

2 HP

Assigned motor power at 230/240 V, 60 Hz

Assigned motor power at 460/480 V, 60 Hz

3-phase

10 HP

Assigned motor power at 575/600 V, 60 Hz

Safe isolation

400 V AC, Between the contacts, According to EN 61140; 400 V AC, Between coil and contacts, According to EN 61140

Short-circuit current rating (basic rating)

5 kA, 125 A max. fuse CLASS RK5, SCCR (UL/CSA); 5 kA, 125 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

100 kA, 70 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 30 A CLASS RK5, SCCR (UL/CSA); 65 kA, 32 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

100 kA, 70 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 30 A CLASS RK5, SCCR (UL/CSA)

Screwdriver size

3.0 x 0.5 mm, Terminal screw; 3 x 0.5 mm, Terminal screw

Terminal capacity (flexible)

1 x (0.5 - 2.5) mm²; 2 x (1-6) mm²; 2 x (0.5 - 2.5) mm²; 1 x (1 - 10) mm²

Terminal capacity (solid)

1 x (1 - 6) mm²; 1 x (0.5 - 0.25) mm²; 2 x (1 - 6) mm²; 2 x (0.5 - 2.5) mm², Control circuit cables

HS Code

8536.90
