Eaton

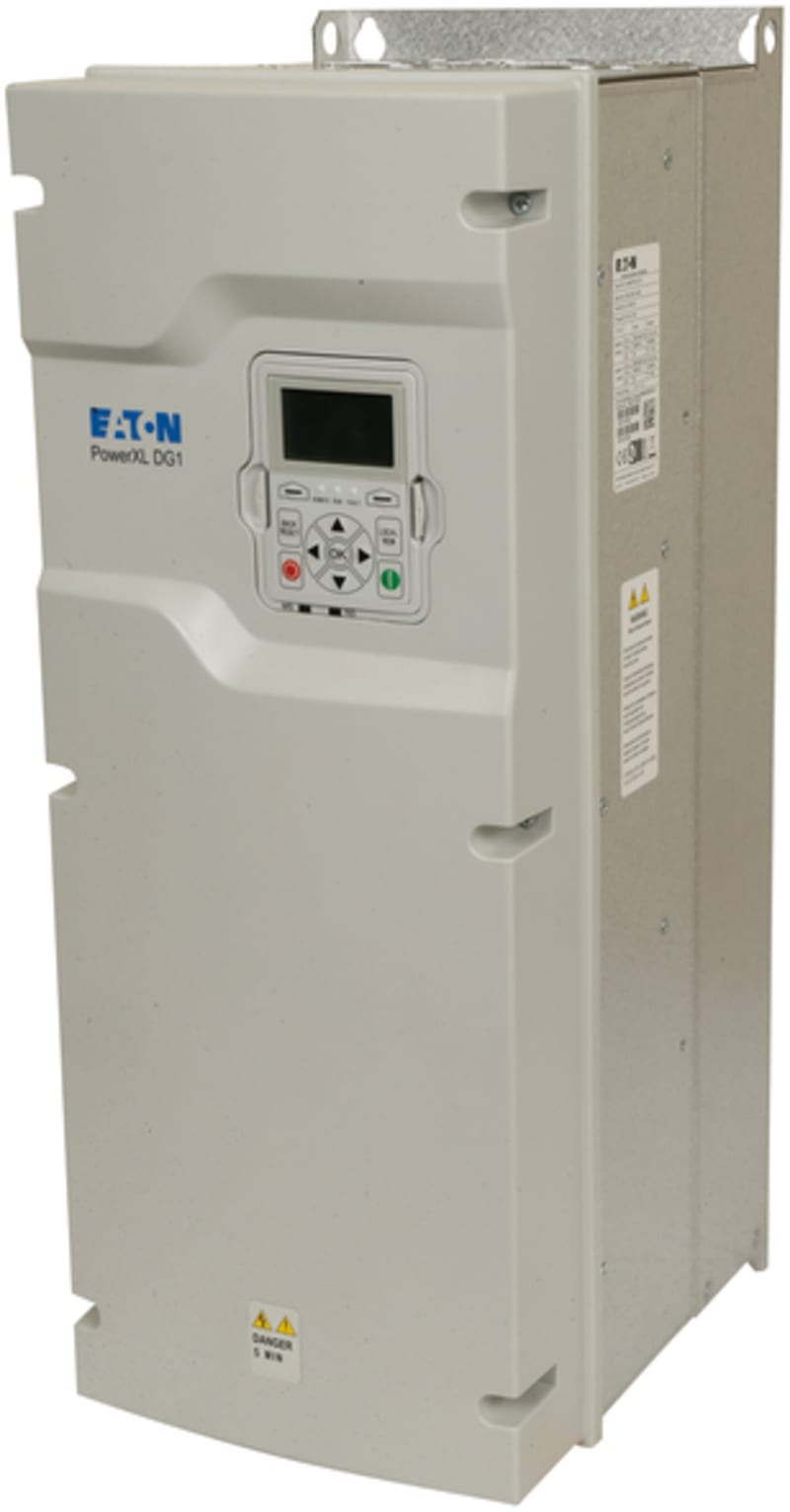

DG1 variable-frequency drive 400V: 45kW (DG1-34087FB-C54C)
Part numberDG1-34087FB-C54CEAN / GTIN4015081710973HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton DG1 variable-frequency drive 400V: 45kW (DG1-34087FB-C54C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Power: 45 kW; Voltage: 400 V; Width: 243 mm; Height: 630 mm.
Technical Specifications
- Manufacturer part number (MPN)
- DG1-34087FB-C54C
- EAN / GTIN
- 4015081710973
- HS code
- 8504.40
- Sales unit
- pcs
- Power
- 45 kW
- Voltage
- 400 V
- Width
- 243 mm
- Height
- 630 mm
- Depth
- 290 mm
- Power consumption
- 1217 W
- With control element
- Yes
- Number of digital inputs
- 8
- Number of digital outputs
- 1
- Number of analogue inputs
- 2
- Number of analogue outputs
- 2
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP54
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Number of interfaces PROFINET
- 1
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 400 Hz
- Max. output at linear load at rated output voltage
- 90 kW
- Max. output at quadratic load at rated output voltage
- 55 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 10 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- Yes
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 480 V
- Nominal output current I2N
- 105 A
- Supporting protocol for BACnet
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081710973
- SAP 1200123856
- Code 81987622
Product Documentation
Document preview: DG1 variable-frequency drive 400V: 45kW (DG1-34087FB-C54C) — Specification sheet
More from Eaton
Eaton
Eaton XIOC-2AO-U2 Analog Output Module, 2 Outputs +/-10 V
Eaton
Front plate sealed H50 B800 xE B
BPZ-VZFP-800/050-BL
Eaton
Eaton DILM15-01(110V50HZ,120V60HZ) contactor 3-pole 7.5 kW 1 NC
Eaton
Cabinet H×W×D 1600X1000X400 IP40
XVTL-BF-10/4/16
Eaton
Mounting Kit rails xE Light (XLASRW85)
Eaton

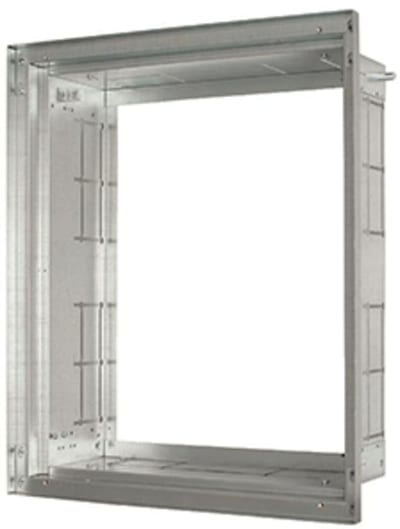

Wall box H×W×D=1060X1000X180MM
