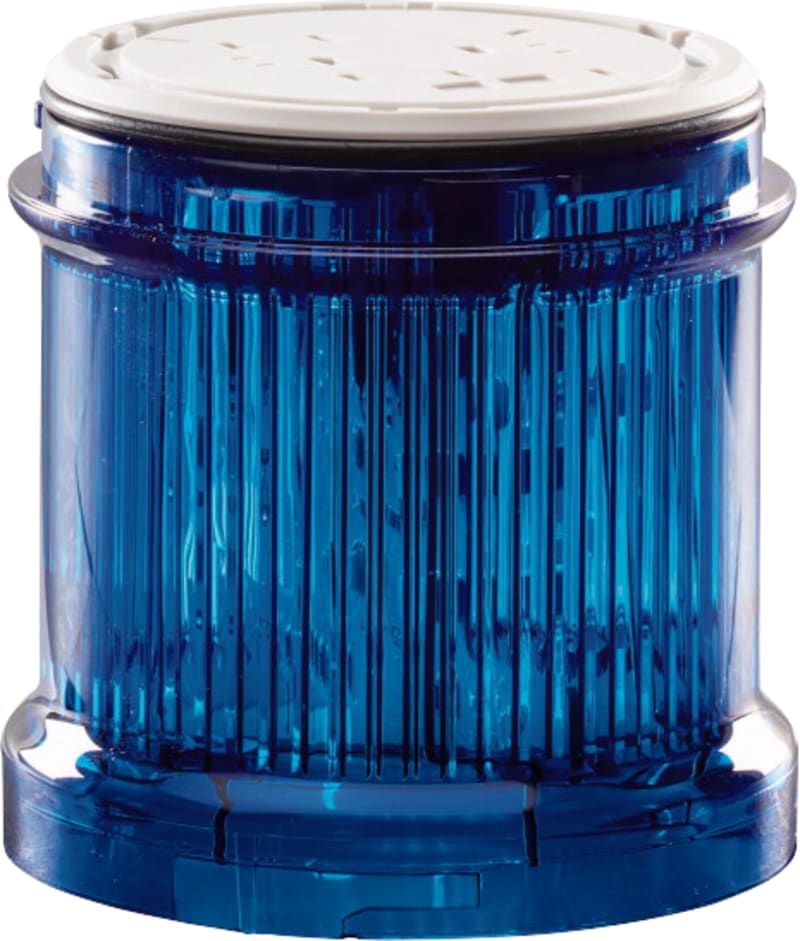

LED Steady light, Blue, 230V (SL7-L230-B)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED Steady light, Blue, 230V (SL7-L230-B) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 171473; Depth: 73 mm; Height: 73 mm; Width: 73 mm; Weight: 0.082 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-L230-B
- EAN / GTIN
- 4015081677993
- Sales unit
- pcs
- Eaton catalogue number
- 171473
- Depth
- 73 mm
- Height
- 73 mm
- Width
- 73 mm
- Weight
- 0.082 kg
- Certifications
- CSA-C22.2 No. 14-10; UL Category Control No.: NKCR; CSA Class No.: NKCR7; UL report applies to both US and Canada; CE; IEC/EN 60529; UL; IEC/EN 60947-5-1; CSA-C22.2 No. 94-91; UL File No.: E29184; Certified by UL for use in Canada; UL 508
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage (Ue) at AC - max
- 240 V
- Rated operational voltage (Ue) at AC - min
- 230 V
- Color
- Blue
- Enclosure color
- Black
- Functions
- Continuous light
- Light modules
- LED
- Number of modules
- Max. 5 (with standard base); Max. 10 (with base for mounting on both sides)
- Connection to SmartWire-DT
- No
- Current consumption
- 34 mA at 230/240 V AC
- Degree of protection
- IP66; NEMA 4
- Lifespan, electrical
- 100,000 h
- Light type
- Continuous light
- Material
- Cap: Polycarbonate (PC); Enclosure: Polycarbonate (PC)
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Type
- Continuous light module
- Voltage type
- AC
- Colour
- Blue
- Outer diameter
- 73 mm
- Housing colour
- Black
- Lamp type
- LED
- Operating voltage AC 50 Hz
- 110–120 V
- Operating voltage AC 60 Hz
- 110–120 V
- Repetition frequency settable
- No
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081677993
- SAP 1000492250
- Code 8605707
Product Documentation
More from Eaton
Eaton
Emergency stopswitch, RMQ (M22-PVS45P-MS1)
Eaton
Motor protection circuit breaker,PKZM0-4-PI
Eaton
Eaton FAZT-B40/3N Miniature Circuit Breaker — 3P+N, Type B, 40 A, 25 kA
Eaton
xComfort Plug-In Heating Actuator 12 A, Grey
CHAP-01/Fa-12E
Eaton
Eaton Pluggable N1 load-break switch 125A 3-Pole
N1-125-SVE
Eaton
Switch-disconnector DMM-160/3N/I5/C-R
Eaton
P3 Of/On-switch, 80 A,4 pole, Form IVS (1414038)
Eaton
Area switch E52Q-DL35UAD01
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SL7-L230-B?
- SL7-L230-B can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is SL7-L230-B.
- What is the HS code for SL7-L230-B?
- The customs tariff (HS) code for SL7-L230-B is 8531.80.
- Who manufactures SL7-L230-B?
- SL7-L230-B is a Eaton product in the Control & Automation range.
- Is a datasheet available for SL7-L230-B?
- Yes — the SL7-L230-B datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SL7-L230-B?
- The minimum order quantity is 1.
- Is SL7-L230-B available?
- Yes — SL7-L230-B is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
