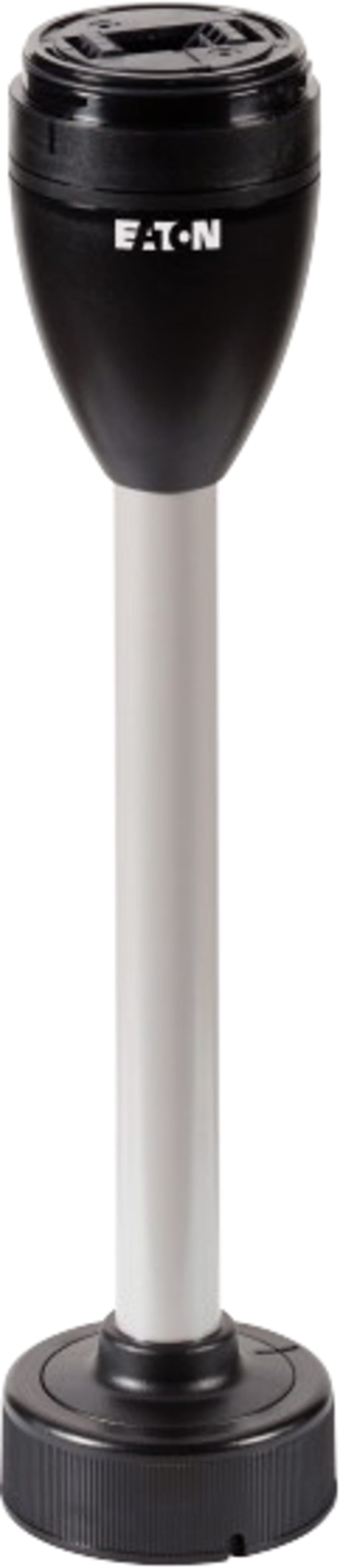

Base, Quick.Inst, 250mm Aluminium Tube (SL7-FMS-250)
Part numberSL7-FMS-250EAN / GTIN4015081677863HS code8531.90
Metals & Profiles
Bars, Plates & Profiles
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Base, Quick.Inst, 250mm Aluminium Tube (SL7-FMS-250) is listed under Metals & Profiles / Bars, Plates & Profiles. Sales unit: pcs; Eaton catalogue number: 171457; Depth: 81 mm; Height: 352 mm; Width: 81 mm; Weight: 0.279 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-FMS-250
- EAN / GTIN
- 4015081677863
- Sales unit
- pcs
- Eaton catalogue number
- 171457
- Depth
- 81 mm
- Height
- 352 mm
- Width
- 81 mm
- Weight
- 0.279 kg
- Certifications
- UL report applies to both US and Canada; CE; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; IEC/EN 60529; UL; UL File No.: E29184; CSA-C22.2 No. 14-10; IEC/EN 60947-5-1; CSA Class No.: NKCR7; Certified by UL for use in Canada; UL 508
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 110/120 V AC ± 10 %; 230/240 V AC ± 10 %; 24 V AC/DC ± 10 %
- Color
- Other
- Fitted with
- Cover; Base adapter for slipping onto place (rapid mounting and wiring system)
- Number of modules
- Max. 5; Max. 5 (with standard base); Max. 10 (with base for mounting on both sides)
- Connection to SmartWire-DT
- No
- Degree of protection
- IP66; NEMA 4X; NEMA 4; NEMA 13
- Mounting Method
- Bracket; Horizontal; Floor
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Tube length
- 250 mm
- Type
- Base module
- Terminal capacity (AWG)
- 24 - 14
- Terminal capacity (flexible with ferrule and plastic collar)
- 0.25 - 1.5 mm²
- Terminal capacity (solid/flexible)
- 0.13 - 2.5 mm²
- Suitable for tube mounting
- No
- Suitable for angle mounting
- Yes
- Suitable for AS interface
- No
- Connection type auxiliary circuit
- Screw connection
- Suitable for M12 connector
- No
- Suitable for IO link
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 4015081677863
- SAP 1000492335
- Code 8818932
Product Documentation
Document preview: Base, Kvikk.Inst, 250mm Aluminium Tube (SL7-FMS-250) — Specification Data Sheet (OEM)
More from Eaton
Eaton

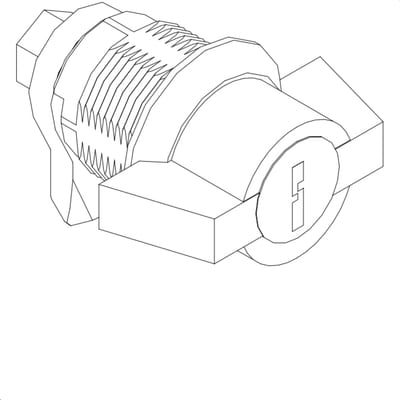

Eaton 220B0013 Enclosure Lock with Cylinder Key
Eaton
Eaton FRCMM-40/4/03-A Ground Switch
170342
Eaton

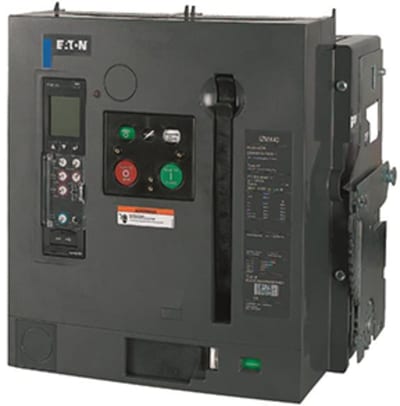

Eaton IZMX40H3-V40W-1
Eaton

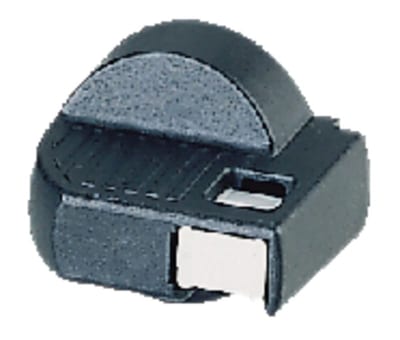

Lockablet GREP Direct ON Switch
AK-PKZ0
Eaton

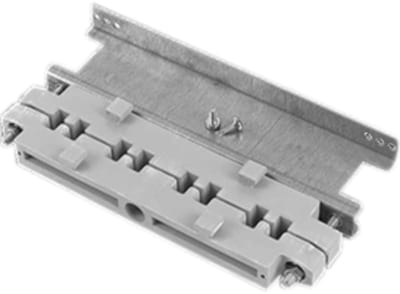

Shield clamp 800A 3/4-POLE xE Main (XBST08-1)
Eaton

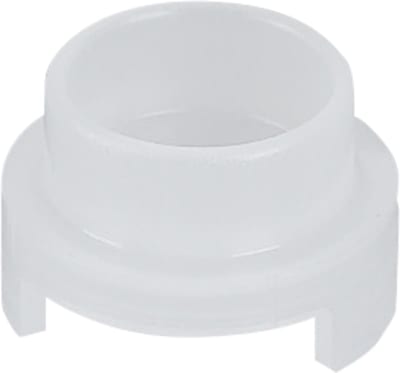

Tettningsplugg FOR IKA
