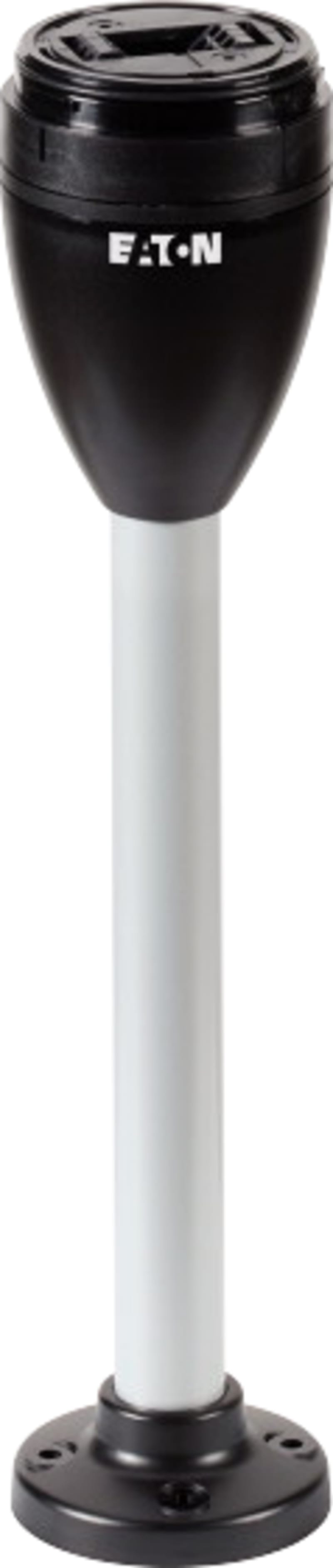

Base 250mm Aluminium Tube with Foot (SL7-CB-250)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Base 250mm Aluminium Tube with Foot (SL7-CB-250) is listed under Metals & Profiles / Bars, Plates & Profiles. Sales unit: pcs; Eaton catalogue number: 171444; Depth: 73 mm; Height: 334 mm; Width: 73 mm; Weight: 0.323 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-CB-250
- EAN / GTIN
- 4015081677740
- Sales unit
- pcs
- Eaton catalogue number
- 171444
- Depth
- 73 mm
- Height
- 334 mm
- Width
- 73 mm
- Weight
- 0.323 kg
- Certifications
- CE; UL Category Control No.: NKCR; UL 508; CSA Class No.: NKCR7; UL File No.: E29184; CSA-C22.2 No. 94-91; IEC/EN 60947-5-1; CSA-C22.2 No. 14-10; UL report applies to both US and Canada; IEC/EN 60529; Certified by UL for use in Canada; UL
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 24 V AC/DC ± 10 %; 110/120 V AC ± 10 %; 230/240 V AC ± 10 %
- Color
- Other
- Fitted with
- Plastic foot; Cover; Aluminum tube
- Number of modules
- Max. 10 (with base for mounting on both sides); Max. 5; Max. 5 (with standard base)
- Connection to SmartWire-DT
- No
- Degree of protection
- IP66; NEMA 4; NEMA 13; NEMA 4X
- Mounting Method
- Floor; Horizontal; Bracket
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Tube length
- 250 mm
- Type
- Base module
- Terminal capacity (AWG)
- 24 - 14
- Terminal capacity (flexible with ferrule and plastic collar)
- 0.25 - 1.5 mm²
- Terminal capacity (solid/flexible)
- 0.13 - 2.5 mm²
- Suitable for tube mounting
- No
- Suitable for angle mounting
- Yes
- Suitable for AS interface
- No
- Connection type auxiliary circuit
- Spring clamp connection
- Suitable for M12 connector
- No
- Suitable for IO link
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 4015081677740
- SAP 1000492326
- Code 8818917
Product Documentation
More from Eaton
Eaton
Eaton NZMH2-4-AX160 Molded-Case Circuit Breaker 4-Pole 160A 150KA
Eaton
Eaton FAZ-D7/3 Miniature Circuit Breaker — 3P, Type D, 7 A, 15 kA
Eaton

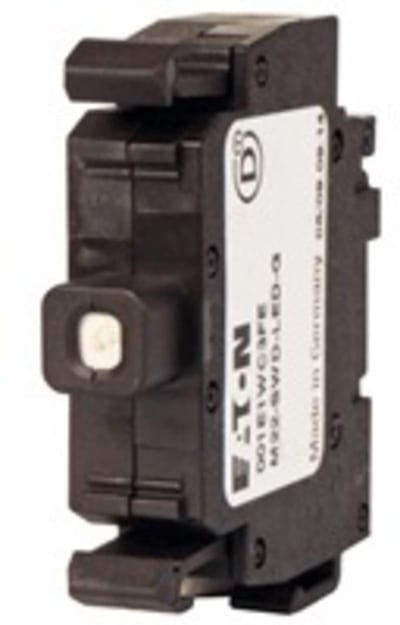

SmartWire-DT LED Element, Front Mounting, Red
M22-SWD-LED-R
Eaton

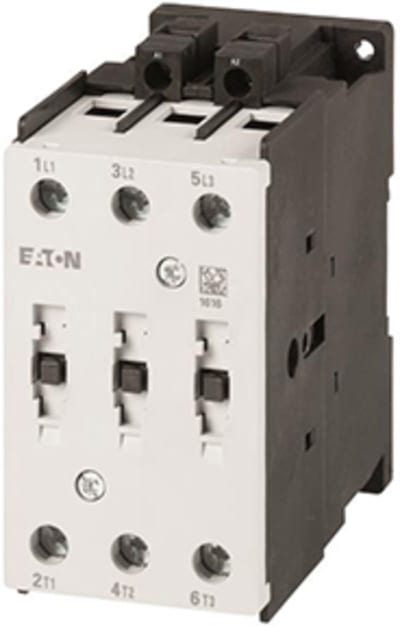

Eaton Contactor 3-Pole 18.5 kW, 230 V AC (DILMT40(230V50HZ/240V60HZ))
Eaton

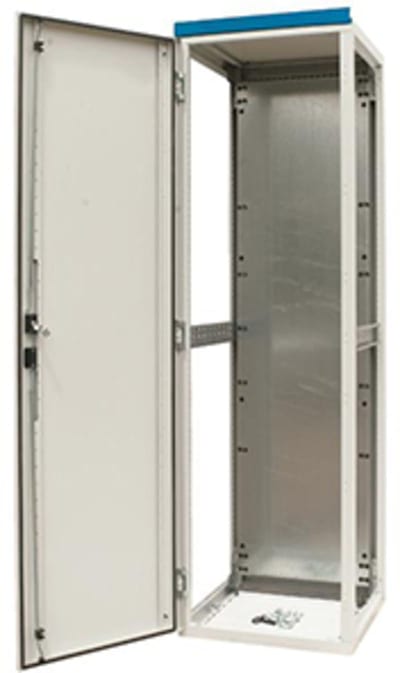

Cabinet H×W×D=1800X800X400MM (XVTL-MP/BX/IC-8/4/18)
Eaton

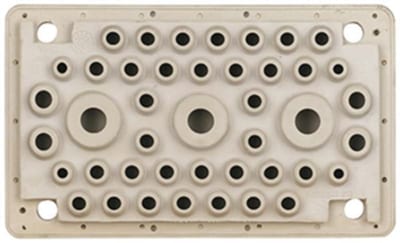

Flange UFK2 rubber xE
Eaton

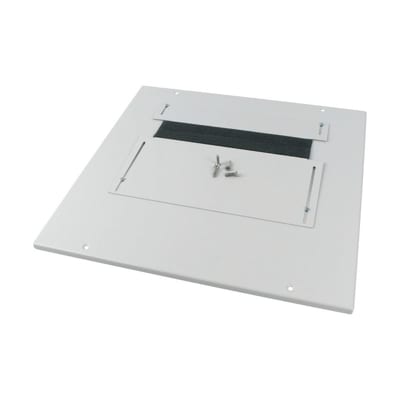

Top/bottom plate splitt IP30 B1 (XSPBM1206)
