Eaton

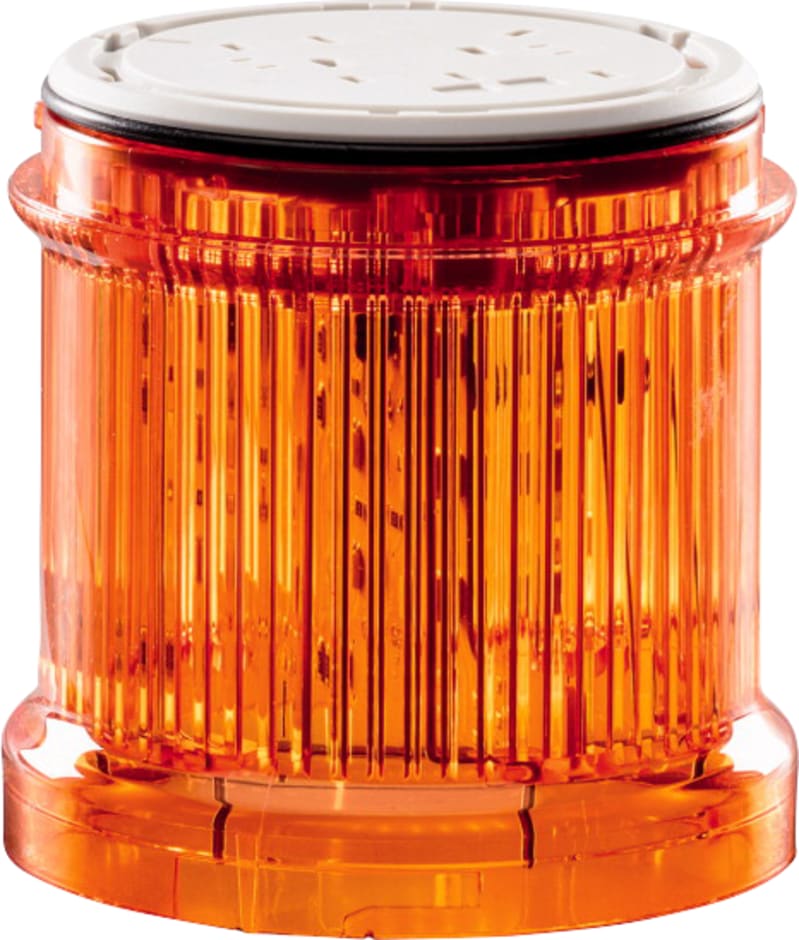

Steady light Orange, U. Lamp (SL7-L-A)
Part numberSL7-L-AEAN / GTIN4015081677696HS code8531.80
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Steady light Orange, U. Lamp (SL7-L-A) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 171438; Depth: 73 mm; Height: 73 mm; Width: 73 mm; Weight: 0.075 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-L-A
- EAN / GTIN
- 4015081677696
- Sales unit
- pcs
- Eaton catalogue number
- 171438
- Depth
- 73 mm
- Height
- 73 mm
- Width
- 73 mm
- Weight
- 0.075 kg
- Certifications
- UL; Certified by UL for use in Canada; UL 508; UL Category Control No.: NKCR; UL File No.: E29184; CSA-C22.2 No. 94-91; CE; IEC/EN 60947-5-1; CSA-C22.2 No. 14-10; UL report applies to both US and Canada; CSA Class No.: NKCR7; IEC/EN 60529
- Catalog Notes
- Without light elements
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Leakage current
- 0.003 A
- Power consumption
- Max. 7 W with the specified voltages
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage (Ue) at AC - max
- 250 V
- Rated operational voltage (Ue) at AC - min
- 24 V
- Rated operational voltage (Ue) at DC - max
- 250 V
- Rated operational voltage (Ue) at DC - min
- 24 V
- Color
- Orange
- Enclosure color
- Black
- Functions
- Continuous light
- Light modules
- Filament lamp max. 7 W
- Number of modules
- Max. 5 (with standard base); Max. 10 (with base for mounting on both sides)
- Connection to SmartWire-DT
- No
- Degree of protection
- NEMA 13; IP66
- Lifespan, electrical
- 3,000 h
- Light type
- Continuous light
- Material
- Enclosure: Polycarbonate (PC); Cap: Polycarbonate (PC)
- Mounting Method
- BA15d lamp socket
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Continuous light module
- Voltage type
- AC/DC
- Colour
- Orange
- Outer diameter
- 73 mm
- Housing colour
- Black
- Lamp type
- None
- Operating voltage AC 50 Hz
- 24–250 V
- Operating voltage AC 60 Hz
- 24–250 V
- Operating voltage DC
- 24–250 V
- Repetition frequency settable
- No
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081677696
- SAP 1000492315
- Code 8951745
Product Documentation
Document preview: Konst.Lys Orange, U. Lamp (SL7-L-A) — Specification Data Sheet (OEM)
