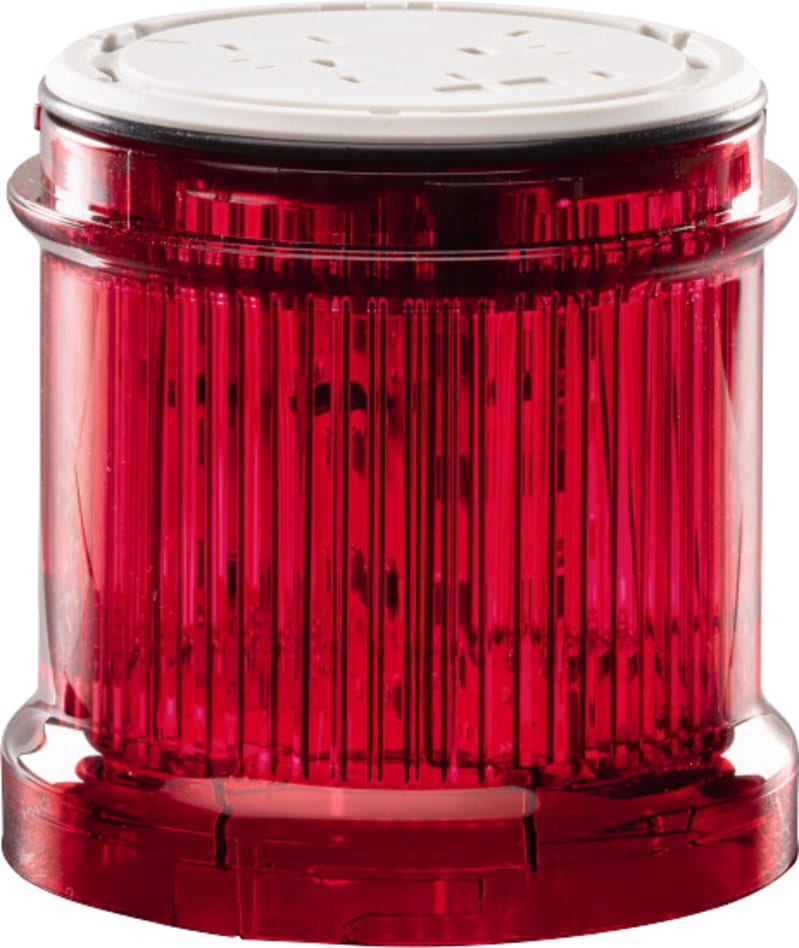

Led MultiStrobe Red 24V, HP
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Led MultiStrobe Red 24V, HP (part number SL7-FL24-R-HPM) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 171277; Depth: 73 mm; Height: 73 mm; Width: 73 mm; Weight: 0.089 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-FL24-R-HPM
- EAN / GTIN
- 4015081678075
- Sales unit
- pcs
- Eaton catalogue number
- 171277
- Depth
- 73 mm
- Height
- 73 mm
- Width
- 73 mm
- Weight
- 0.089 kg
- Certifications
- CE; IEC/EN 60947-5-1; UL File No.: E29184; CSA Class No.: NKCR7; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; CSA-C22.2 No. 14-10; IEC/EN 60529; UL report applies to both US and Canada; Certified by UL for use in Canada; UL 508; UL
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage (Ue) at AC - max
- 26 V
- Rated operational voltage (Ue) at AC - min
- 18 V
- Rated operational voltage (Ue) at DC - max
- 30 V
- Rated operational voltage (Ue) at DC - min
- 18 V
- Color
- Red
- Enclosure color
- Black
- Functions
- Flash light
- Light modules
- High Performance LED
- Number of modules
- Max. 5 (with standard base); Max. 10 (with base for mounting on both sides)
- Connection to SmartWire-DT
- No
- Current consumption
- max. 130 mA at 24 V AC/DC
- Degree of protection
- NEMA 4; IP66
- Flashing frequency
- 1 - 2.6 Hz
- Lifespan, electrical
- 50,000 h
- Light type
- Multistrobe light
- Material
- Cap: Polycarbonate (PC); Enclosure: Polycarbonate (PC)
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Type
- High-performance LED for maximum signaling effect Multi-strobe light module
- Voltage type
- AC/DC
- Colour
- Red
- Outer diameter
- 73 mm
- Housing colour
- Black
- Lamp type
- LED
- Operating voltage AC 50 Hz
- 18–26 V
- Operating voltage AC 60 Hz
- 18–26 V
- Operating voltage DC
- 18–30 V
- Repetition frequency settable
- No
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081678075
- SAP 1000492306
- Code 8951714
Product Documentation
More from Eaton
Eaton
P3 Main switch, 80 A,4 pole, Form I5/SVB (1414087)
Eaton
Eaton FAZT-B1/1 Miniature Circuit Breaker — 1P, Type B, 1 A, 25 kA
Eaton
Eaton NZMH1-A40 Molded-Case Circuit Breaker 3-Pole 40A 100KA
Eaton
Eaton Overload relay, Ir= 200 - 250 A, 1 N/O, 1 N/C, for use with: DILM185A, DILM225A
Z5-250/FF225A
Eaton
Dreiretningsvender 3P (T5-3-7/E)
Eaton
Cabinet H×W×D=1800X1200X400MM (XVTL-MP/BX/IC-12/4/18)
Eaton
Cover SL-internsammenconnection (XSMLV-I-CH10)
Eaton
Mounting Frame EMA69B
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
