Eaton

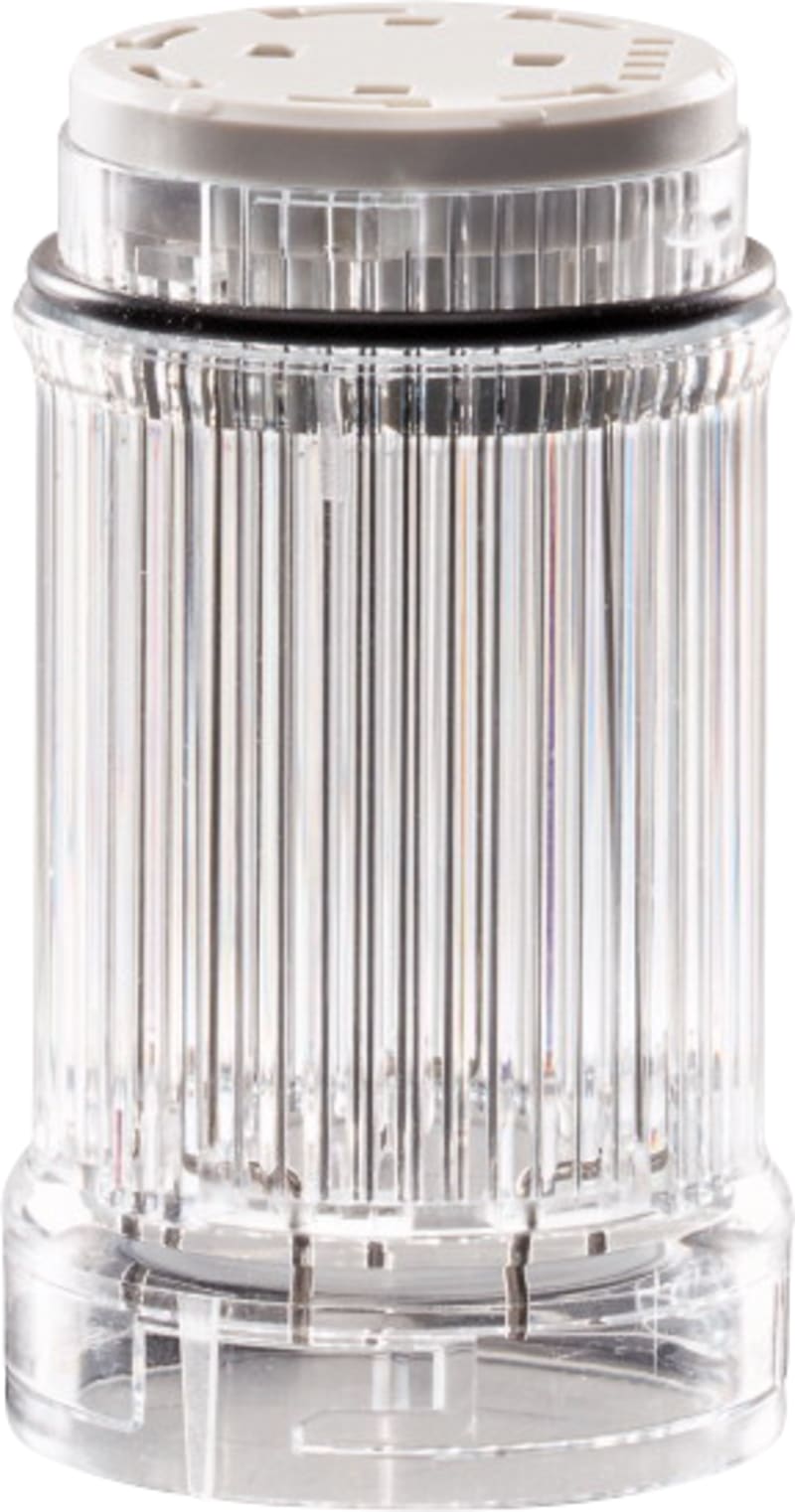

LED Strobe light, White, 230V (SL4-FL230-W)
Part numberSL4-FL230-WEAN / GTIN4015081679010HS code8531.80
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED Strobe light, White, 230V (SL4-FL230-W) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 171370; Depth: 43 mm; Height: 75 mm; Width: 43 mm; Weight: 0.044 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL4-FL230-W
- EAN / GTIN
- 4015081679010
- Sales unit
- pcs
- Eaton catalogue number
- 171370
- Depth
- 43 mm
- Height
- 75 mm
- Width
- 43 mm
- Weight
- 0.044 kg
- Certifications
- IEC/EN 60947-5-1; CSA-C22.2 No. 14-10; IEC/EN 60529; CSA Class No.: NKCR7; UL; CE; UL 508; UL report applies to both US and Canada; UL File No.: E29184; UL Category Control No.: NKCR; Certified by UL for use in Canada; CSA-C22.2 No. 94-91
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage (Ue) at AC - max
- 240 V
- Rated operational voltage (Ue) at AC - min
- 230 V
- Color
- Other
- Enclosure color
- Black
- Functions
- Flash light
- Light modules
- LED
- Number of modules
- Max. 10 (with base for mounting on both sides); Max. 5 (with standard base)
- Connection to SmartWire-DT
- No
- Current consumption
- 20 mA at 230/240 V AC
- Degree of protection
- IP66; NEMA 4X
- Flashing frequency
- 1.4 Hz
- Lifespan, electrical
- 100,000 h
- Light type
- Strobe light
- Material
- Cap: Polycarbonate (PC); Enclosure: Polycarbonate (PC)
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Strobe light module
- Voltage type
- AC
- Outer diameter
- 43 mm
- Housing colour
- Black
- Lamp type
- LED
- Operating voltage AC 50 Hz
- 230–240 V
- Operating voltage AC 60 Hz
- 230–240 V
- Repetition frequency settable
- No
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081679010
- SAP 1000489713
- Code 8936929
Product Documentation
Document preview: LED StrobeLys, White, 230V (SL4-FL230-W) — Specification Data Sheet (OEM)
More from Eaton
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SL4-FL230-W?
- SL4-FL230-W can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is SL4-FL230-W.
- What is the HS code for SL4-FL230-W?
- The customs tariff (HS) code for SL4-FL230-W is 8531.80.
- Who manufactures SL4-FL230-W?
- SL4-FL230-W is a Eaton product in the Control & Automation range.
- Is a datasheet available for SL4-FL230-W?
- Yes — the SL4-FL230-W datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SL4-FL230-W?
- The minimum order quantity is 1.
- Is SL4-FL230-W available?
- Yes — SL4-FL230-W is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
