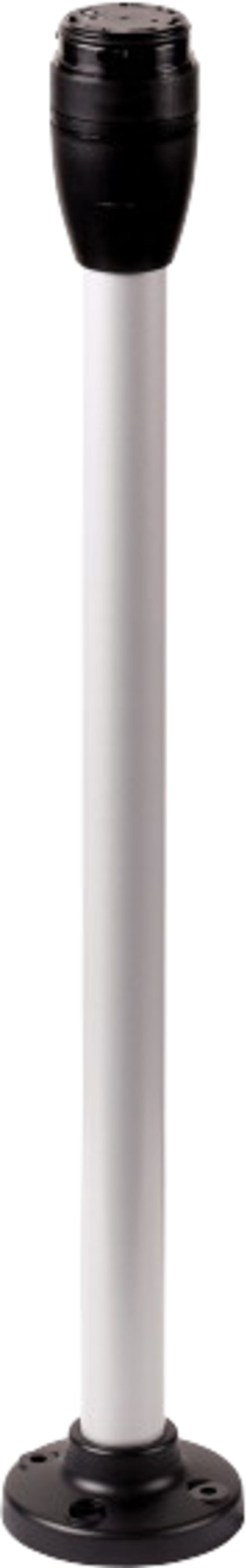

Base 400mm Aluminium Tube with Foot (SL4-PIB-400)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Base 400mm Aluminium Tube with Foot (SL4-PIB-400) is listed under Metals & Profiles / Bars, Plates & Profiles. Sales unit: pcs; Eaton catalogue number: 171299; Depth: 72 mm; Height: 452 mm; Width: 72 mm; Weight: 0.214 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL4-PIB-400
- EAN / GTIN
- 4015081678426
- Sales unit
- pcs
- Eaton catalogue number
- 171299
- Depth
- 72 mm
- Height
- 452 mm
- Width
- 72 mm
- Weight
- 0.214 kg
- Certifications
- Certified by UL for use in Canada; UL 508; UL Category Control No.: NKCR; CSA Class No.: NKCR7; UL report applies to both US and Canada; CSA-C22.2 No. 14-10; CE; UL File No.: E29184; IEC/EN 60947-5-1; CSA-C22.2 No. 94-91; UL; IEC/EN 60529
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 110/120 V AC ± 10 %; 230/240 V AC ± 10 %; 24 V AC/DC ± 10 %
- Color
- Other
- Fitted with
- Aluminum tube; Plastic foot; Cover
- Number of modules
- Max. 5; Max. 10 (with base for mounting on both sides); Max. 5 (with standard base)
- Connection to SmartWire-DT
- No
- Degree of protection
- IP66; NEMA 4X; NEMA 4; NEMA 13
- Mounting Method
- Horizontal; Floor; Bracket
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Tube length
- 400 mm
- Type
- Base module
- Terminal capacity (AWG)
- 24 - 16
- Terminal capacity (flexible with ferrule and plastic collar)
- 0.25 - 0.75 mm²
- Terminal capacity (solid/flexible with ferrule)
- 0.25 - 1.5 mm²
- Terminal capacity (solid/flexible)
- 0.2 - 1.5 mm²
- Suitable for tube mounting
- No
- Suitable for angle mounting
- Yes
- Suitable for AS interface
- No
- Connection type auxiliary circuit
- Spring clamp connection
- Suitable for M12 connector
- No
- Suitable for IO link
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 4015081678426
- SAP 1000489733
- Code 8603064
Product Documentation
More from Eaton
Eaton
Position Switch LS-S11S/RL
Eaton
Mounting Kit PDE1 H H200 B400 xE Basic
EP-502381
Eaton
Front, transparent, lockable (D250-CI44-DVZ)
Eaton
Eaton FAZ-Z13/1 Miniature Circuit Breaker — 1P, Type Z, 13 A, 15 kA
Eaton
Plinth xE Light (XLSPH2124)
Eaton

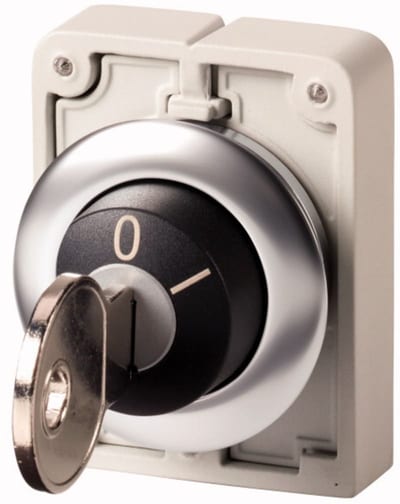

Key switch, Flat Front (M30C-FWRS-MS10-A1)
Eaton
Eaton FAZT-C6/1 Miniature Circuit Breaker — 1P, Type C, 6 A, 25 kA
Eaton

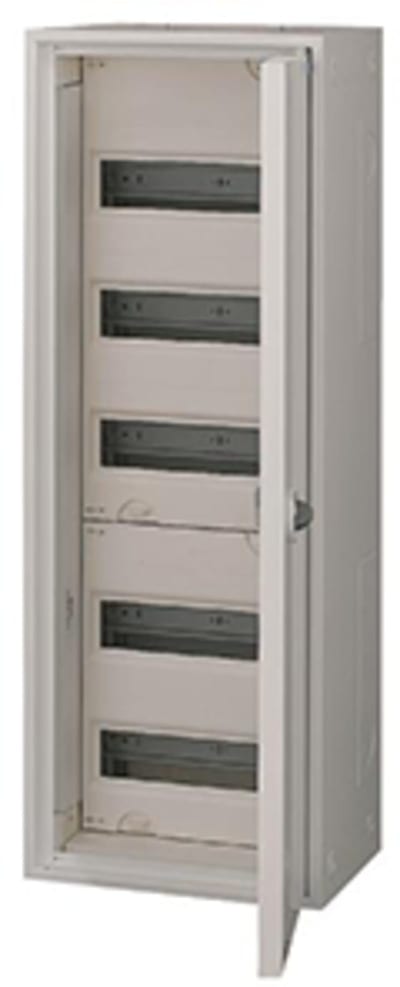

Wall-mount cabinet EWK 60 mod H800 B300 D225
