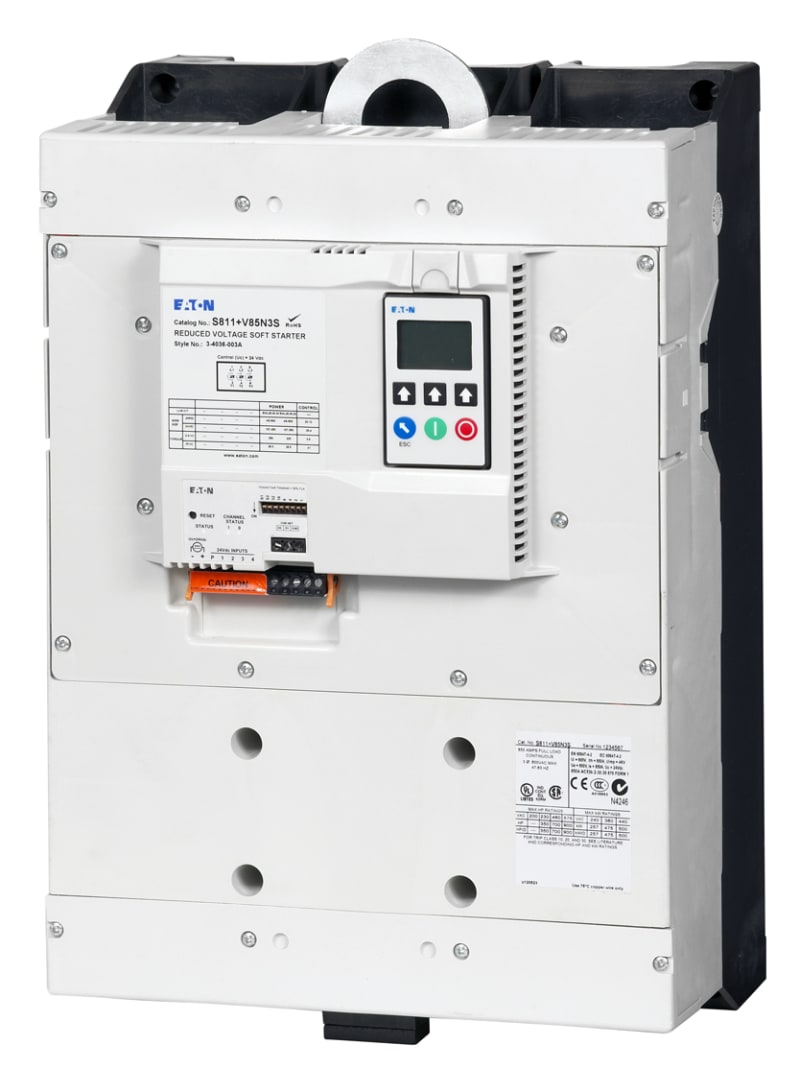

Soft starter S811+, 720A, 690V

Eaton Soft starter S811+, 720A, 690V (part number S811+V72V3S) is listed under Drives & Controllers / Soft Starters. Sales unit: pcs; Eaton catalogue number: 169007; Depth: 187.8 mm; Height: 420.8 mm; Width: 280.6 mm; Weight: 41.4 kg.

Manufacturer part number (MPN)

S811+V72V3S

EAN / GTIN

4015081655014

Sales unit

pcs

Eaton catalogue number

169007

Depth

187.8 mm

Height

420.8 mm

Width

280.6 mm

Weight

41.4 kg

Certifications

C-Tick; GB14048; CCC; CSA22.2-14-1995; UL; UL 508; UL File No.: E202571; CE; CSA; IEC/EN 60947-4-2; UL Category Control No.: NMFT

Altitude

Max. 2000 m; Above 2000 m with 0.5 % derating per 100 m

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-30 °C

Ambient storage temperature - min

-50 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-3

Current consumption

150 mA, Control circuit, Digital inputs, External 24 V; 1400 mA, Control circuit, Regulator supply; 10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC; 100 mA, Control circuit, Digital inputs, External 24 V (no-load)

Drop-out time

100 ms, DC operated

Drop-out voltage

0 - 3 V, DC operated

Pick-up time

100 ms at DC

Pick-up voltage

21.6 - 26.4 V DC

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Equipment heat dissipation, current-dependent Pvid

25 W

Rated operational current for specified heat dissipation (In)

720 A

Static heat dissipation, non-current-dependent Pvs

25 W

Fault memory

10 Faults

Fitted with

Internal bypass; Internal bypass contacts; Motor overload protection; Display

Functions

Single direction; Soft start function; Potential isolation between power and control sections; Current limitation; Underload monitoring; Min. ramp time 1 s - fast switching (semiconductor contactor); Overload monitoring; Suppression of DC components for motors; Suppression of closing transients

Interfaces

Modbus RTU (built-in)

Class

Adjustable

Connection to SmartWire-DT

No

Degree of protection

IP20; NEMA Other

Frame size

V

Mains voltage - max

690 V

Mains voltage - min

200 V

Mounting position

As required

Overvoltage category

II

Pollution degree

3

Radio interference class

Class A (EN 55011)

Rated impulse withstand voltage (Uimp)

4000 V

Shock resistance

15 g, Mechanical

Startup class

CLASS 30 (6 x Iₑ for 30 s); CLASS 20 (heavy starting duty 3 x Iₑ for 45 s); CLASS 10 (star-delta replacement)

Suitable for

Branch circuits, not as BCPD, (UL/CSA)

Type

Soft starter for three-phase loads, with control unit and pump algorithm, for 690-V grids

Voltage type

DC

Input current

4 - 20 mA (Analog inputs)

Number of inputs

1 (current input)

Number of outputs

2 Relay Outputs (programmable)

Output voltage

120 V AC/DC (relay outputs)

Protection

Finger and back-of-hand proof, Protection against direct contact

Rated control voltage (Uc)

24 V DC; 24 V DC (-10 %/+10 %)

Rated operational current (Ie) at AC-11

3 A

Overload cycle

AC-53a: 4.0 - 32: 99 - 3

Rated operational current (Ie) at AC-53

720 A

Rated operational voltage (Ue) - max

690 V

Rated operational voltage (Ue) - min

200 V

Short-circuit protection rating

NZMN4-ME875, Type “1” coordination, Main conducting paths

Supply frequency

50/60 Hz, fLN, Main circuit

Voltage rating - max

690 V

Assigned motor power at 200/208 V, 60 Hz, 3-phase

200 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

600 HP

Assigned motor power at 600 V, 60 Hz, 3-phase

750 HP

Assigned motor power at 690 V, 60 Hz, 3-phase

750 HP

Assigned motor power in-delta at 690 V, 60 Hz

1300 HP

Rated operational power at 220/230 V, 50 Hz

250 kW

Rated operational power at 400 V, 50 Hz

400 kW

Rated operational power at 500 V, 50 Hz

500 kW

Rated operational power at 690 V, 50 Hz

630 kW

Application

3-phase motors: Yes Soft starting of three-phase asynchronous motors

Delay time

0 - 120 s, Soft start function, Ramp times

Kickstart

100% (Kickstart voltage); Max. 2000 ms (Kickstart Duration)

Ramp/run-up time

360 s

Start voltage

Max. 85 %, Soft start function, Start voltage = turn-off voltage

Screwdriver size

0.6 x 3.5 mm, Terminal screws, Control circuit cables

Terminal capacity (flexible with ferrule)

2 x (1 - 2.5) mm², Control circuit cables; 4 x (70 - 240) mm², Main cables; 6 x (120 - 240) mm², Main cables; 1 x (2.5 - 4) mm², Control circuit cables; 2 x (120 - 240) mm², Main cables

Terminal capacity (solid)

2 x (1 - 2.5) mm², Control circuit cables; 4 x (70 - 240) mm², Main cables; 2 x (120 - 240) mm², Main cables; 1 x (2.5 - 4) mm², Control circuit cables; 6 x (120 - 240) mm², Main cables

Terminal capacity (solid/stranded AWG)

6 x (4 - 500 kcmil), Main cables; 4 x (4 - 500 kcmil), Main cables; 2 x (14 - 12), Control circuit cables; 1 x (14 - 12), Control circuit cables; 2 x (4 - 500 kcmil), Main cables

Terminal capacity (stranded)

6 x (120 - 240) mm², Main cables; 4 x (70 - 240) mm², Main cables; 1 x (2.5 - 4) mm², Control circuit cables; 2 x (1 - 2.5) mm², Control circuit cables; 2 x (120 - 240) mm², Main cables

Tightening torque

0.4 Nm, Screw terminals, Control circuit cables

With display

Yes

Rated operating voltage Ue

200–690 V

Rated control supply voltage DC

24 V

Release class

Adjustable

Rated operation current Ie at 40 °C Tu

720 A

Rated power three-phase motor, inline, at 230 V

200 kW

Rated power three-phase motor, inline, at 400 V

400 kW

Rated power three-phase motor, inside delta, at 230 V

200 kW

Rated power three-phase motor, inside delta, at 400 V

630 kW

Rated surrounding temperature without derating

50 °C

Integrated motor overload protection

Yes

Voltage type for actuating

DC

Internal bypass

Yes

Torque control

No

HS Code

8504.40
