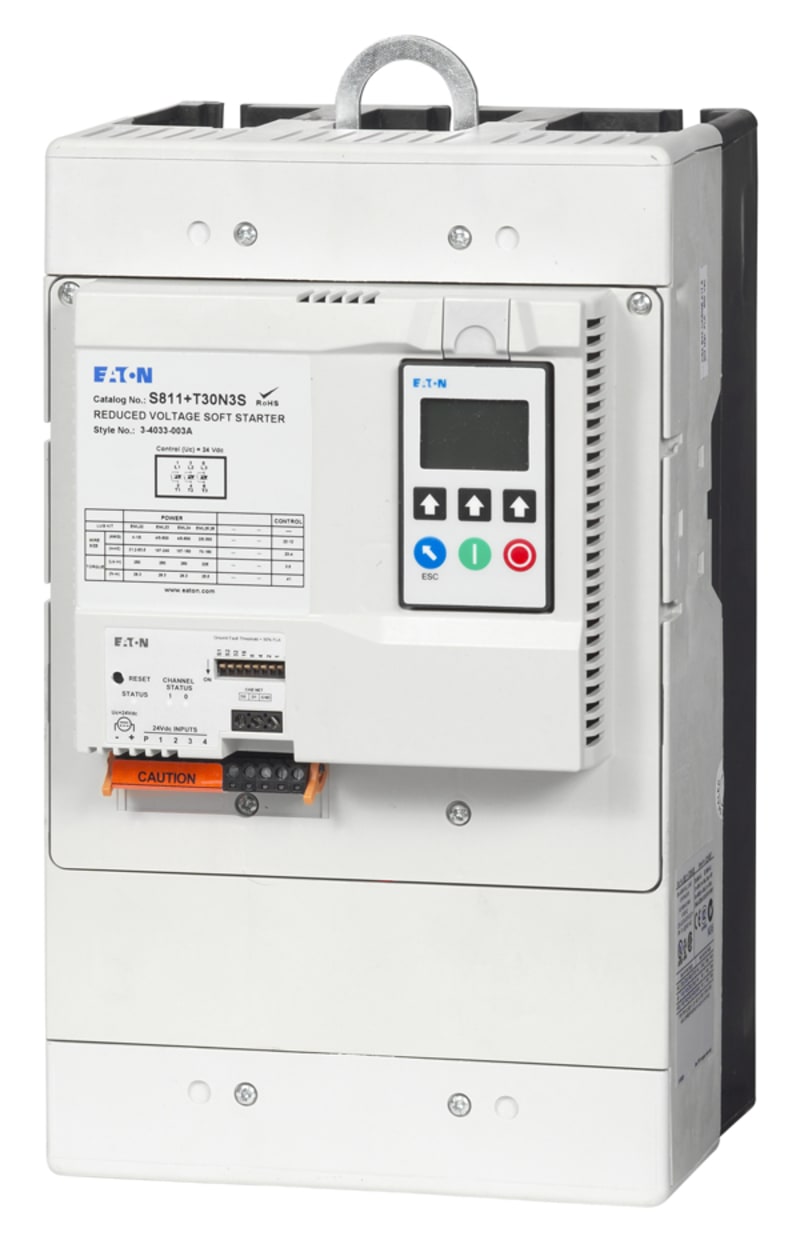

Soft starter S811+, 180A, 690V

Eaton Soft starter S811+, 180A, 690V (part number S811+T18V3S) is listed under Drives & Controllers / Soft Starters. Sales unit: pcs; Eaton catalogue number: 168986; Depth: 164.4 mm; Height: 322.9 mm; Width: 194.4 mm; Weight: 18.6 kg.

Manufacturer part number (MPN)

S811+T18V3S

EAN / GTIN

4015081654819

Sales unit

pcs

Eaton catalogue number

168986

Depth

164.4 mm

Height

322.9 mm

Width

194.4 mm

Weight

18.6 kg

Certifications

UL 508; C-Tick; UL File No.: E202571; UL; IEC/EN 60947-4-2; CCC; CE; GB14048; UL Category Control No.: NMFT; CSA; CSA22.2-14-1995

Altitude

Above 2000 m with 0.5 % derating per 100 m; Max. 2000 m

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-30 °C

Ambient storage temperature - min

-50 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-3

Current consumption

10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC; 150 mA, Control circuit, Digital inputs, External 24 V; 1000 mA, Control circuit, Regulator supply; 100 mA, Control circuit, Digital inputs, External 24 V (no-load)

Drop-out time

100 ms, DC operated

Drop-out voltage

0 - 3 V, DC operated

Pick-up time

100 ms at DC

Pick-up voltage

21.6 - 26.4 V DC

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Equipment heat dissipation, current-dependent Pvid

25 W

Rated operational current for specified heat dissipation (In)

180 A

Static heat dissipation, non-current-dependent Pvs

25 W

Fault memory

10 Faults

Fitted with

Motor overload protection; Internal bypass; Display; Internal bypass contacts

Functions

Overload monitoring; Soft start function; Suppression of closing transients; Suppression of DC components for motors; Min. ramp time 1 s - fast switching (semiconductor contactor); Potential isolation between power and control sections; Current limitation; Underload monitoring; Single direction

Interfaces

Modbus RTU (built-in)

Class

Adjustable

Connection to SmartWire-DT

No

Degree of protection

IP20; NEMA Other

Frame size

T

Mains voltage - max

690 V

Mains voltage - min

200 V

Mounting position

As required

Overvoltage category

II

Pollution degree

3

Radio interference class

Class A (EN 55011)

Rated impulse withstand voltage (Uimp)

4000 V

Shock resistance

15 g, Mechanical

Startup class

CLASS 30 (6 x Iₑ for 30 s); CLASS 10 (star-delta replacement); CLASS 20 (heavy starting duty 3 x Iₑ for 45 s)

Suitable for

Branch circuits, not as BCPD, (UL/CSA)

Type

Soft starter for three-phase loads, with control unit and pump algorithm, for 690-V grids

Voltage type

DC

Input current

4 - 20 mA (Analog inputs)

Number of inputs

1 (current input)

Number of outputs

2 Relay Outputs (programmable)

Output voltage

120 V AC/DC (relay outputs)

Protection

Finger and back-of-hand proof, Protection against direct contact

Rated control voltage (Uc)

24 V DC (-10 %/+10 %); 24 V DC

Rated operational current (Ie) at AC-11

3 A

Overload cycle

AC-53a: 4.0 - 32: 99 - 3

Rated operational current (Ie) at AC-53

180 A

Rated operational voltage (Ue) - max

690 V

Rated operational voltage (Ue) - min

200 V

Short-circuit protection rating

NZMN2-S200, Type “1” coordination, Main conducting paths

Supply frequency

50/60 Hz, fLN, Main circuit

Voltage rating - max

690 V

Assigned motor power at 200/208 V, 60 Hz, 3-phase

60 HP

Assigned motor power at 220/230 V, 60 Hz, 3-phase

60 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

150 HP

Assigned motor power at 600 V, 60 Hz, 3-phase

150 HP

Assigned motor power at 690 V, 60 Hz, 3-phase

200 HP

Assigned motor power in-delta at 690 V, 60 Hz

350 HP

Rated operational power at 220/230 V, 50 Hz

55 kW

Rated operational power at 400 V, 50 Hz

90 kW

Rated operational power at 500 V, 50 Hz

110 kW

Rated operational power at 690 V, 50 Hz

160 kW

Application

3-phase motors: Yes Soft starting of three-phase asynchronous motors

Delay time

0 - 120 s, Soft start function, Ramp times

Kickstart

100% (Kickstart voltage); Max. 2000 ms (Kickstart Duration)

Ramp/run-up time

360 s

Start voltage

Max. 85 %, Soft start function, Start voltage = turn-off voltage

Screwdriver size

0.6 x 3.5 mm, Terminal screws, Control circuit cables; 4 mm Hexagon socket-head screw, Terminal screw, Main cables

Terminal capacity (flexible with ferrule)

2 x (1 - 2.5) mm², Control circuit cables; 2 x (25 - 240) mm², Main cables; 1 x (2.5 - 4) mm², Control circuit cables; 1 x (70 - 240) mm², Main cables

Terminal capacity (solid)

1 x (2.5 - 4) mm², Control circuit cables; 2 x (25 - 240) mm², Main cables; 2 x (1 - 2.5) mm², Control circuit cables; 1 x (70 - 240) mm², Main cables

Terminal capacity (solid/stranded AWG)

2 x (14 - 12), Control circuit cables; 2 x (4 - 500 kcmil), Main cables; 1 x (14 - 12), Control circuit cables; 1 x (4 - 500 kcmil), Main cables

Terminal capacity (stranded)

2 x (25 - 240) mm², Main cables; 1 x (2.5 - 4) mm², Control circuit cables; 1 x (70 - 240) mm², Main cables; 2 x (1 - 2.5) mm², Control circuit cables

Tightening torque

25.5 Nm (≤ 150 mm²); 0.4 Nm, Screw terminals, Control circuit cables; 28.3 Nm (> 150 mm²)

With display

Yes

Rated operating voltage Ue

200–690 V

Rated control supply voltage DC

24 V

Release class

Adjustable

Rated operation current Ie at 40 °C Tu

180 A

Rated power three-phase motor, inline, at 230 V

55 kW

Rated power three-phase motor, inline, at 400 V

90 kW

Rated power three-phase motor, inside delta, at 230 V

90 kW

Rated power three-phase motor, inside delta, at 400 V

160 kW

Rated surrounding temperature without derating

50 °C

Integrated motor overload protection

Yes

Voltage type for actuating

DC

Internal bypass

Yes

Torque control

No

HS Code

8504.40
