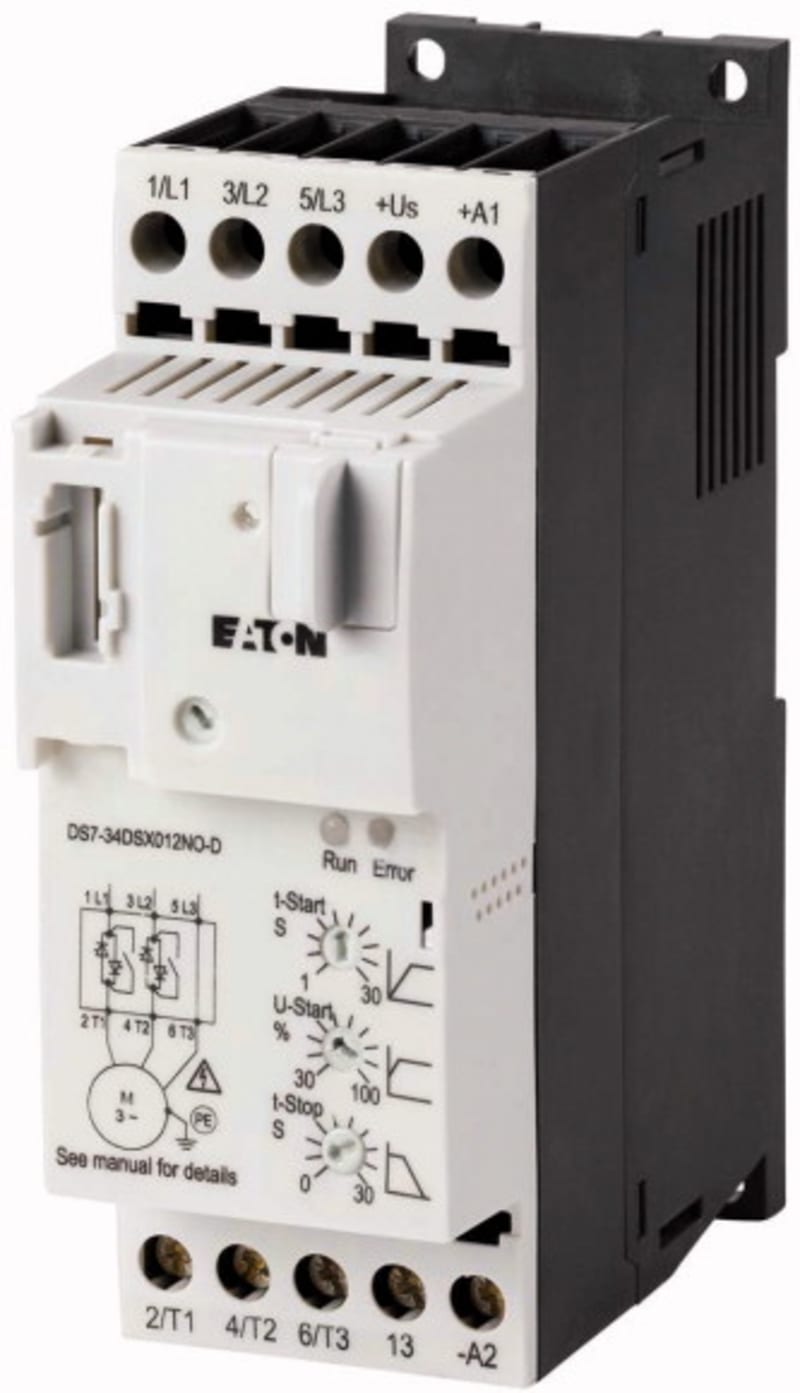

DS7 Soft starter, SWD, 4AMP

Eaton DS7 Soft starter, SWD, 4AMP (part number DS7-34DSX004N0-D) is listed under Drives & Controllers / Soft Starters. Sales unit: pcs; Eaton catalogue number: 134943; Depth: 103 mm; Height: 130 mm; Width: 45 mm; Weight: 0.35 kg.

Manufacturer part number (MPN)

DS7-34DSX004N0-D

EAN / GTIN

4015081317585

Sales unit

pcs

Eaton catalogue number

134943

Depth

103 mm

Height

130 mm

Width

45 mm

Weight

0.35 kg

Compliances

CE Marked

Certifications

UL 508; EN 60947-4-2; CSA Std. C22.2 No. 0-M91; CSA Std. C22.2 No. 14-05; IEC 60947-4-2; C-Tick; CSA22.2-14; CSA-C22.2 No 0-M91; CSA; UkrSEPRO; GB 14048.6; UL; IEC/EN 60947-4-2; CE; CSA-C22.2 No 14-05

Mounting position

Vertical

Shock resistance

8 g, 11 ms, Mechanical

Vibration resistance

2M2 to EN 60721-3-2

Altitude

Max. 2000 m; Above 1000 m with 1 % derating per 100 m

Ambient operating temperature - max

40 °C

Ambient storage temperature - max

60 °C

Ambient operating temperature - min

-5 °C

Ambient storage temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-3

Current consumption

1.6 mA, Control circuit, Digital inputs, External 24 V; 50 mA, Control circuit, Regulator supply

Drop-out time

350 ms, Control circuit, Digital Inputs, DC operated

Drop-out voltage

0 - 3 V, DC operated

Pick-up time

250 ms at DC

Pick-up voltage

17.3 - 27 V DC

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Equipment heat dissipation, current-dependent Pvid

0.2 W

Rated operational current for specified heat dissipation (In)

4 A

Static heat dissipation, non-current-dependent Pvs

0.2 W

Fault memory

8 Faults

Fitted with

Internal bypass; Internal bypass contacts

Functions

Suppression of closing transients; Single direction; Suppression of DC components for motors; Current limitation, with PKE; Potential isolation between power and control sections; Min. ramp time 1 s - fast switching (semiconductor contactor); Soft start function

Interfaces

SmartWire-DT (built-in)

Class

Other

Connection to SmartWire-DT

Yes

Degree of protection

IP20; NEMA 1

Frame size

FS1

Mains voltage - max

480 V

Mains voltage - min

200 V

Overvoltage category

II

Pollution degree

2

Product category

SmartWire-DT slave

Radio interference class

Class B (EN 55011)

Suitable for

Branch circuits, (UL/CSA)

Type

Soft starter for three-phase loads

Voltage type

DC

Number of outputs

1 Relay Output (TOR)

Output voltage

24 V DC

Protection

Finger and back-of-hand proof, Protection against direct contact

Rated control voltage (Uc)

24 V DC (-15 %/+10 %) or via SmartWire-DT; 24 V DC

Rated operational current (Ie) at AC-11

1 A

Overload cycle

AC-53a: 3 - 5: 75 - 10

Rated operational current (Ie) at AC-53

4 A

Rated operational voltage (Ue) - max

480 V

Rated operational voltage (Ue) - min

230 V

Short-circuit protection rating

PKM0-4 (+ CL-PKZ0), Type “1” coordination, Main conducting paths; 3 x 170M1359, Type „2“ coordination (additional with the fuses for coordination type „1“), Main conducting paths

Supply frequency

50/60 Hz, fLN, Main circuit

Voltage rating - max

480 V

Assigned motor power at 200/208 V, 60 Hz, 3-phase

0.75 HP

Assigned motor power at 220/230 V, 60 Hz, 3-phase

1 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

2 HP

Rated operational power at 220/230 V, 50 Hz

0.75 kW

Rated operational power at 400 V, 50 Hz

1.5 kW

Application

1-phase motors: No 3-phase motors: Yes Soft starting of three-phase asynchronous motors

Current limitation

(0 - 8) x Ie, Soft start function

Delay time

0 - 30 s, Soft start function, Ramp times

Ramp/run-up time

1 - 30 s

Start voltage

Min. 30 %, Soft start function, Start voltage = turn-off voltage; Max. 100 %, Soft start function, Start voltage = turn-off voltage

Screwdriver size

0.6 x 5.5 mm/1 x 6 mm, Terminal screws, Control circuit cables; PZ2, 1 x 6 mm, Terminal screw, Standard screwdriver

Terminal capacity (flexible with ferrule)

2 x (0.75 - 2.5) mm², Control circuit cables; 1 x (0.75 - 2.5) mm², Control circuit cables; 1 x (0.75 - 2.5) mm², Main cables; 2 x (0.75 - 2.5) mm², Main cables

Terminal capacity (solid)

1 x (0.75 - 4) mm², Control circuit cables; 1 x (0.75 - 4) mm², Main cables; 2 x (0.75 - 2.5) mm², Main cables; 2 x (0.75 - 2.5) mm², Control circuit cables

Terminal capacity (solid/stranded AWG)

18 - 10, Main cables; 18 - 10, Control circuit cables

Tightening torque

1.2 Nm; 1.2 Nm, Screw terminals, Control circuit cables

With display

No

Rated operating voltage Ue

230–460 V

Rated control supply voltage DC

24 V

Rated operation current Ie at 40 °C Tu

4 A

Rated power three-phase motor, inline, at 230 V

0.75 kW

Rated power three-phase motor, inline, at 400 V

1.5 kW

Rated surrounding temperature without derating

40 °C

Integrated motor overload protection

No

Voltage type for actuating

DC

Internal bypass

Yes

Torque control

No

Country of origin

United Kingdom

HS Code

8537.10
