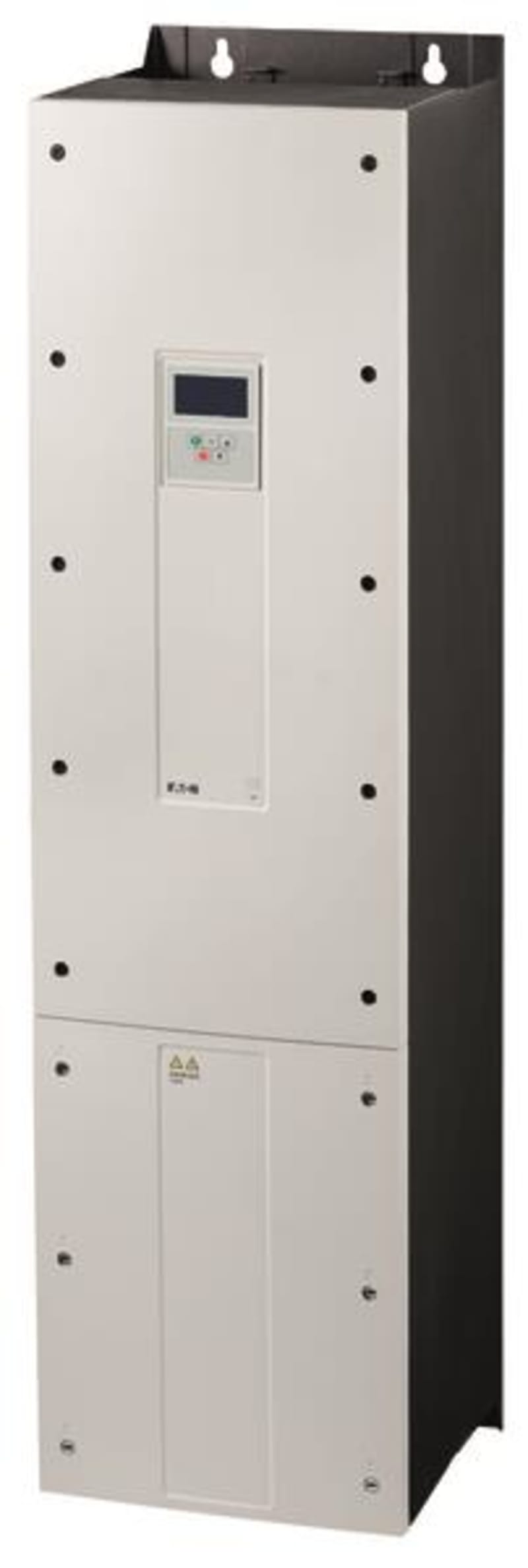

DA1 variable-frequency drive, 3-3 400V, 132 kW

Eaton DA1 variable-frequency drive, 3-3 400V, 132 kW (part number DA1-34240FB-B55C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 169407; Depth: 341 mm; Height: 1280 mm; Width: 330 mm.

Manufacturer part number (MPN)

DA1-34240FB-B55C

EAN / GTIN

4015081658473

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

169407

Depth

341 mm

Height

1280 mm

Width

330 mm

Weight

80 kg

Catalog Notes

The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.

Apparent power at 400 V

166.28 kVA

Apparent power at 480 V

199.53 kVA

Braking resistance

6 Ω

Braking torque

Max. 100 % of rated operational current Ie, variable, DC - Main circuit; Max. 100 % of rated operational current Ie with external braking resistor - Main circuit; Max. 30 % MN, Standard - Main circuit

Switch-on threshold for the braking transistor

780 VDC

Altitude

Max. 4000 m; Max. 1000 m; Above 1000 m with 1 % derating per 100 m

Ambient operating temperature - max

40 °C

Ambient storage temperature - max

60 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

40 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 average relative humidity (RH), no condensation, no corrosion

Number of inputs (analog)

2

Number of inputs (digital)

5

Number of outputs (analog)

2

Number of outputs (digital)

2

Number of relay outputs

2 (parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))

Rated control voltage (Uc)

24 V DC (external, max. 100 mA)

Equipment heat dissipation, current-dependent Pvid

2376 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

240 A

Static heat dissipation, non-current-dependent Pvs

0 W

Communication interface

OP-Bus (RS485), built in; DeviceNet, optional; Modbus-TCP, optional; PROFIBUS, optional; Modbus RTU, built in; PROFINET, optional; Ethernet IP, optional; EtherCAT, optional; SmartWire-DT, optional; CANopen®, built in

Connection to SmartWire-DT

In conjunction with DX-NET-SWD1 SmartWire DT module; Yes

Degree of protection

NEMA 12; IP55

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Fitted with

Control unit; PC connection; Additional PCB protection; Radio interference suppression filter; Internal DC link; Brake chopper; DC link choke; IGBT inverter; OLED display; Breaking resistance

Frame size

FS7

Functions

4-quadrant operation possible

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Protocol

CAN; MODBUS; EtherNet/IP; PROFINET IO; DeviceNet; PROFIBUS; Other bus systems; TCP/IP

Radio interference class

Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments; C2

C3

depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.

Safety function/level

STO (Safe Torque Off, SIL2, PLc Cat 2)

Suitable for

Branch circuits, (UL/CSA)

Efficiency

98.2 % (η)

Heat dissipation at current/speed

1000 W at 50% current and 0% speed; 1300 W at 50% current and 50% speed; 1500 W at 50% current and 90% speed; 1750 W at 100% current and 0% speed; 2340 W at 100% current and 50% speed; 2700 W at 100% current and 90% speed; 590 W at 25% current and 0% speed; 900 W at 25% current and 50% speed

Input current ILN at 150% overload

244.5 A

Leakage current at ground IPE - max

4.75 mA

Mains switch-on frequency

Maximum of one time every 30 seconds

Mains voltage - max

480 V

Mains voltage - min

380 V

Operating mode

Optional: Vector control with feedback (CLV); Speed control with slip compensation; Sensorless vector control (SLV); U/f control

Output frequency - max

500 Hz

Output frequency - min

0 Hz

Output voltage (U2)

400 V AC, 3-phase; 480 V AC, 3-phase

Overload current IL at 150% overload

360 A

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

62 Hz

Rated frequency - min

48 Hz

Rated operational current (Ie) at 150% overload

240 A

Rated operational power at 380/400 V, 50 Hz

3-phase

132 kW

Rated operational voltage

400 V AC, 3-phase; 480 V AC, 3-phase

Resolution

0.1 Hz (Frequency resolution, setpoint value)

Short-circuit protection rating

350 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring

Starting current - max

200 %, IH, max. starting current (High Overload), for 4 seconds every 40 seconds, Power section

Supply frequency

50/60 Hz

Switching frequency

4 kHz, 4 - 12 kHz adjustable (audible), fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

480 VAC

Assigned motor current IM at 400 V, 50 Hz

150% overload

231 A

Assigned motor current IM at 440 - 480 V, 60 Hz

150% overload

240 A

Assigned motor power at 460/480 V, 60 Hz

3-phase

200 HP

HS Code

8504.40
