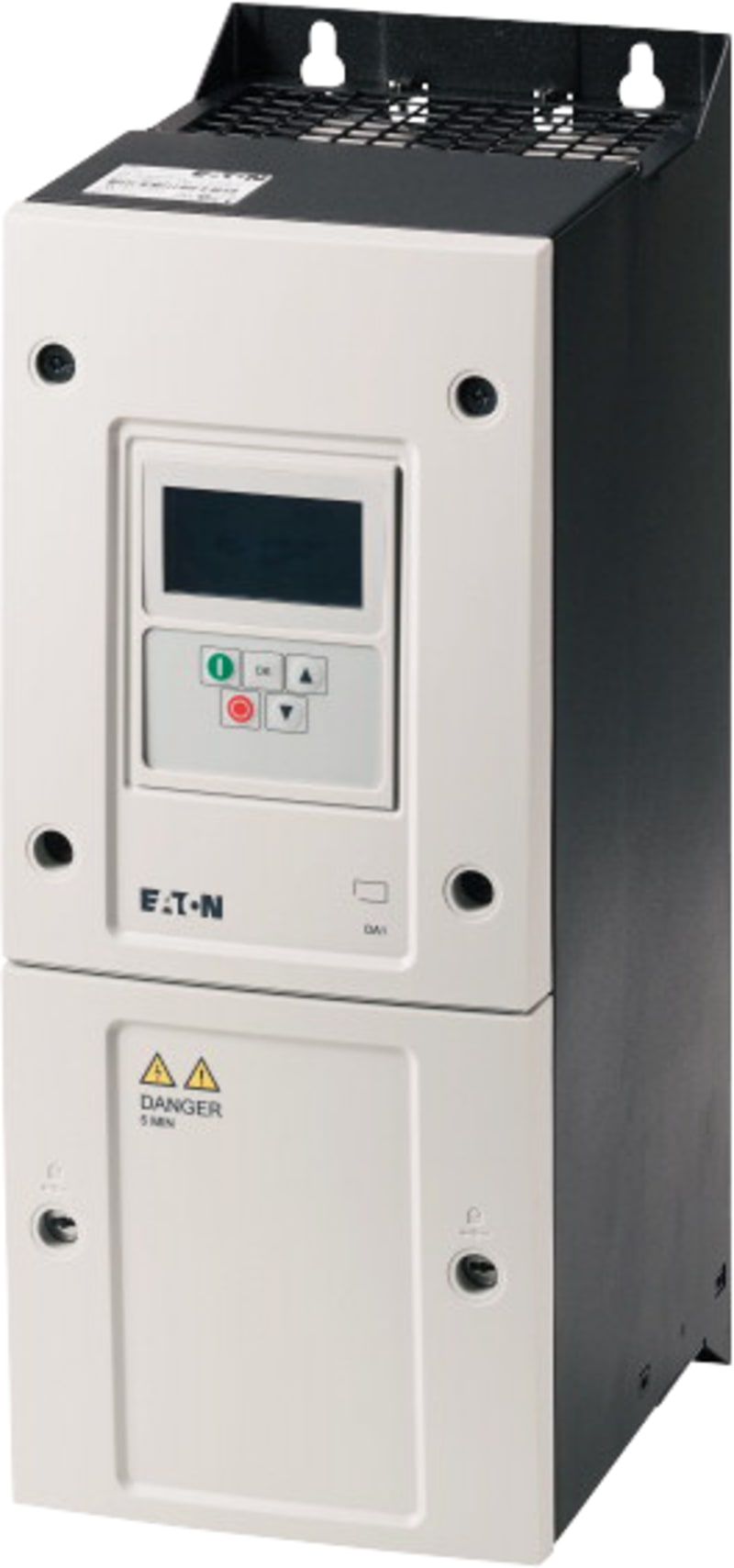

DA1 variable-frequency drive, 3-3 400V, 110 kW

Eaton DA1 variable-frequency drive, 3-3 400V, 110 kW (part number DA1-34202FB-B55C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 169405; Depth: 341 mm; Height: 1280 mm; Width: 330 mm.

Manufacturer part number (MPN)

DA1-34202FB-B55C

EAN / GTIN

4015081658459

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

169405

Depth

341 mm

Height

1280 mm

Width

330 mm

Weight

80 kg

Catalog Notes

The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.

Apparent power at 400 V

139.95 kVA

Apparent power at 480 V

167.94 kVA

Braking resistance

6 Ω

Braking torque

Max. 100 % of rated operational current Ie with external braking resistor - Main circuit; Max. 30 % MN, Standard - Main circuit; Max. 100 % of rated operational current Ie, variable, DC - Main circuit

Switch-on threshold for the braking transistor

780 VDC

Altitude

Max. 4000 m; Above 1000 m with 1 % derating per 100 m; Max. 1000 m

Ambient operating temperature - max

40 °C

Ambient storage temperature - max

60 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

40 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 average relative humidity (RH), no condensation, no corrosion

Number of inputs (analog)

2

Number of inputs (digital)

5

Number of outputs (analog)

2

Number of outputs (digital)

2

Number of relay outputs

2 (parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))

Rated control voltage (Uc)

24 V DC (external, max. 100 mA)

Equipment heat dissipation, current-dependent Pvid

2090 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

202 A

Static heat dissipation, non-current-dependent Pvs

0 W

Communication interface

Ethernet IP, optional; PROFIBUS, optional; Modbus-TCP, optional; OP-Bus (RS485), built in; CANopen®, built in; EtherCAT, optional; Modbus RTU, built in; SmartWire-DT, optional; DeviceNet, optional; PROFINET, optional

Connection to SmartWire-DT

Yes; In conjunction with DX-NET-SWD1 SmartWire DT module

Degree of protection

NEMA 12; IP55

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Fitted with

IGBT inverter; Breaking resistance; Brake chopper; Radio interference suppression filter; Control unit; OLED display; DC link choke; Internal DC link; Additional PCB protection; PC connection

Frame size

FS7

Functions

4-quadrant operation possible

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Protocol

CAN; MODBUS; DeviceNet; PROFIBUS; EtherNet/IP; PROFINET IO; Other bus systems; TCP/IP

Radio interference class

C2

C3

depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.; Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments

Safety function/level

STO (Safe Torque Off, SIL2, PLc Cat 2)

Suitable for

Branch circuits, (UL/CSA)

Efficiency

98.1 % (η)

Heat dissipation at current/speed

1000 W at 50% current and 50% speed; 1200 W at 50% current and 90% speed; 150 W at 100% current and 0% speed; 2200 W at 100% current and 50% speed; 2400 W at 100% current and 90% speed; 600 W at 25% current and 0% speed; 700 W at 25% current and 50% speed; 900 W at 50% current and 0% speed

Input current ILN at 150% overload

210.8 A

Leakage current at ground IPE - max

4.75 mA

Mains switch-on frequency

Maximum of one time every 30 seconds

Mains voltage - max

480 V

Mains voltage - min

380 V

Operating mode

Sensorless vector control (SLV); Optional: Vector control with feedback (CLV); Speed control with slip compensation; U/f control

Output frequency - max

500 Hz

Output frequency - min

0 Hz

Output voltage (U2)

400 V AC, 3-phase; 480 V AC, 3-phase

Overload current IL at 150% overload

303 A

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

62 Hz

Rated frequency - min

48 Hz

Rated operational current (Ie) at 150% overload

202 A

Rated operational power at 380/400 V, 50 Hz

3-phase

110 kW

Rated operational voltage

400 V AC, 3-phase; 480 V AC, 3-phase

Resolution

0.1 Hz (Frequency resolution, setpoint value)

Short-circuit protection rating

300 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring

Starting current - max

200 %, IH, max. starting current (High Overload), for 4 seconds every 40 seconds, Power section

Supply frequency

50/60 Hz

Switching frequency

4 kHz, 4 - 16 kHz adjustable (audible), fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

480 VAC

Assigned motor current IM at 400 V, 50 Hz

150% overload

196 A

Assigned motor current IM at 440 - 480 V, 60 Hz

150% overload

180 A

Assigned motor power at 460/480 V, 60 Hz

3-phase

150 HP

HS Code

8504.40

• EAN 4015081658459
• SAP 1000599742
• Code 8403744
