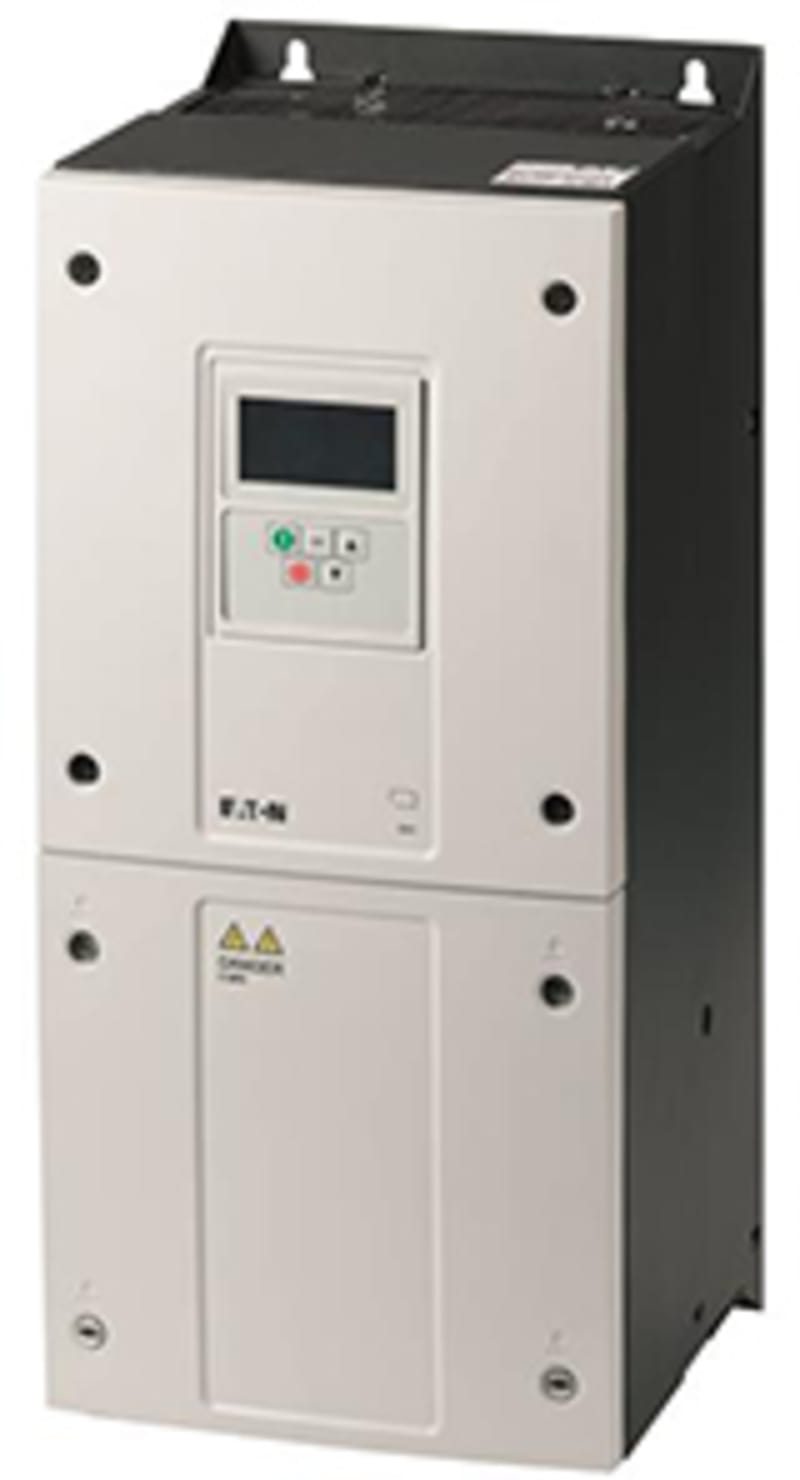

DA1 variable-frequency drive, 3-3 230V, 22 kW (DA1-32072FB-B55C)

Eaton DA1 variable-frequency drive, 3-3 230V, 22 kW (DA1-32072FB-B55C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 169365; Depth: 270 mm; Height: 540 mm; Width: 235 mm.

Manufacturer part number (MPN)

DA1-32072FB-B55C

EAN / GTIN

4015081658121

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

169365

Depth

270 mm

Height

540 mm

Width

235 mm

Weight

22.5 kg

Catalog Notes

The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.

Apparent power at 230 V

28.68 kVA

Apparent power at 240 V

29.93 kVA

Braking resistance

12 Ω

Braking torque

Max. 100 % of rated operational current Ie, variable, DC - Main circuit; Max. 30 % MN, Standard - Main circuit; Max. 100 % of rated operational current Ie with external braking resistor - Main circuit

Switch-on threshold for the braking transistor

390 VDC

Altitude

Max. 1000 m; Above 1000 m with 1 % derating per 100 m; Max. 4000 m

Ambient operating temperature - max

40 °C

Ambient storage temperature - max

60 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

40 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 average relative humidity (RH), no condensation, no corrosion

Number of inputs (analog)

2

Number of inputs (digital)

5

Number of outputs (analog)

2

Number of outputs (digital)

2

Number of relay outputs

2 (parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))

Rated control voltage (Uc)

24 V DC (external, max. 100 mA)

Equipment heat dissipation, current-dependent Pvid

518 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

72 A

Static heat dissipation, non-current-dependent Pvs

0 W

Communication interface

Modbus RTU, built in; OP-Bus (RS485), built in; PROFINET, optional; CANopen®, built in; PROFIBUS, optional; EtherCAT, optional; DeviceNet, optional; Modbus-TCP, optional; SmartWire-DT, optional; Ethernet IP, optional

Connection to SmartWire-DT

Yes; In conjunction with DX-NET-SWD1 SmartWire DT module

Degree of protection

IP55; NEMA 12

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Fitted with

Brake chopper; Additional PCB protection; OLED display; DC link choke; Internal DC link; IGBT inverter; Control unit; Radio interference suppression filter; Breaking resistance; PC connection

Frame size

FS5

Functions

4-quadrant operation possible

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Protocol

Other bus systems; MODBUS; PROFINET IO; PROFIBUS; CAN; DeviceNet; EtherNet/IP; TCP/IP

Radio interference class

Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments; C2

C3

depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.

Safety function/level

STO (Safe Torque Off, SIL2, PLc Cat 2)

Suitable for

Branch circuits, (UL/CSA)

Efficiency

97.2 % (η)

Heat dissipation at current/speed

180 W at 25% current and 0% speed; 240 W at 25% current and 50% speed; 290 W at 50% current and 0% speed; 370 W at 50% current and 50% speed; 460 W at 50% current and 90% speed; 550 W at 100% current and 0% speed; 720 W at 100% current and 50% speed; 900 W at 100% current and 90% speed

Input current ILN at 150% overload

74 A

Leakage current at ground IPE - max

0.28 mA

Mains switch-on frequency

Maximum of one time every 30 seconds

Mains voltage - max

240 V

Mains voltage - min

200 V

Operating mode

Sensorless vector control (SLV); Optional: Vector control with feedback (CLV); Speed control with slip compensation; U/f control

Output frequency - max

500 Hz

Output frequency - min

0 Hz

Output voltage (U2)

230 V AC, 3-phase; 240 V AC, 3-phase

Overload current IL at 150% overload

108 A

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

62 Hz

Rated frequency - min

48 Hz

Rated operational current (Ie) at 150% overload

72 A

Rated operational power at 220/230 V, 50 Hz

1-phase

18.5 kW

Rated operational voltage

240 V AC, 3-phase; 230 V AC, 3-phase

Resolution

0.1 Hz (Frequency resolution, setpoint value)

Short-circuit protection rating

110 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring

Starting current - max

200 %, IH, max. starting current (High Overload), for 4 seconds every 40 seconds, Power section

Supply frequency

50/60 Hz

Switching frequency

8 kHz, 4 - 24 kHz adjustable (audible), fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

240 VAC

Assigned motor current IM at 220 - 240 V, 60 Hz

150% overload

68 A

Assigned motor current IM at 230 V, 50 Hz

150% overload

71 A

Assigned motor power at 230/240 V, 60 Hz

1-phase

25 HP

HS Code

8504.40

• EAN 4015081658121
• SAP 1200123179
• Code 81987645
