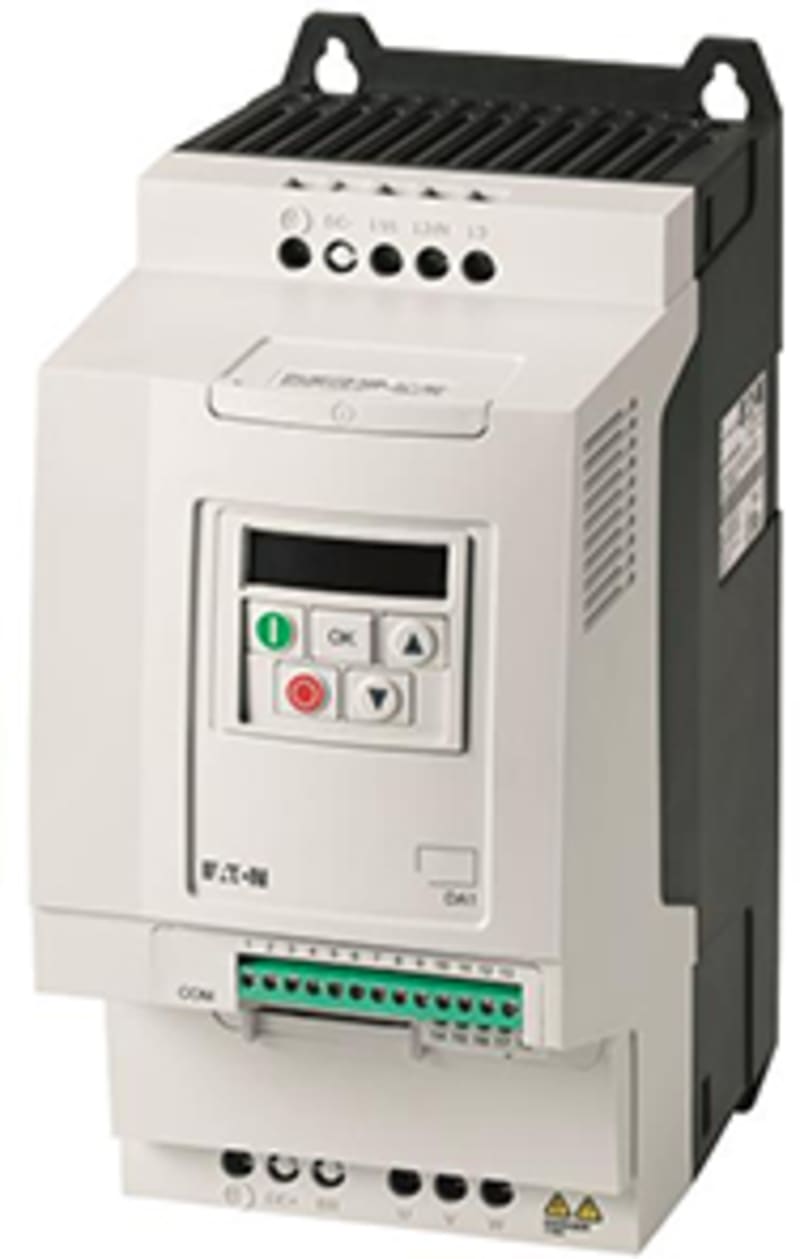

DA1 variable-frequency drive, 3-3 230V, 4 kW

Eaton DA1 variable-frequency drive, 3-3 230V, 4 kW (part number DA1-32018FB-A20C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 169096; Depth: 204 mm; Height: 273 mm; Width: 131 mm.

Manufacturer part number (MPN)

DA1-32018FB-A20C

EAN / GTIN

4015081658794

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

169096

Depth

204 mm

Height

273 mm

Width

131 mm

Weight

3.5 kg

Catalog Notes

The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.

Apparent power at 230 V

7.17 kVA

Apparent power at 240 V

7.48 kVA

Braking resistance

20 Ω

Braking torque

Max. 30 % MN, Standard - Main circuit; Max. 100 % of rated operational current Ie, variable, DC - Main circuit; Max. 100 % of rated operational current Ie with external braking resistor - Main circuit

Switch-on threshold for the braking transistor

390 VDC

Altitude

Above 1000 m with 1 % derating per 100 m; Max. 1000 m; Max. 4000 m

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

60 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

50 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 average relative humidity (RH), no condensation, no corrosion

Number of inputs (analog)

2

Number of inputs (digital)

5

Number of outputs (analog)

2

Number of outputs (digital)

2

Number of relay outputs

2 (parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))

Rated control voltage (Uc)

24 V DC (external, max. 100 mA)

Equipment heat dissipation, current-dependent Pvid

160 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

18 A

Static heat dissipation, non-current-dependent Pvs

0 W

Communication interface

OP-Bus (RS485), built in; EtherCAT, optional; CANopen®, built in; SmartWire-DT, optional; Modbus RTU, built in; Modbus-TCP, optional; PROFIBUS, optional; DeviceNet, optional; Ethernet IP, optional; PROFINET, optional

Connection to SmartWire-DT

In conjunction with DX-NET-SWD1 SmartWire DT module; Yes

Degree of protection

IP20; NEMA Other

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Fitted with

Brake chopper; 7-digital display assembly; PC connection; Internal DC link; Control unit; Breaking resistance; Radio interference suppression filter; IGBT inverter; Additional PCB protection

Frame size

FS3

Functions

4-quadrant operation possible

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Protocol

EtherNet/IP; CAN; MODBUS; PROFINET IO; Other bus systems; DeviceNet; PROFIBUS; TCP/IP

Radio interference class

C2

C3

depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.; Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments

Safety function/level

STO (Safe Torque Off, SIL2, PLc Cat 2)

Suitable for

Branch circuits, (UL/CSA)

Efficiency

96 % (η)

Heat dissipation at current/speed

109 W at 50% current and 50% speed; 122 W at 50% current and 90% speed; 172 W at 100% current and 0% speed; 175 W at 100% current and 50% speed; 178 W at 100% current and 90% speed; 75 W at 25% current and 0% speed; 86 W at 25% current and 50% speed; 91 W at 50% current and 0% speed

Input current ILN at 150% overload

20.9 A

Leakage current at ground IPE - max

0.93 mA

Mains switch-on frequency

Maximum of one time every 30 seconds

Mains voltage - max

240 V

Mains voltage - min

200 V

Operating mode

Optional: Vector control with feedback (CLV); U/f control; Speed control with slip compensation; Sensorless vector control (SLV)

Output frequency - max

500 Hz

Output frequency - min

0 Hz

Output voltage (U2)

240 V AC, 3-phase; 230 V AC, 3-phase

Overload current IL at 150% overload

27 A

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

62 Hz

Rated frequency - min

48 Hz

Rated operational current (Ie) at 150% overload

18 A

Rated operational power at 220/230 V, 50 Hz

1-phase

4 kW

Rated operational voltage

230 V AC, 3-phase; 240 V AC, 3-phase

Resolution

0.1 Hz (Frequency resolution, setpoint value)

Short-circuit protection rating

30 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring

Starting current - max

200 %, IH, max. starting current (High Overload), for 4 seconds every 40 seconds, Power section

Supply frequency

50/60 Hz

Switching frequency

16 kHz, 4 - 24 kHz adjustable (audible), fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

240 VAC

Assigned motor current IM at 220 - 240 V, 60 Hz

150% overload

15.2 A

Assigned motor current IM at 230 V, 50 Hz

150% overload

14.8 A

Assigned motor power at 230/240 V, 60 Hz

1-phase

5 HP

HS Code

8504.40

• EAN 4015081658794
• SAP 1200123191
• Code 81987640
