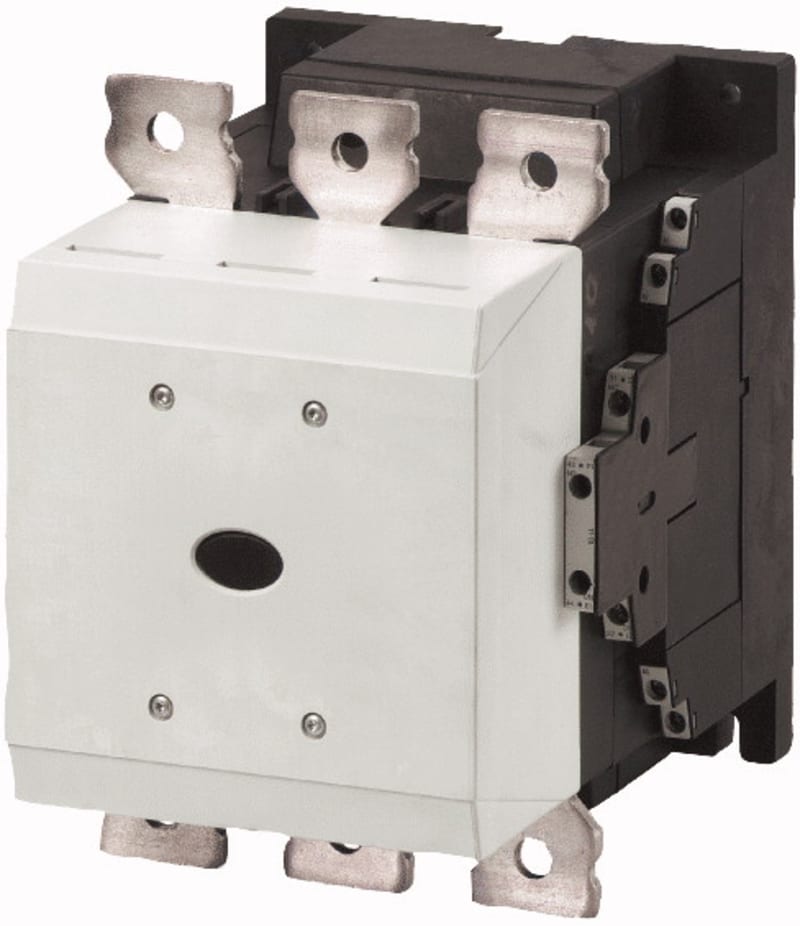

Contactor DILM225A/22(RDC60)

Eaton DILM225A/22(RDC60) Contactor, 380 V 400 V 110 kW, 2 N/O, 2 NC, RDC 60: 48 - 60 V DC, DC operated, Screw connection.

Manufacturer part number (MPN)

DILM225A/22(RDC60)

EAN / GTIN

4015081363292

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

139551

Depth

158 mm

Height

190 mm

Width

140 mm

Weight

3.54 kg

Certifications

UL 60947-4-1; CSA File No.: 2389068; VDE 0660; CSA Class No.: 3211-04; UL Category Control No.: NLDX; CE; UL File No.: E29096; CSA-C22.2 No. 60947-4-1-14; UL; IEC/EN 60947; IEC/EN 60947-4-1; CSA

Catalog Notes

Contacts according to EN 50012 Also tested according to AC-3e up to 500 V. Also suitable for motors with efficiency class IE3. Conventional thermal current Ith of main contacts (1-pole, open) at 60°

Conventional thermal current Ith (1-pole, enclosed)

688 A

Conventional thermal current Ith (3-pole, enclosed)

275 A

Conventional thermal current Ith at 40°C (3-pole, open)

386 A

Conventional thermal current Ith at 50°C (3-pole, open)

345 A

Conventional thermal current Ith at 55°C (3-pole, open)

329 A

Conventional thermal current Ith at 60°C (3-pole, open)

315 A

Conventional thermal current Ith of main contacts (1-pole, open)

788 A

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-40 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-40 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of auxiliary contacts (normally closed contacts)

2

Number of auxiliary contacts (normally open contacts)

2

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

2

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

7.67 W

Rated operational current for specified heat dissipation (In)

225 A

Static heat dissipation, non-current-dependent Pvs

2.1 W

Inrush current

Max. 30 x Ie (peak)

Rated breaking capacity at 1000 V

760 A

Rated breaking capacity at 220/230 V

2250 A

Rated breaking capacity at 380/400 V

2250 A

Rated breaking capacity at 500 V

2250 A

Rated breaking capacity at 660/690 V

2250 A

Rated insulation voltage (Ui)

1000 V

Rated making capacity (cos phi to IEC/EN 60947)

2700 A

Rated operational current (Ie)

220 A at up to 525 V (Individual compensation, three-phase capacitors, open); 133 A at 690 V (Individual compensation, three-phase capacitors, open)

Rated operational current (Ie) at AC-3

1000 V

76 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

225 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

225 A

Rated operational current (Ie) at AC-3

440 V

225 A

Rated operational current (Ie) at AC-3

500 V

225 A

Rated operational current (Ie) at AC-3, 660 V

690 V

160 A

Rated operational current (Ie) at AC-4

1000 V

55 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

164 A

Rated operational current (Ie) at AC-4

440 V

164 A

Rated operational current (Ie) at AC-4

500 V

164 A

Rated operational current (Ie) at AC-4, 660 V

690 V

120 A

Rated operational power at AC-3, 1000 V

50 Hz

108 kW

Rated operational power at AC-3, 240 V

50 Hz

75 kW

Rated operational power at AC-3, 380/400 V

50 Hz

110 kW

Rated operational power at AC-3, 415 V

50 Hz

132 kW

Rated operational power at AC-3, 440 V

50 Hz

138 kW

Rated operational power at AC-3, 500 V

50 Hz

160 kW

Rated operational power at AC-3, 690 V

50 Hz

150 kW

Rated operational power at AC-4, 1000 V

50 Hz

77 kW

Rated operational power at AC-4, 220/230 V

50 Hz

51 kW

Rated operational power at AC-4, 240 V

50 Hz

54 kW

Rated operational power at AC-4, 415 V

50 Hz

96 kW

Rated operational power at AC-4, 440 V

50 Hz

102 kW

Rated operational power at AC-4, 500 V

50 Hz

116 kW

Rated operational power at AC-4, 660/690 V

Rated operational voltage (Ue) at AC - max

1000 V

Safe isolation

1000 V AC, Between coil and contacts, According to EN 61140

Special purpose rating of definite purpose rating

336 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 280 A, FLA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 2016 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 1680 A, LRA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

Accessories

Fitting options auxiliary contacts: on the side: 2 x DILM1000-XHI(V)11-SI; 2 x DILM1000-XHI11-SA

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Electromagnetic compatibility

Designed for operation in industrial environments. Its use in residential environments may cause radio-frequency interference, requiring additional noise suppression.

Fitted with

Suppressor circuit in actuating electronics

Lifespan, electrical

100,000 Operations (at Condensor operation)

Lifespan, mechanical

10,000,000 Operations (DC operated)

Operating frequency

200 Operations/h; 3000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof with terminal shroud or terminal block, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Shock resistance

8 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

DC

Drop-out voltage

DC operated: 0.2 x US max - 0.6 US min

DC operated; DC operated

0.15 x US min - 0.6 US max, DC operated

Duty factor

100 %

Pick-up voltage

0.7 - 1.2 V DC x Us

Power consumption (pick-up) at DC

210 VA

Power consumption (sealing) at DC

2.1 W

Power consumption, pick-up

HS Code

8536.90

• EAN 4015081363292
• SAP 1000252253
• Code 81131808
