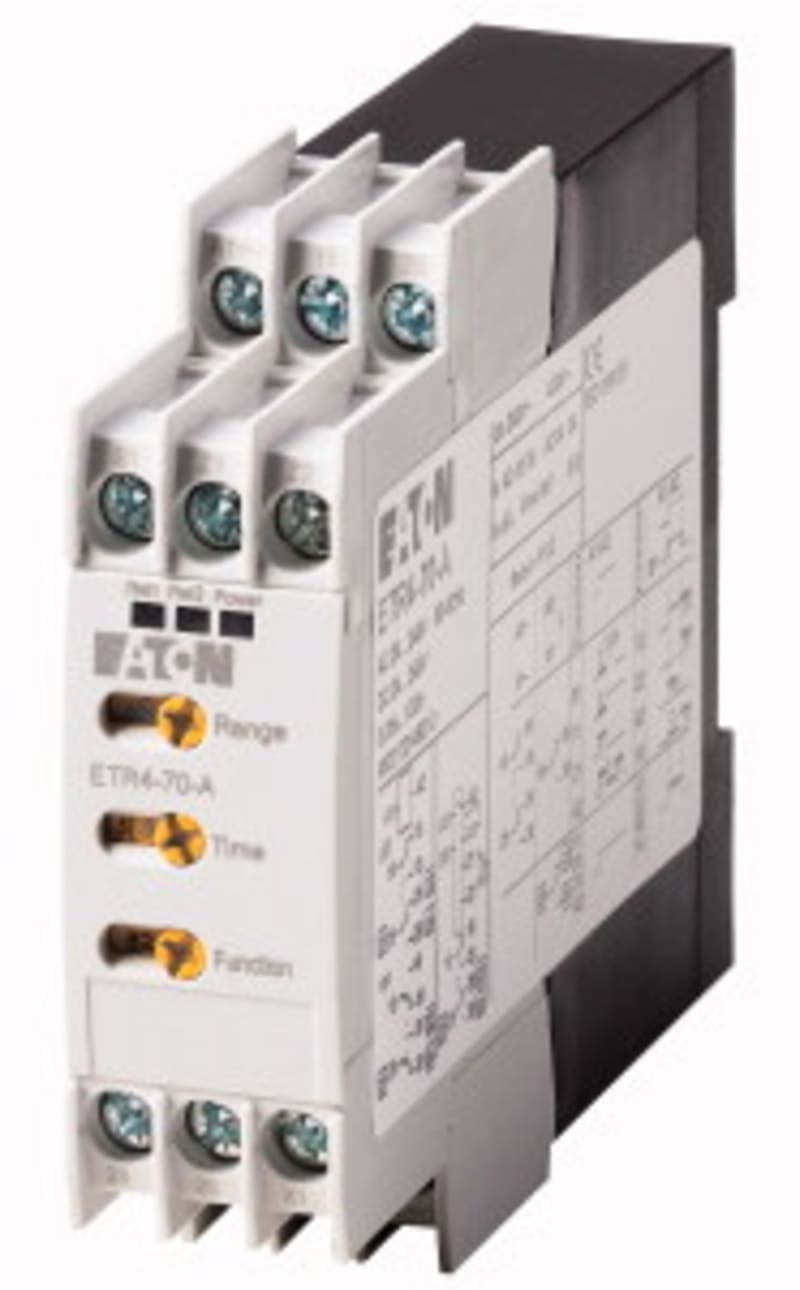

Multifunksjonsrele 24-240VACDC (ETR4-70-A)

Eaton ETR4-70-A ETR4 multifunksjonsrele, 50/60 Hz/ 24-240V DC with 2 vekselk.

Manufacturer part number (MPN)

ETR4-70-A

EAN / GTIN

4015080318880

Sales unit

pcs

Eaton catalogue number

031888

Depth

103 mm

Height

83 mm

Width

23 mm

Weight

0.141 kg

Certifications

VDE 0435; CSA-22.2 No. 14; CE; UL File No.: E29184; UL Category Control No.: NKCR; CSA File No.: 012528; UL 508; IEC/EN 61812-1; Standard IEC/EN 61812; UL; IEC/EN 60947-5-1; CSA; CSA Class No.: 3211-03; IEC/EN 61000-4-3; IEC/EN 61000-4-2

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

45 °C

Ambient operating temperature (enclosed) - min

25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Heat dissipation per pole, current-dependent Pvid

1.4 W

Rated operational current for specified heat dissipation (In)

6 A

Static heat dissipation, non-current-dependent Pvs

1.8 W

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

6 A

Mains voltage tolerance

24 - 240 V AC (at 50/60 Hz); 24 – 240 V DC

Nominal current

3 A

Rated breaking capacity

3 A at AC-15 (cos ϕ = 0.3 220 V); 3 A at AC-14 (cos ϕ = 0.3 440 V); 1.1 x Iₑ (DC-11 L/R - 40 ms)

Rated making capacity

48 A (AC-14 cos ϕ = 0.3 400 V); 50 A (AC-15 cos ϕ = 0.3 220 V); 1.1 x Iₑ (DC-11 L/R - 40 ms)

Rated operational current (Ie)

3 A at AC-14, 380 V 400 V 415 V; 3 A at AC-15, 220 V 230 V 240 V; 1.2 A at DC-11, L/R max. 50 ms; 3 A at AC-15, 380 V 400 V 415 V; 1.5 A at DC-11, 24 V; 3 A at AC-14, 440 V; 3 A at AC-14, 300 V (NC); 3 A at AC-15, 300 V

Rated operational voltage (Ue) at AC - max

440 V

Safe isolation

250 V AC, Between auxiliary contacts, According to EN 61140; 250 V AC, Between coil and auxiliary contacts, According to EN 61140

Short-circuit protection rating

Max. 6 A gG/gL, Fuse, Short-circuit rating without welding, Contacts; Max. 6 A gG/gL, fuse, without welding, Contacts

Air discharge

8 kV

Burst impulse

According to IEC/EN 61000-4-4; 2 kV, Supply cable; 1 kV, Signal cable

Contact discharge

6 kV

Electromagnetic fields

3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3); 10 V/m at 80 - 1000 MHz (according to IEC EN 61000-4-3); 1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Radio interference class

Class B (EN 55011, radiated); Class B (EN 55011, conducted)

Surge rating

2 kV, symmetrical, power pulses (Surge), EMC; According to IEC/EN 61000-4-5, power pulses (Surge), EMC; 4 kV, asymmetrical, power pulses (Surge), EMC

Electric connection type

Screw connection

Fitted with

Connection for potentiometer (10 kΩ)

Degree of protection

Terminals: IP20; IP20

Lifespan, mechanical

30,000,000 Operations (DC operated); 30,000,000 Operations (AC operated)

Mounting position

As required

Number of contacts (change-over contacts)

2

Overvoltage category

III

Pollution degree

2

Product category

ETR4 timing relays

Rated impulse withstand voltage (Uimp)

4000 V AC; 6000 V AC

Shock resistance

4 g, Make contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms

Suitable for

DIN rail (top hat rail) mounting

Terminal capacity

1 x (20 - 14) AWG, solid or stranded; 1 x (0.5 - 2.5) mm², flexible with ferrule; 1 x (0.5 - 2.5) mm², solid; 2 x (0.5 - 1.5) mm², solid; 2 x (0.5 - 1.5) mm², flexible with ferrule

Time range - max

360000 s

Time range - min

0.05 s

Type

Timer relay

Voltage type

AC/DC

Command time

50 ms, AC; 30 ms, DC

Contact changeover time

4 ms

Duty factor

100 %

Operating frequency

4000 Operations/h

Pick-up voltage

0.85 - 1.1 V AC x Uc; 0.7 - 1.1 V DC x Uc

Power consumption

2 VA at AC (Pick-up power); 2 VA at AC (Sealing power); 1.8 W at DC (Sealing power); 1.8 W at DC (Pick-up power)

Rated control supply voltage (Us) at AC, 50 Hz - max

240 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

24 V

Rated control supply voltage (Us) at DC - max

240 V

Rated control supply voltage (Us) at DC - min

24 V

Recovery time

70 ms (after 100 % time delay)

Repetition accuracy

≤ 0.5 % (deviation)

Operating voltage AC 50 Hz

24–240 V

Operating voltage AC 60 Hz

24–240 V

Operating voltage DC

24–240 V

Suitable for front mounting

No

Complete with socket

No

Type of electric connection

Screw connection

Function delay-on energization

Yes

Function delay on de-energization

Yes

Function floating contact on energization

Yes

Function floating contact on de-energization

Yes

Function star-delta

No

Function pulse shaping

Yes

Function flashing, starting with pause, fixed time

Yes

Function flashing, starting with pulse, fixed time

Yes

Clock function, starting with pause, variable

Yes

Clock function, starting with pulse, variable

Yes

With plug-in socket

No

Remote operation possible

Yes

Suitable as remote control

No

Pluggable on auxiliary contact block

No

Rated control supply voltage AC 50 Hz

24–240 V

Rated control supply voltage AC 60 Hz

24–240 V

Rated control supply voltage DC

24–240 V

Voltage type for actuating

AC/DC

Time range

0.05–360000 s

Number of outputs, undelayed, change-over contact

2

Number of outputs, delayed, change-over contact

2

Outputs, reversible delayed/undelayed

Yes

With semiconductor output

No

Suitable for DIN rail (top hat rail) mounting

Yes

Country of origin

China

HS Code

8536.49
