Eaton

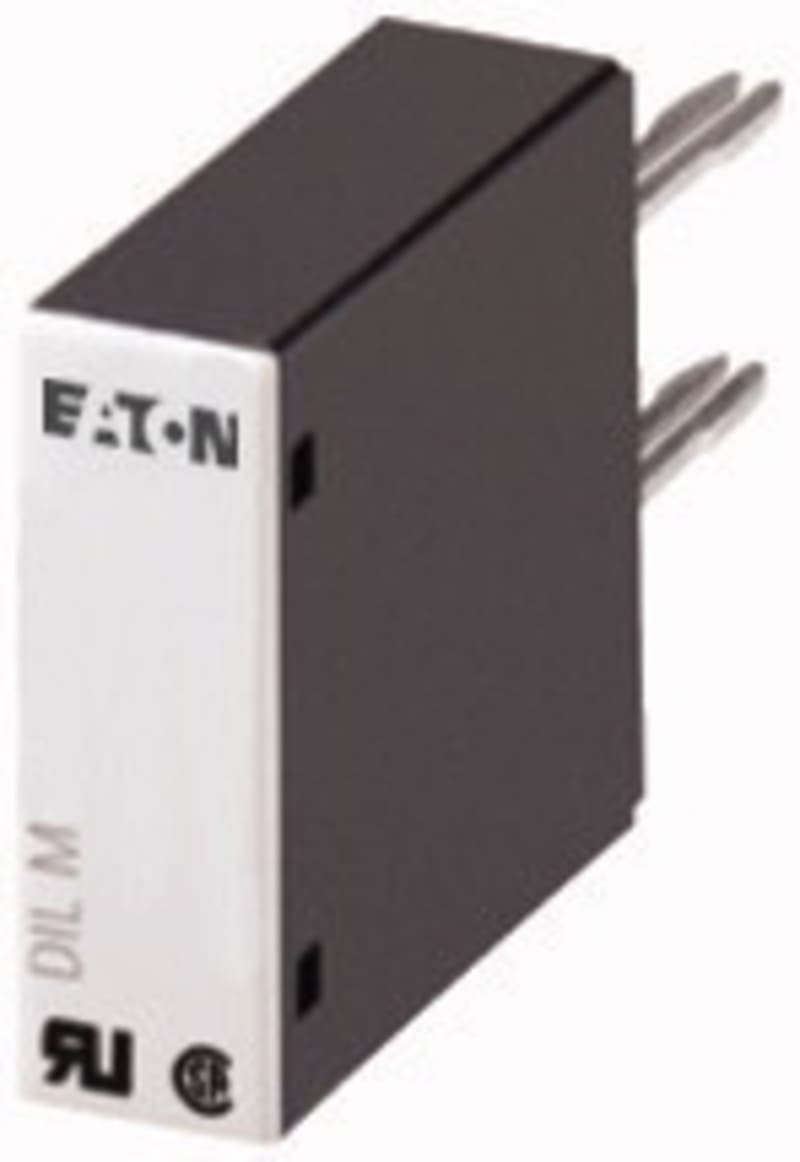

RC-Attenuator FOR DILM40..65 (DILM95-XSPR240)
Part numberDILM95-XSPR240EAN / GTIN4015082812065HS code8538.90
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DILM95-XSPR240 RC-Attenuator For Dilm40.65.
Technical Specifications
- Manufacturer part number (MPN)
- DILM95-XSPR240
- EAN / GTIN
- 4015082812065
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 281206
- Depth
- 43 mm
- Height
- 25 mm
- Width
- 9 mm
- Weight
- 0.005 kg
- Certifications
- CSA; CSA Class No.: 3211-07; UL Recognized; CSA File No.: 256465; CE; UL 508; UL File No.: E29184; CSA-C22.2 No. 14-05; IEC/EN 60947-4-1; UL Category Control No.: NKCR2, NKCR8
- Catalog Notes
- With DC operated contactors and with DILM115 and DILM150 the suppressor is integrated.
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Functions
- Varistor (voltage-sensitive resistor)
- Product category
- Accessories
- Voltage type
- AC
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 110 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 110 V
- Rated control supply voltage AC 50 Hz
- 110–240 V
- Rated control supply voltage AC 60 Hz
- 110–240 V
- With LED indication
- No
- Operating voltage AC 50 Hz
- 230–690 V
- Operating voltage AC 60 Hz
- 230–690 V
- Voltage type for actuating
- AC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082812065
- SAP 1000072664
- Code 8769712
Product Documentation
Document preview: RC-DEMPELINK FOR DILM40..65 (DILM95-XSPR240) — Specification Data Sheet (OEM)
