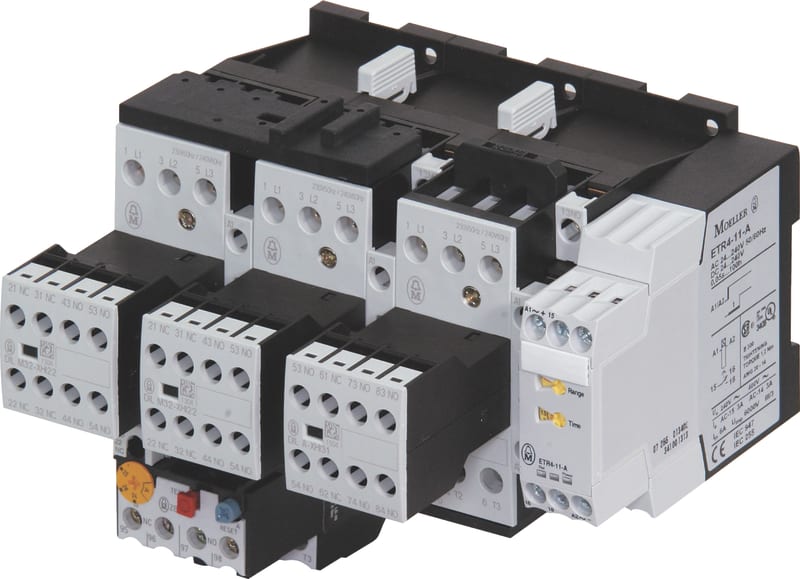

Star-delta, SDAINLM165(230V50HZ) (SDAINLM165(230V50HZ,240V60HZ))

Eaton SDAINLM165(230V50HZ,240V60HZ) Star/Delta Start,165A, AC.

Manufacturer part number (MPN)

SDAINLM165(230V50HZ,240V60HZ)

EAN / GTIN

4015082400354

Sales unit

pcs

Eaton catalogue number

240035

Depth

174 mm

Height

170 mm

Width

258 mm

Weight

9.6 kg

Certifications

CE

Functions

Star-delta contactor

Number of poles

Three-pole

Application

Star-delta motor starting for contactor combinations

Degree of protection

IP00; NEMA Other

Connection

Screw terminals

Overvoltage category

III

Pollution degree

3

Product category

Contactor combinations

Suitable for

Also motors with efficiency class IE3

Used with

ETR4-51

Utilization category

AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

AC

Ambient operating temperature - min

-25 °C

Ambient operating temperature - max

60 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient storage temperature - min

-40 °C

Ambient storage temperature - max

80 °C

Interference immunity

According to EN 60947-1

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

165 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

165 A

Rated insulation voltage (Ui)

690 V

Rated operational power at AC-3, 380/400 V, 50 Hz

90 kW

Rated operational power at AC-3, 500 V, 50 Hz

110 kW

Rated operational power at AC-3, 690 V, 50 Hz

132 kW

Changeover time

20 s, max.

Duty factor

100 %

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 60 Hz - min

240 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

1

Equipment heat dissipation, current-dependent Pvid

32.6 W

Heat dissipation per pole, current-dependent Pvid

10.9 W

Rated operational current for specified heat dissipation (In)

165 A

Static heat dissipation, non-current-dependent Pvs

13.6 W

Rated operation power at AC-3, 400 V

90 kW

Number of normally open contacts as main contact

9

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Rated operation current Ie at AC-3, 400 V

165 A

Rated operation current Ie at AC-1, 400 V

165 A

Suitable for rail mounting

No

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

240 V

Type of electrical connection of main circuit

Screw connection

Operating voltage AC 50 Hz

230–690 V

Operating voltage AC 60 Hz

230–690 V

Voltage type for actuating

AC

Country of origin

Romania

HS Code

8536.49
