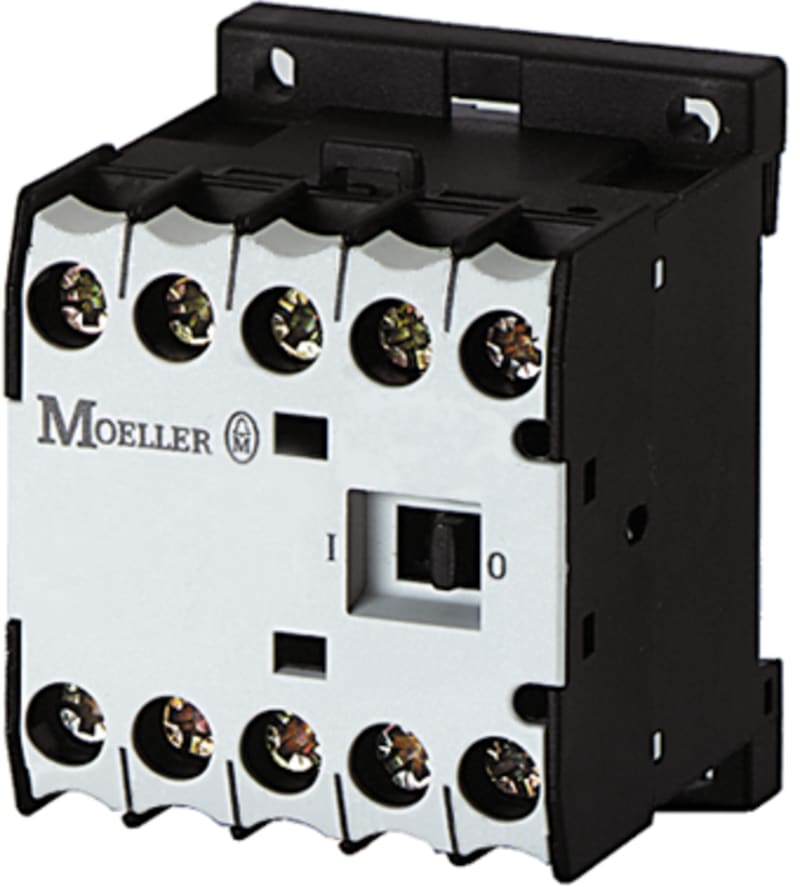

Contactor 4kW 380-440VAC (DILEM-10(380V50HZ,440V60HZ))

Eaton DILEM-10(380V50HZ,440V60HZ) DILEM-10(380V50HZ,440V60HZ).

Manufacturer part number (MPN)

DILEM-10(380V50HZ,440V60HZ)

EAN / GTIN

4015080517870

HS code

8536.90

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

051787

Depth

52 mm

Height

58 mm

Width

45 mm

Weight

0.17 kg

Certifications

CE; IEC/EN 60947-4-1; CSA Class No.: 3211-04; UL Category Control No.: NLDX; CSA-C22.2 No. 14-05; CSA File No.: 012528; VDE 0660; UL File No.: E29096; UL 508; UL; IEC/EN 60947; CSA

Catalog Notes

Also tested according to AC-3e.

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Control circuit reliability

< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

1

Conventional thermal current Ith (1-pole, enclosed)

40 A

Conventional thermal current Ith (3-pole, enclosed)

16 A

Conventional thermal current Ith at 55°C (3-pole, open)

19 A

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

10 A

Conventional thermal current Ith of main contacts (1-pole, open)

50 A

Equipment heat dissipation, current-dependent Pvid

1.2 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0.4 W

Rated operational current for specified heat dissipation (In)

9 A

Static heat dissipation, non-current-dependent Pvs

1.8 W

Rated breaking capacity at 220/230 V

90 A

Rated breaking capacity at 380/400 V

90 A

Rated breaking capacity at 500 V

64 A

Rated breaking capacity at 660/690 V

42 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 440 V (cos phi to IEC/EN 60947)

110 A

Rated operational current (Ie)

0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series); 1.5 A at 100 V, DC L/R ≤ 15 ms (with 3 contacts in series); 2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series); 2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

22 A

Rated operational current (Ie) at AC-15, 220 V, 230 V

240 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V

415 V

3 A

Rated operational current (Ie) at AC-15

500 V

1.5 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

9 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

9 A

Rated operational current (Ie) at AC-3

440 V

9 A

Rated operational current (Ie) at AC-3

500 V

6.4 A

Rated operational current (Ie) at AC-3, 660 V

690 V

4.8 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

6.6 A

Rated operational current (Ie) at AC-4

440 V

6.6 A

Rated operational current (Ie) at AC-4

500 V

5 A

Rated operational current (Ie) at AC-4, 660 V

690 V

3.4 A

Rated operational current (Ie) at DC-1

110 V

20 A

Rated operational current (Ie) at DC-1

12 V

20 A

Rated operational current (Ie) at DC-1

220 V

20 A

Rated operational current (Ie) at DC-1

24 V

20 A

Rated operational current (Ie) at DC-1

60 V

20 A

Rated operational power at AC-3, 240 V

50 Hz

2.5 kW

Rated operational power at AC-3, 380/400 V

50 Hz

4 kW

Rated operational power at AC-3, 415 V

50 Hz

4.3 kW

Rated operational power at AC-4, 220/230 V

50 Hz

1.5 kW

Rated operational power at AC-4, 240 V

50 Hz

1.8 kW

Rated operational power at AC-4, 415 V

50 Hz

3.1 kW

Rated operational power at AC-4, 440 V

50 Hz

3.3 kW

Rated operational power at AC-4, 500 V

50 Hz

3 kW

Rated operational power at AC-4, 660/690 V

Rated operational voltage (Ue) at AC - max

690 V

Safe isolation

300 V AC, Between auxiliary contacts, According to EN 61140; 300 V AC, Between coil and contacts, According to EN 61140; 300 V AC, Between the contacts, According to EN 61140; 300 V AC, Between coil and auxiliary contacts, According to EN 61140

Features

Positive operating contacts to EN 60947-5-1 appendix L, including auxiliary contact module

Fitted with

Auxiliary contact

Number of poles

Three-pole

Application

Mini Contactors for Motors and Resistive Loads

Degree of protection

IP20

Lifespan, mechanical

10,000,000 Operations; 150,000 Operations (at 240 V, DC

L/R = 50 ms

2 contacts in series 0.5 A); 7,000,000 Operations (Coil 50/60 Hz); 200,000 Operations (at 240 V, AC-15)

Mounting position

As required (except vertical with terminals A1/A2 at the bottom)

Operating frequency

9000 mechanical Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

AC

Arcing time

12 ms at 690 V AC

Changeover time

16 - 21 ms

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc (voltage tolerance - single-voltage coil 50 Hz and dual-voltage coil 50 Hz, 60 Hz); 1.1 V AC x Uc (voltage tolerance - dual frequency coil 50/60 Hz)

Power consumption, pick-up

50 Hz

22 W, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz; 25 VA, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz

Power consumption, pick-up

60 Hz

25 VA, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz; 22 W, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz

Power consumption, sealing
