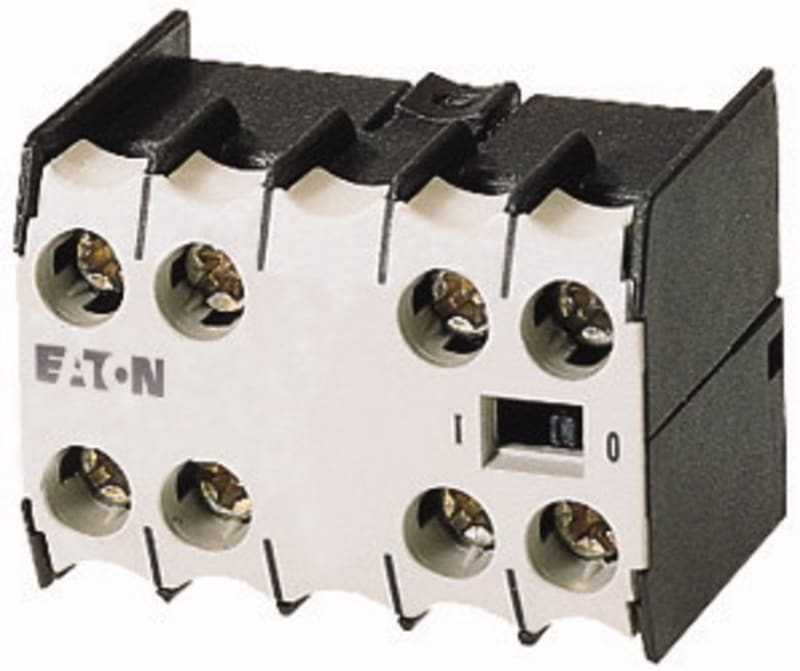

Contact Block 3S1TO (31DILE)

Eaton 31DILE Auxiliary Contact 3NO+1NC.

Manufacturer part number (MPN)

31DILE

EAN / GTIN

4015080489122

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

048912

Depth

36 mm

Height

32 mm

Width

45 mm

Weight

0.04 kg

Certifications

CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; CE; IEC/EN 60947; VDE 0660; UL 508; UL Category Control No.: NKCR; CSA; UL; IEC/EN 60947-4-1; UL File No.: E29184; CSA File No.: 012528

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Code number

71E in combination with DILER-40(-G); 62 in combination with DILER-31(-G); 53 in combination with DILER-22

Control circuit reliability

< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

3

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

10 A

Heat dissipation per pole, current-dependent Pvid

0.24 W

Rated operational current for specified heat dissipation (In)

4 A

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie)

2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series); 1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series); 0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series); 2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)

Rated operational current (Ie) at AC-15, 220 V, 230 V

240 V

4 A

Rated operational current (Ie) at AC-15, 380 V, 400 V

415 V

2 A

Rated operational current (Ie) at AC-15

500 V

1.5 A

Rated operational voltage (Ue) at AC - max

600 V

Safe isolation

300 V AC, Between auxiliary contacts, According to EN 61140; 300 V AC, Between coil and auxiliary contacts, According to EN 61140

Electric connection type

Screw connection

Features

Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L)

Fitted with

Interlocked opposing contacts; Switching elements according to EN 50005

Functions

For standard applications

Number of poles

Four-pole

Degree of protection

IP20

Lifespan, mechanical

150,000 Operations (at 240 V, DC

L/R = 50 ms

2 contacts in series 0.5 A); 20,000,000 Operations (DC operated); 10,000,000 Operations (AC operated); 200,000 Operations (at 240 V, AC-15)

Model

Top mounting

Mounting method

Front fastening

Mounting position

As required (except vertical with terminals A1/A2 at the bottom)

Operating frequency

9000 Operations/h

Overvoltage category

III

Pollution degree

3

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Shock resistance

10 g, N/O contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 8 g, N/C contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Short-circuit protection rating

10 A fast, 500V, Maximum fuse, Short-circuit rating without welding, Contacts

Short-circuit protection rating without welding

6 A gG/gL, 500 V, Max. Fuse, Contacts

Switching capacity (auxiliary contacts, general use)

10 A, 600 V AC, (UL/CSA); 0.5 A, 250 V DC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

A600, AC operated (UL/CSA); P300, DC operated (UL/CSA)

Screw size

M3.5, Terminal screw

Screwdriver size

0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver; 2, Terminal screw, Pozidriv screwdriver

Terminal capacity (flexible with ferrule)

2 x (0.75 - 1.5) mm²; 1 x (0.75 - 1.5) mm²

Terminal capacity (solid)

2 x (0.75 - 2.5) mm²; 1 x (0.75 - 2.5) mm²

Terminal capacity (solid/stranded AWG)

Single 18 – 14, double 18 – 14

Tightening torque

1.2 Nm, Screw terminals

Country of origin

Romania

HS Code

8538.90
