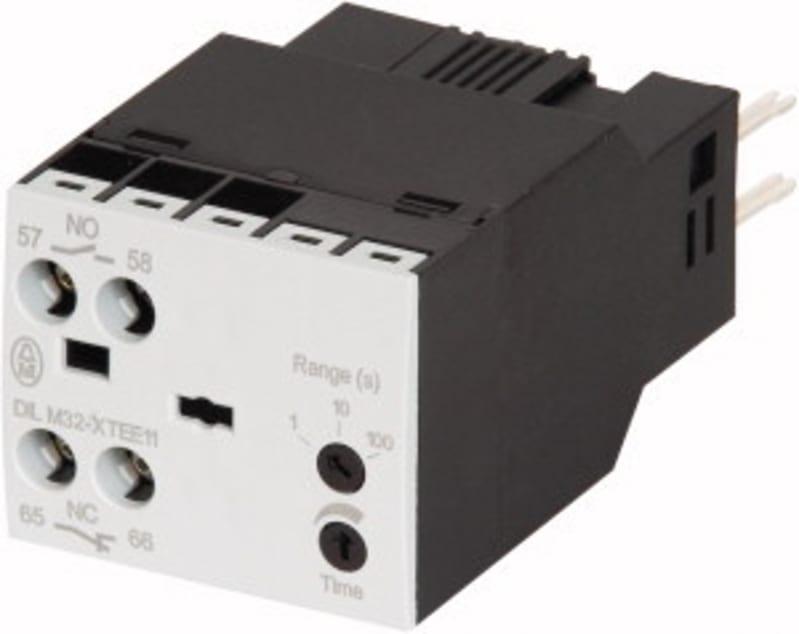

Time Module DILM32-XTEE11(RAC240)

Eaton DILM32-XTEE11(RAC240) DILM32-XTEE11(RAC240).

Manufacturer part number (MPN)

DILM32-XTEE11(RAC240)

EAN / GTIN

4015081013623

Sales unit

pcs

Eaton catalogue number

101442

Depth

86 mm

Height

38 mm

Width

45 mm

Weight

0.073 kg

Certifications

CSA File No.: 012528; IEC/EN 60947-4-1; UL 508; CSA Class No.: 3211-03; DIN EN 61812; IEC/EN 60947; UL Category Control No.: NKCR; CE; CSA; UL; VDE 0660; UL File No.: E29184; CSA-C22.2 No. 14-05

Catalog Notes

Cannot be combined with top mounting auxiliary contacts

Mounting position

As required (except suspended)

Shock resistance

6 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 6 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Ambient operating temperature - max

60 °F

Ambient storage temperature - max

80 °F

Ambient operating temperature - min

-25 °F

Ambient operating temperature (enclosed) - max

40 °F

Ambient operating temperature (enclosed) - min

25 °F

Ambient storage temperature - min

40 °F

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

4 A

Fitted with

Suppressor circuits

Operating mode

Electronic

Switch function type

Operating delayed

Degree of protection

IP20

Delay time

50 ms, On-delayed; 200 ms, Off-delayed

Lifespan, mechanical

3,000,000 Operations (AC operated); 3,000,000 Operations (DC operated)

Operating frequency

3600 Operations/h; 360 mechanical Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front

Rated impulse withstand voltage (Uimp)

4000 V AC

Recovery time

70 ms (after 100 % time delay)

Repetition accuracy

< 5 % (deviation)

Duty factor

100 %

Pick-up voltage

0.7 - 1.2 V DC x Uc; 0.85 - 1.1 V AC x Uc

Power consumption (sealing) at DC

1.8 W

Power consumption, sealing, 50 Hz

2 VA, Coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

2 VA, Coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC, 50 Hz - max

240 V

Rated control supply voltage (Us) at AC, 50 Hz - min

200 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

200 V

Safe isolation

250 V AC, Between coil and auxiliary contacts, According to EN 61140; 250 V AC, Between auxiliary contacts, According to EN 61140

Short-circuit current rating (basic rating)

125 A, max. CB, SCCR (UL/CSA); 5 kA, SCCR (UL/CSA); 125 A, max. Fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

50/32 A, max. CB, SCCR (UL/CSA); 125/70 A, Class J, max. Fuse, SCCR (UL/CSA); 10/100 kA, Fuse, SCCR (UL/CSA); 10/65 kA, CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

125/125 A, Class J, max. Fuse, SCCR (UL/CSA); 10/22 kA, CB, SCCR (UL/CSA); 50/32 A, max. CB, SCCR (UL/CSA); 10/100 kA, Fuse, SCCR (UL/CSA)

Short-circuit protection rating

Max. 4 A gG/gL, fuse, without welding, Auxiliary and control circuits

Switching capacity (auxiliary contacts, general use)

5 A, 24 V DC, (UL/CSA); 5 A, 240 V AC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

R300, DC operated (UL/CSA); B300, AC operated (UL/CSA)

Screw size

M3.5, Terminal screw, Control circuit cables

Screwdriver size

2, Terminal screw, Pozidriv screwdriver; 0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver

Terminal capacity (solid)

2 x (0.75 - 1.5) mm²; 1 x (0.75 - 2.5) mm²

Terminal capacity (flexible with ferrule)

2 x (0.75 - 1.5) mm²; 1 x (0.75 - 1.5) mm²

Terminal capacity (solid/stranded AWG)

18 - 14

Switching function

Operating delayed

Setting time

0.05–100 s

Number of contacts as normally open contact

1

Number of contacts as normally closed contact

1

Operating principle

Electronic

Country of origin

Germany

HS Code

8538.90
