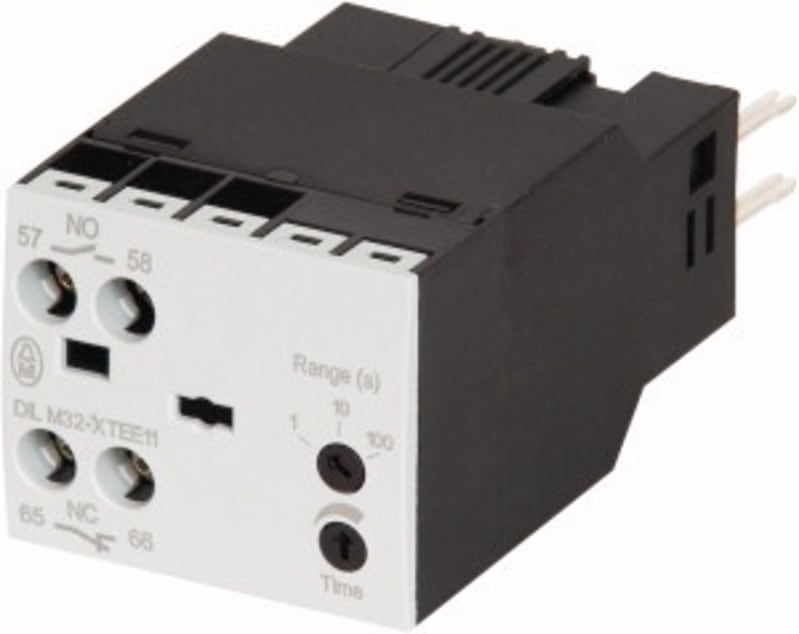

TIME BLOCK, Tilslagsforsinket (DILM32-XTEE11(RA24))

Eaton DILM32-XTEE11(RA24) Tidsblokk tilsalgsforsinket 24VAC/DC, 1NO+1NC, 0,05-100s.

Manufacturer part number (MPN)

DILM32-XTEE11(RA24)

EAN / GTIN

4015081013609

Sales unit

pcs

Eaton catalogue number

101440

Depth

86 mm

Height

38 mm

Width

45 mm

Weight

0.073 kg

Certifications

CSA File No.: 012528; IEC/EN 60947; IEC/EN 60947-4-1; UL; UL Category Control No.: NKCR; UL File No.: E29184; CSA; CSA-C22.2 No. 14-05; UL 508; VDE 0660; CE; DIN EN 61812; CSA Class No.: 3211-03

Catalog Notes

Cannot be combined with top mounting auxiliary contacts

Mounting position

As required (except suspended)

Shock resistance

6 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 6 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Contact changeover time

50 ms

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

4 A

Static heat dissipation, non-current-dependent Pvs

1.8 W

Rated insulation voltage (Ui)

250 V

Rated operational voltage (Ue) - max

250 V

Fitted with

Suppressor circuits

Operating mode

Electronic

Switch function type

Operating delayed

Degree of protection

IP20

Delay time

200 ms, Off-delayed; 50 ms, On-delayed

Lifespan, mechanical

3,000,000 Operations (AC operated); 3,000,000 Operations (DC operated)

Operating frequency

3600 Operations/h; 360 mechanical Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

4000 V AC

Recovery time

70 ms (after 100 % time delay)

Repetition accuracy

< 5 % (deviation)

Time range - max

100 s

Time range - min

0.05 s

Duty factor

100 %

Pick-up voltage

0.85 - 1.1 V AC x Uc; 0.7 - 1.2 V DC x Uc

Power consumption (sealing) at DC

1.8 W

Power consumption, sealing, 50 Hz

2 VA, Coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

2 VA, Coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC, 50 Hz - max

24 V

Rated control supply voltage (Us) at AC, 60 Hz - max

24 V

Rated control supply voltage (Us) at DC - max

24 V

Safe isolation

250 V AC, Between auxiliary contacts, According to EN 61140; 250 V AC, Between coil and auxiliary contacts, According to EN 61140

Short-circuit current rating (basic rating)

125 A, max. CB, SCCR (UL/CSA); 5 kA, SCCR (UL/CSA); 125 A, max. Fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

50/32 A, max. CB, SCCR (UL/CSA); 10/65 kA, CB, SCCR (UL/CSA); 125/70 A, Class J, max. Fuse, SCCR (UL/CSA); 10/100 kA, Fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

10/22 kA, CB, SCCR (UL/CSA); 10/100 kA, Fuse, SCCR (UL/CSA); 125/125 A, Class J, max. Fuse, SCCR (UL/CSA); 50/32 A, max. CB, SCCR (UL/CSA)

Short-circuit protection rating

Max. 4 A gG/gL, fuse, without welding, Auxiliary and control circuits

Switching capacity (auxiliary contacts, general use)

5 A, 240 V AC, (UL/CSA); 5 A, 24 V DC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

R300, DC operated (UL/CSA); B300, AC operated (UL/CSA)

Screw size

M3.5, Terminal screw, Control circuit cables

Screwdriver size

2, Terminal screw, Pozidriv screwdriver; 0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver

Terminal capacity (solid)

2 x (0.75 - 1.5) mm²; 1 x (0.75 - 2.5) mm²

Tightening torque

1.2 Nm, Screw terminals

Terminal capacity (flexible with ferrule)

1 x (0.75 - 1.5) mm²; 2 x (0.75 - 1.5) mm²

Terminal capacity (solid/stranded AWG)

18 - 14

Switching function

Operating delayed

Setting time

0.05–100 s

Number of contacts as normally open contact

1

Number of contacts as normally closed contact

1

Operating principle

Electronic

Country of origin

Germany

HS Code

8538.90
