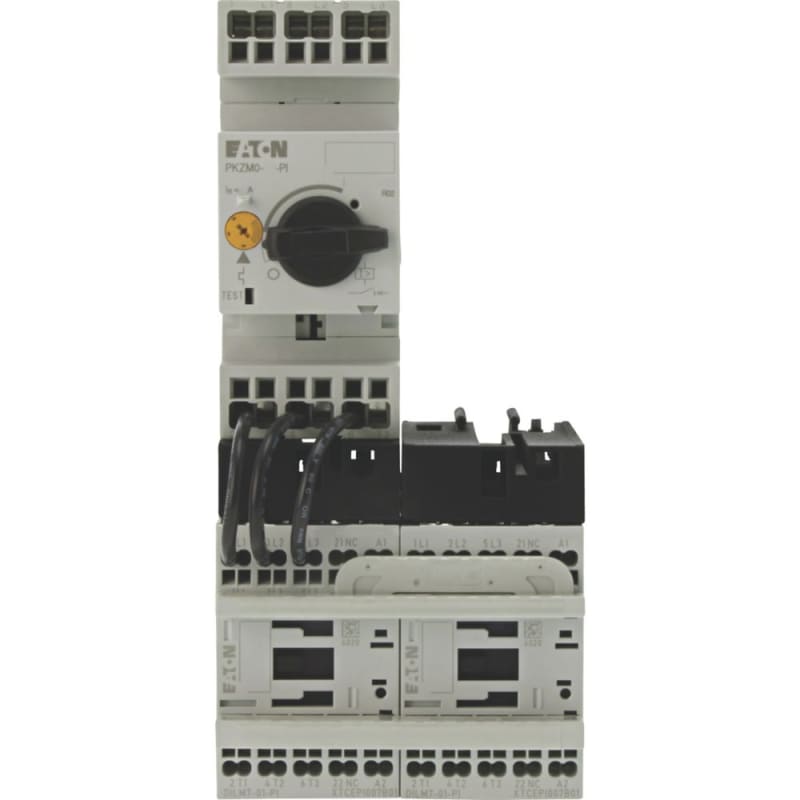

Eaton Reversing Starter, Spring Clamp Connection (MSC-R-0,63-M7(24VDC)-PI)

Name: Eaton Reversing Starter, Spring Clamp Connection (MSC-R-0,63-M7(24VDC)-PI)
Brand: Eaton
SKU: MSC-R-0,63-M7(24VDC)-PI

Part numberMSC-R-0,63-M7(24VDC)-PIEAN / GTIN4015081982974HS code8536.50

Drives & Controllers

Motor Starters

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Product Description

Eaton MSC-R-0,63-M7(24VDC)-PI Reversing Starter, 380 V 400 V 415 V: 0.12, 0.18 kW, Ir= 0.4 - 0.63 A, 24 V DC, DC voltage.

Technical Specifications

Manufacturer part number (MPN): MSC-R-0,63-M7(24VDC)-PI
EAN / GTIN: 4015081982974
Sales unit: pcs
Eaton catalogue number: 199596
Depth: 95 mm
Height: 197 mm
Width: 90 mm
Weight: 0.975 kg
Certifications: IEC/EN 60947-4-1; VDE 0660
Catalog Notes: Also suitable for motors with efficiency class IE3.
Altitude: Max. 2000 m
Ambient operating temperature - max: 55 °C
Ambient operating temperature - min: -25 °C
Rated operational current (Ie): 0.6 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V: 0.63 A
Rated operational power at AC-3, 220/230 V, 50 Hz: 0.09 kW
Rated operational power at AC-3, 380/400 V, 50 Hz: 0.12 kW
Rated operational voltage: 230 - 415 V AC
Fitted with: Short-circuit release
Functions: Temperature compensated overload protection
Class: CLASS 10 A
Connection: Push in terminals
Connection to SmartWire-DT: No
Coordination type: 2
Degree of protection: IP20; NEMA Other
Model: IEC/UL starter
Mounting method: DIN rail
Number of auxiliary contacts (normally closed contacts): 0
Number of auxiliary contacts (normally open contacts): 0
Overload release current setting - max: 0.63 A
Overload release current setting - min: 0.63 A
Overvoltage category: III
Pollution degree: 3
Rated impulse withstand voltage (Uimp): 6000 V AC
Suitable for: Also motors with efficiency class IE3
Type: Starter with Bi-Metal release
Voltage type: DC
Power consumption (sealing) at DC: 3 W
Rated control supply voltage (Us) at DC - max: 24 V
Rated control supply voltage (Us) at DC - min: 24 V
Short-circuit release (Irm) - max: 9.8 A
With transformer: No
Power consumption: 2.6 W
Rated operation power at AC-3, 400 V: 0.12 kW
Suitable for emergency stop: No
Rated operation current Ie: 0.6 A
Overload release current setting: 0.63 A
Supporting protocol for LON: No
Supporting protocol for TCP/IP: No
Supporting protocol for ASI: No
Supporting protocol for PROFIBUS: No
Supporting protocol for CAN: No
Supporting protocol for INTERBUS: No
Supporting protocol for Modbus: No
Supporting protocol for Data-Highway: No
Supporting protocol for DeviceNet: No
Supporting protocol for SUCONET: No
Supporting protocol for other bus systems: No
External reset possible: No
Suitable for rail mounting: Yes
Rated control supply voltage DC: 24 V
Supporting protocol for SERCOS: No
Supporting protocol for INTERBUS-Safety: No
Release class: CLASS 10 A
With short-circuit release: Yes
With fuse: No
Type of electrical connection of main circuit: Spring clamp connection
Supporting protocol for AS-Interface Safety at Work: No
Supporting protocol for DeviceNet Safety: No
Supporting protocol for EtherNet/IP: No
Supporting protocol for Foundation Fieldbus: No
Supporting protocol for PROFINET CBA: No
Supporting protocol for PROFINET IO: No
Supporting protocol for PROFIsafe: No
Supporting protocol for SafetyBUS p: No
Voltage type for actuating: DC
Type of motor starter: Reversing starter
Rated operation power at AC-3, 230 V, 3-phase: 0.09 kW
Rated operation current at AC-3, 400 V: 0.63 A
Ambient temperature, upper operating limit: 55 °C
Temperature compensated overload protection: Yes
Rated conditional short-circuit current, type 2, 400 V: 50 A
Rated conditional short-circuit current, type 2, 230 V: 50 A
Coordination class according to IEC 60947-4-3: Class 2
Country of origin: Germany

Standards & Compliance

HS Code: 8536.50

Cross References

EAN 4015081982974
SAP 1200657754
Code 83089156

Product Documentation

Reversing Starter,MSC-R-0,63-M7(24VDC) (MSC-R-0,63-M7(24VDC)-PI) — Specification Data Sheet (OEM)Download

Eaton Reversing Starter, Spring Clamp Connection (MSC-R-0,63-M7(24VDC)-PI) — Specification sheet Download

Document preview: Reversing Starter,MSC-R-0,63-M7(24VDC) (MSC-R-0,63-M7(24VDC)-PI) — Specification Data Sheet (OEM)

More from Eaton

Eaton

Fr.Pl. Sealed H500 B600

BPZ-FP-600/500-BL

Eaton

Eaton FAZ-Z4/1 Miniature Circuit Breaker — 1P, Type Z, 4 A, 15 kA

Eaton

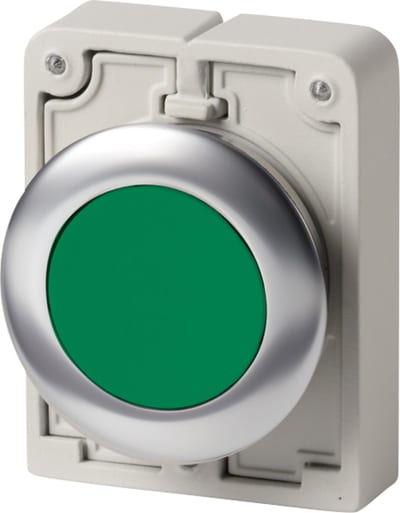

Push-button, Flat Front (M30C-FD-G)

Eaton

Mounting plate B600 H100

114801

Eaton

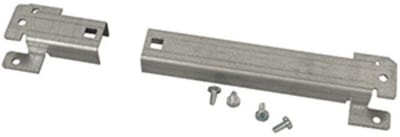

Busbar Support Bracket for Outgoing Rail xE M

XDB06

Eaton

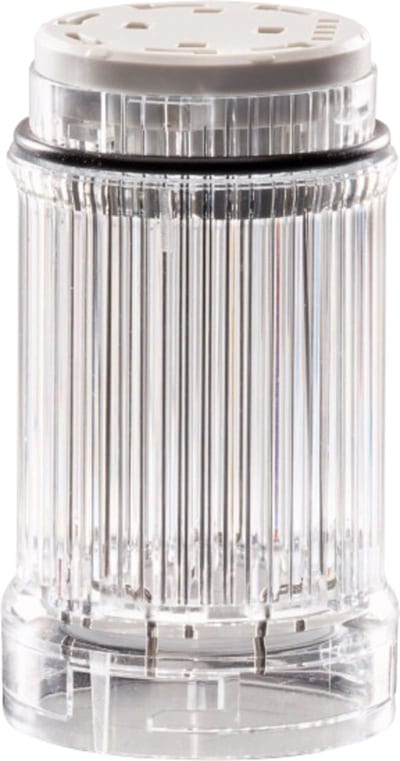

LED Steady light, White, 120V (SL4-L120-W)

Eaton

Eaton IZMX40N3-V25F-1

Eaton

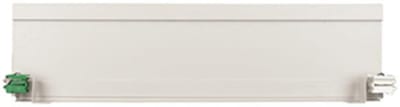

Eaton Partition Piece W=600 mm Grey Sheet-Steel
