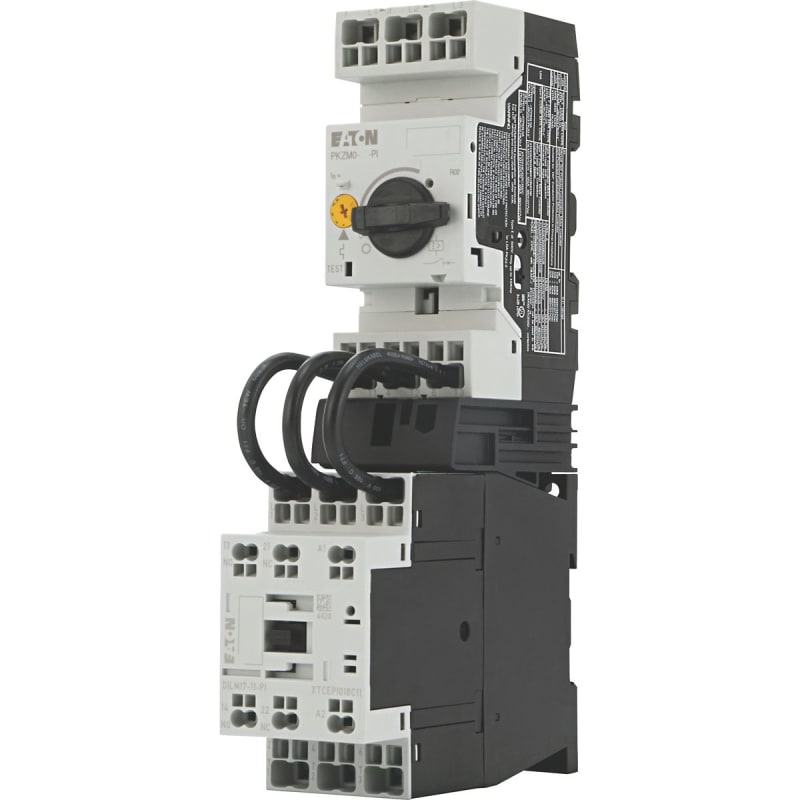

Direct-on-line starter,MSC-D-16-M17(230V50HZ)-PI (199607)

Eaton 199607 Direct-on-line starter, 380 V 400 V 415 V: 7.5 kW, Ir= 10 - 16 A, 230 V 50 Hz, 240 V 60 Hz, AC.

Manufacturer part number (MPN)

199607

EAN / GTIN

4015081983087

Sales unit

pcs

Eaton catalogue number

199607

Depth

115 mm

Height

214 mm

Width

45 mm

Weight

0.844 kg

Certifications

VDE 0660; IEC/EN 60947-4-1

Catalog Notes

Also suitable for motors with efficiency class IE3.

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Rated operational current (Ie)

15.2 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

16 A

Rated operational power at AC-3, 220/230 V, 50 Hz

4 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

7.5 kW

Rated operational voltage

230 - 415 V AC

Fitted with

Short-circuit release

Functions

Temperature compensated overload protection

Class

CLASS 10 A

Connection

Push in terminals

Connection to SmartWire-DT

No

Coordination type

2

Degree of protection

IP20; NEMA Other

Model

IEC starter

Mounting method

DIN rail

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

1

Overload release current setting - max

16 A

Overload release current setting - min

10 A

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Suitable for

Also motors with efficiency class IE3

Type

Starter with Bi-Metal release

Voltage type

AC

Power consumption, sealing, 50 Hz

2.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Short-circuit release (Irm) - max

248 A

With transformer

No

Power consumption

2.1 W

Rated operation power at AC-3, 400 V

7.5 kW

Number of auxiliary contacts as normally open contact

1

Suitable for emergency stop

No

Rated operation current Ie

15.2 A

Overload release current setting

10–16 A

Supporting protocol for LON

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

External reset possible

No

Suitable for rail mounting

Yes

Rated control supply voltage AC 50 Hz

230 V

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Release class

CLASS 10 A

With short-circuit release

Yes

With fuse

No

Type of electrical connection of main circuit

Spring clamp connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Voltage type for actuating

AC

Type of motor starter

Direct online starter (DOL)

Rated operation power at AC-3, 230 V, 3-phase

4 kW

Rated operation current at AC-3, 400 V

16 A

Ambient temperature, upper operating limit

55 °C

Temperature compensated overload protection

Yes

Rated conditional short-circuit current, type 2, 400 V

50 A

Rated conditional short-circuit current, type 2, 230 V

50 A

Coordination class according to IEC 60947-4-3

Class 2

Country of origin

Germany

HS Code

8536.50
