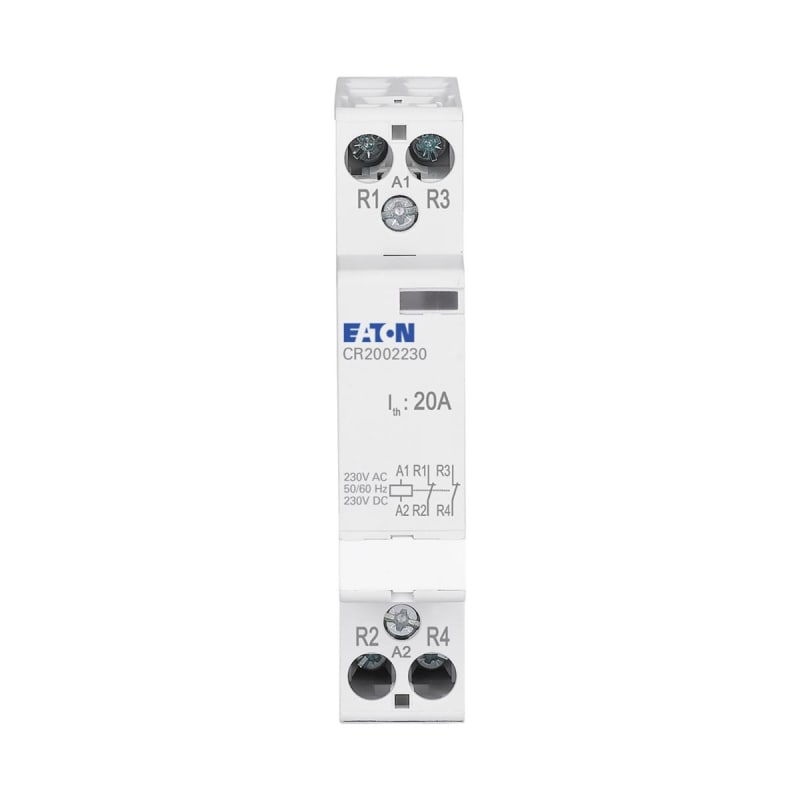

Installation Relay 20A 230V AC/DC 2NC
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Installation Relay 20A 230V AC/DC 2NC (part number CR2002230) is listed under Electrical Components / Contactors. Sales unit: pcs; Eaton catalogue number: 135169; Depth: 75 mm; Height: 80 mm; Width: 18 mm; Weight: 0.138 kg.
Technical Specifications
- Manufacturer part number (MPN)
- CR2002230
- EAN / GTIN
- 4015081319800
- Sales unit
- pcs
- Eaton catalogue number
- 135169
- Depth
- 75 mm
- Height
- 80 mm
- Width
- 18 mm
- Weight
- 0.138 kg
- Compliances
- RoHS conform
- Features
- Additional equipment possible; Hum-free
- Amperage Rating
- 20 A
- Incandescent lamp load - max
- 1950 W
- Load fluorescent lamp - max
- 910 VA
- Load fluorescent lamp (duo circuit) - max
- 1160 VA
- Load fluorescent lamp (parallel compensated) - max
- 232 VA
- Rated operating voltage (Ue) - max
- 400 V
- Rated operating voltage (Ue) - min
- 400 V
- Voltage rating (excitation) - max
- 253 V
- Voltage rating (excitation) - min
- 195.5 V
- Voltage type
- AC/DC
- Built-in depth
- 60 mm
- Degree of protection
- IP20
- Number of contacts (normally closed contacts)
- 2
- Number of contacts (normally open contacts)
- 0
- Number of modular spacings
- 1
- Utility category
- 1
- Utilization category (according to EN IEC 60947-4-1)
- AC-1
- Contact configuration
- 2 NC
- Utilization category according to EN IEC 60947-4-1
- AC-1
- Rated operating voltage
- 400 V
- Rated operation current
- 20 A
- Rated excitation voltage
- 195.5–253 V
- Number of contacts as normally closed contact
- 2
- Max. incandescent lamp load
- 1950 W
- Max. load fluorescent lamp
- 910 VA
- Slider for hand switch
- No
- Width in number of modular spacings
- 1
- Additional equipment possible
- Yes
- With day/night function
- No
- Hum-free
- Yes
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4015081319800
- SAP 1200803088
- Code 83978393
Product Documentation
More from Eaton
Eaton
Main switch,P1-40/I2H/SVB-SW
Eaton
Mounting Kit PDE1 H H200 B600 xE Basic
EP-502382
Eaton
Eaton IZMX-MIL32C-F16-1
Eaton
Wall box H×W×D=1760X600X240MM
BPZ-WB3S-600/17/2
Eaton
Front plate PDE2 xE Light (XLFP24HF26)
Eaton
Sign FOR Joystic with 4 Arrows
M22-XCK1
Eaton
Contactor DILM9-01(42V50HZ,48V60HZ)-PI
Eaton
Eaton FAZ-D50/1N Miniature Circuit Breaker — 1P+N, Type D, 50 A, 15 kA
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CR2002230?
- CR2002230 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is CR2002230.
- What is the HS code for CR2002230?
- The customs tariff (HS) code for CR2002230 is 8536.49.
- Who manufactures CR2002230?
- CR2002230 is a Eaton product in the Electrical Components range.
- Is a datasheet available for CR2002230?
- Yes — the CR2002230 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CR2002230?
- The minimum order quantity is 1.
- Is CR2002230 available?
- Yes — CR2002230 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
