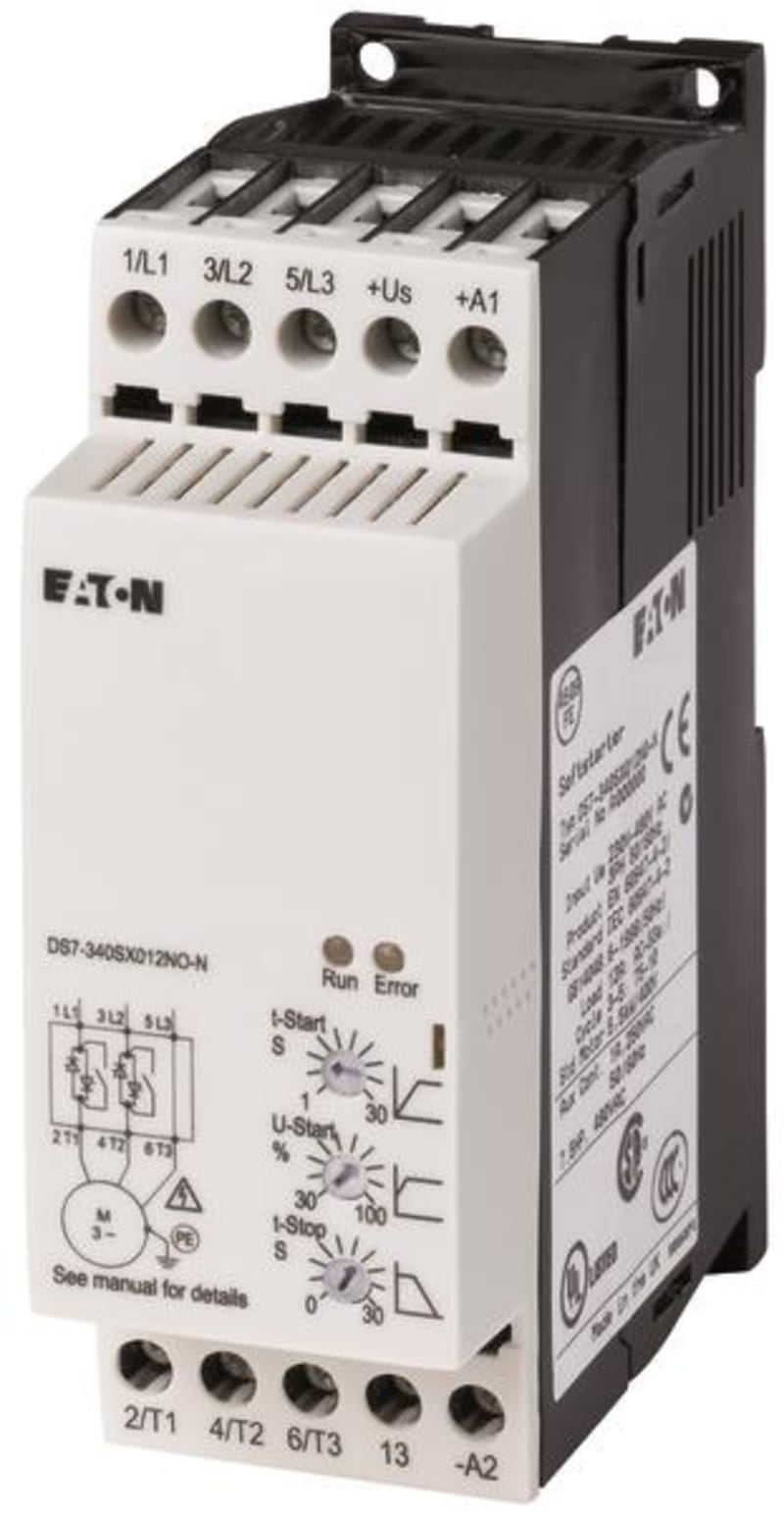

Soft starter DS7, 7 A

Eaton 171741 DS7-340SX007N0-L.

Manufacturer part number (MPN)

171741

EAN / GTIN

4015081680665

Sales unit

pcs

Eaton catalogue number

171741

Depth

94 mm

Height

130 mm

Width

45 mm

Weight

0.41 kg

Certifications

CSA-C22.2 No 0-M91; CSA22.2-14; GB 14048.6; CSA File No.: 2511305; UkrSEPRO; UL File No.: E251034; CE; CSA Class No.: 321106; CSA-C22.2 No 14-05; IEC/EN 60947-4-2; CSA; UL; UL 508; C-Tick

Mounting position

Vertical

Shock resistance

8 g, 11 ms, Mechanical

Vibration resistance

2M2 to EN 60721-3-2

Altitude

Above 1000 m with 1 % derating per 100 m; Max. 2000 m

Ambient operating temperature - max

40 °C

Ambient storage temperature - max

60 °C

Ambient operating temperature - min

-40 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Cold to EN 60068-2-1; Damp heat, constant, to IEC 60068-2-3; Damp heat, cyclic, to IEC 60068-2-30

Current consumption

50 mA, Control circuit, Regulator supply; 1.6 mA, Control circuit, Digital inputs, External 24 V

Drop-out time

350 ms, Control circuit, Digital Inputs, DC operated

Drop-out voltage

0 - 3 V

DC operated; AC operated

0 - 3 V, AC operated

Pick-up time

250 ms at AC; 250 ms at DC

Pick-up voltage

17.3 - 27 V AC; 17.3 - 27 V DC

Rated control supply voltage (Us) at AC

50 Hz - max

24 V

Rated control supply voltage (Us) at AC

50 Hz - min

24 V

Rated control supply voltage (Us) at AC

60 Hz - max

24 V

Rated control supply voltage (Us) at AC

60 Hz - min

24 V

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Equipment heat dissipation, current-dependent Pvid

0.35 W

Rated operational current for specified heat dissipation (In)

7 A

Static heat dissipation, non-current-dependent Pvs

0.35 W

Fitted with

Internal bypass; Internal bypass contacts

Functions

Suppression of DC components for motors; Potential isolation between power and control sections; Soft start function; Suppression of closing transients; Single direction; Min. ramp time 1 s - fast switching (semiconductor contactor)

Class

Other

Connection to SmartWire-DT

No

Degree of protection

IP20; NEMA 1

Frame size

FS1

Mains voltage - max

480 V

Mains voltage - min

200 V

Overvoltage category

II

Pollution degree

2

Radio interference class

Class B (EN 55011)

Suitable for

Branch circuits, (UL/CSA)

Type

Soft starter for three-phase loads

Voltage type

AC/DC

Number of outputs

1 Relay Output (TOR)

Output voltage

24 V AC/DC

Protection

Finger and back-of-hand proof, Protection against direct contact

Rated control voltage (Uc)

24 V DC (-15 %/+10 %); 24 V DC; 24 V AC

Rated operational current (Ie) at AC-11

1 A

Overload cycle

AC-53a: 3 - 5: 75 - 10

Rated operational current (Ie) at AC-53

7 A

Rated operational voltage (Ue) - max

480 V

Rated operational voltage (Ue) - min

230 V

Short-circuit protection rating

PKM0-10 (+ CL-PKZ0), Type “1” coordination, Main conducting paths; 3 x 170M1361, Type „2“ coordination (additional with the fuses for coordination type „1“), Main conducting paths

Supply frequency

50/60 Hz, fLN, Main circuit

Voltage rating - max

480 V

Assigned motor power at 200/208 V, 60 Hz

3-phase

2 HP

Assigned motor power at 220/230 V, 60 Hz

Assigned motor power at 460/480 V, 60 Hz

3-phase

5 HP

Rated operational power at 220/230 V

50 Hz

1.5 kW

Rated operational power at 400 V

50 Hz

3 kW

Application

1-phase motors: No 3-phase motors: Yes Soft starting of three-phase asynchronous motors

Delay time

0 - 30 s, Soft start function, Ramp times

Ramp/run-up time

30 s

Start voltage

Min. 30 %, Soft start function, Start voltage = turn-off voltage; Max. 100 %, Soft start function, Start voltage = turn-off voltage

Screwdriver size

PZ2, 1 x 6 mm, Terminal screw, Standard screwdriver; 0.6 x 5.5 mm/1 x 6 mm, Terminal screws, Control circuit cables

Terminal capacity (flexible with ferrule)

1 x (0.75 - 2.5) mm², Control circuit cables; 1 x (0.75 - 2.5) mm², Main cables; 2 x (0.75 - 2.5) mm², Control circuit cables; 2 x (0.75 - 2.5) mm², Main cables

Terminal capacity (solid)

2 x (0.75 - 2.5) mm², Control circuit cables; 1 x (0.75 - 4) mm², Control circuit cables; 2 x (0.75 - 2.5) mm², Main cables; 1 x (0.75 - 4) mm², Main cables

Terminal capacity (solid/stranded AWG)

18 - 10, Main cables; 18 - 10, Control circuit cables

Tightening torque

1.2 Nm; 1.2 Nm, Screw terminals, Control circuit cables

With display

No

Rated operating voltage Ue

230–460 V

Rated control supply voltage AC 50 Hz

24 V

Rated control supply voltage AC 60 Hz

24 V

Rated control supply voltage DC

24 V

Rated operation current Ie at 40 °C Tu

7 A

Rated power three-phase motor, inline, at 230 V

1.5 kW

Rated power three-phase motor, inline, at 400 V

3 kW

Rated surrounding temperature without derating

40 °C

Integrated motor overload protection

No

Voltage type for actuating

AC/DC

Internal bypass

Yes

Torque control

No

Country of origin

United Kingdom

HS Code

8537.10
