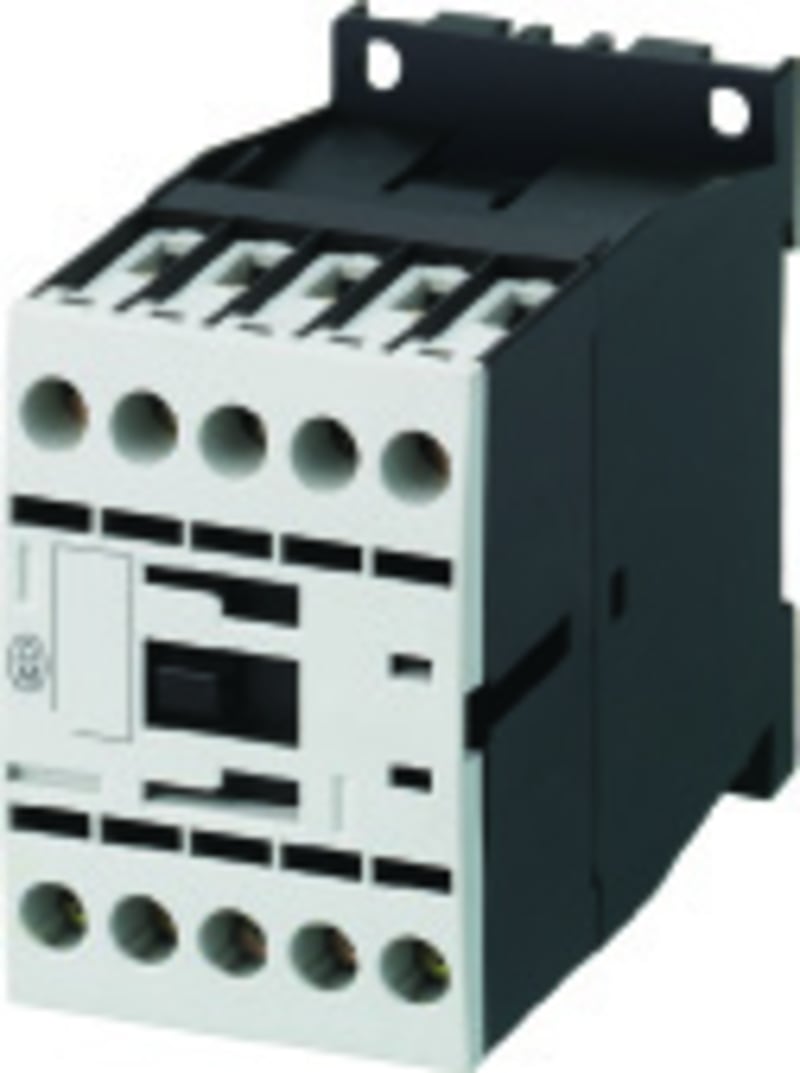

Eaton Contactor DILM15-10, 3-Pole, 7.5 kW, 230 V/240 V AC, Screw Terminals

Eaton DILM15-10(230V50HZ,240V60HZ) contactor, 3-pole, 380 V/400 V 7.5 kW motor rating with one normally-open auxiliary contact. AC coil rated 230 V 50 Hz / 240 V 60 Hz, screw terminals for control and power connections. Certified to IEC/EN 60947-4-1 and UL 60947-4-1 for motor switching duty.

Manufacturer part number (MPN)

DILM15-10(230V50HZ,240V60HZ)

EAN / GTIN

4015082900588

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

290058

Depth

75 mm

Height

68 mm

Width

45 mm

Weight

0.24 kg

Compliances

CE Marked; RoHS Compliant

Certifications

UL Listed; EN 60947; CSA Certified; IEC 60947; UL File No.: E29096; CSA Class No.: 2411-03, 3211-04; CE; UL; IEC/EN 60947-4-1; CSA; IEC/EN 60947; VDE 0660; CSA-C22.2 No. 60947-4-1-14; UL 60947-4-1; UL Category Control No.: NLDX; CSA File No.: 012528

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

1

Number of contacts

1 NO

Number of contacts (normally open contacts)

1

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

45 A

Conventional thermal current Ith (3-pole, enclosed)

18 A

Conventional thermal current Ith at 55°C (3-pole, open)

21 A

Conventional thermal current Ith at 60°C (3-pole, open)

20 A

Conventional thermal current Ith of main contacts (1-pole, open)

50 A

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0.5 W

Rated operational current for specified heat dissipation (In)

15.5 A

Static heat dissipation, non-current-dependent Pvs

1.4 W

Rated breaking capacity at 220/230 V

124 A

Rated breaking capacity at 380/400 V

124 A

Rated breaking capacity at 500 V

100 A

Rated breaking capacity at 660/690 V

70 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

155 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

22 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

15.5 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

15.5 A

Rated operational current (Ie) at AC-3, 440 V

15.5 A

Rated operational current (Ie) at AC-3, 500 V

12.5 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

9 A

Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V

7 A

Rated operational current (Ie) at AC-4, 440 V

7 A

Rated operational current (Ie) at AC-4, 500 V

6 A

Rated operational current (Ie) at AC-4, 660 V, 690 V

5 A

Rated operational current (Ie) at DC-1, 110 V

20 A

Rated operational current (Ie) at DC-1, 220 V

15 A

Rated operational current (Ie) at DC-1, 60 V

20 A

Rated operational power at AC-3, 240 V, 50 Hz

4.6 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

7.5 kW

Rated operational power at AC-3, 415 V, 50 Hz

8 kW

Rated operational power at AC-3, 440 V, 50 Hz

8.4 kW

Rated operational power at AC-3, 500 V, 50 Hz

7.5 kW

Rated operational power at AC-3, 690 V, 50 Hz

7 kW

Rated operational power at AC-4, 220/230 V, 50 Hz

2 kW

Rated operational power at AC-4, 240 V, 50 Hz

2.2 kW

Rated operational power at AC-4, 415 V, 50 Hz

3.4 kW

Rated operational power at AC-4, 440 V, 50 Hz

3.6 kW

Rated operational power at AC-4, 500 V, 50 Hz

3.5 kW

Rated operational power at AC-4, 660/690 V, 50 Hz

4.4 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP20

Lifespan, mechanical

10,000,000 Operations (AC operated)

Operating frequency

5000 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance per pole

2.5 mΩ

Type

Full voltage non-reversing miniature contactor

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

AC

Frame size

FS1

Arcing time

10 ms

Coil voltage

230-240 Vac, 50/60 Hz

Drop-out voltage

AC operated: 0.6 - 0.3 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc

Power consumption, pick-up, 50 Hz

24 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, pick-up, 60 Hz

30 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing, 50 Hz

1.4 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz; 3.4 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, sealing, 60 Hz

4.4 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 1.4 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

240 V

Switching time (AC operated, make contacts, closing delay) - max

21 ms

Switching time (AC operated, make contacts, closing delay) - min

15 ms

Switching time (AC operated, make contacts, opening delay) - max

18 ms

Switching time (AC operated, make contacts, opening delay) - min

9 ms

Power consumption

7.5 kW

Assigned motor power at 115/120 V, 60 Hz, 1-phase

1 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

5 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

3 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

5 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

10 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

10 HP

Safe isolation

400 V AC, Between coil and contacts, According to EN 61140; 400 V AC, Between the contacts, According to EN 61140

Short-circuit current rating (basic rating)

5 kA, 45 A max. fuse, SCCR (UL/CSA); 5 kA, 45 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

100 kA, 60 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 25 A CLASS RK5 max. fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

100 kA, 60 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 25 A CLASS RK5 max. fuse, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 400 V

63 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

50 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

20 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

20 A gG/gL

Special purpose rating of definite purpose rating

90 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 15 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

HS Code

8536.90

• EAN 4015082900588
• SAP 1000288730
• Code 8297066
