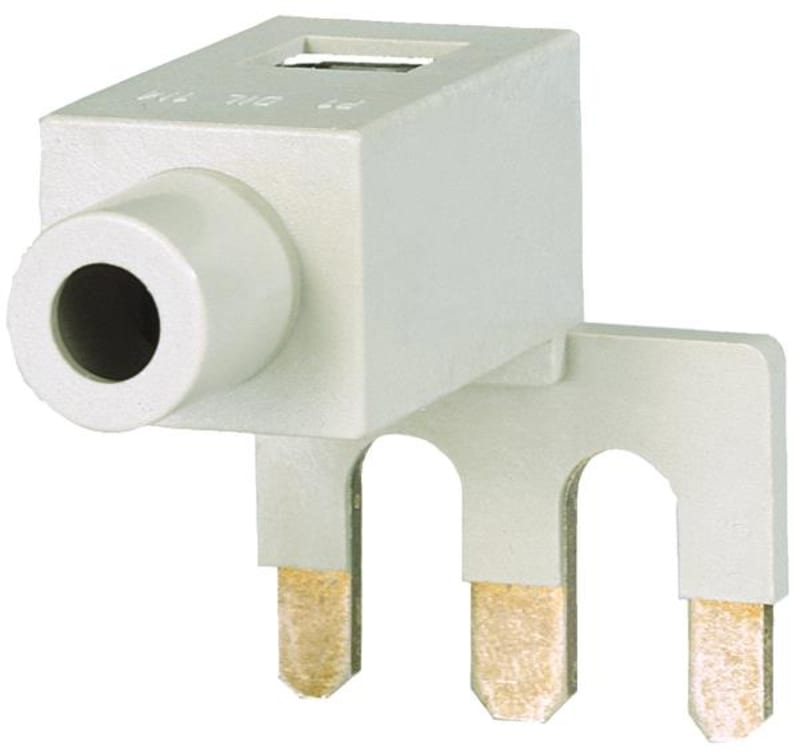

Parallellconnection DILM32-XP1

Eaton DILM32-XP1 Parallellkobling, for DILM17-32.

Manufacturer part number (MPN)

DILM32-XP1

EAN / GTIN

4015082811945

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

281194

Depth

43 mm

Height

42 mm

Width

33 mm

Weight

0.055 kg

Certifications

IEC/EN 60947-4-1; CSA-C22.2 No. 14-05; UL 508; UL File No.: E29096; CSA File No.: 012528; CE; CSA Class No.: 3211-03; UL Category Control No.: NLDX; CSA; UL

Catalog Notes

AC1 current carrying capacity of the open contactor increases by a factor of 2.5

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Conventional thermal current Ith of main contacts (1-pole, open)

100 A

Equipment heat dissipation, current-dependent Pvid

0.3 W

Heat dissipation per pole, current-dependent Pvid

0.1 W

Rated operational current for specified heat dissipation (In)

115 A

Accessory/spare part type

Connecting bridge

Product category

Accessories

Protection

Protected against accidental contact in accordance to VDE 0106 part 100

Short-circuit current rating (basic rating)

5 kA, SCCR (UL/CSA); 125 A, max. Fuse, SCCR (UL/CSA); 125 A, max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

10/100 kA, Fuse, SCCR (UL/CSA); 10/65 kA, CB, SCCR (UL/CSA); 50/32 A, max. CB, SCCR (UL/CSA); 125/70 A, Class J, max. Fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

10/22 kA, CB, SCCR (UL/CSA); 125/125 A, Class J, max. Fuse, SCCR (UL/CSA); 10/100 kA, Fuse, SCCR (UL/CSA); 50/32 A, max. CB, SCCR (UL/CSA)

Screwdriver size

2, Terminal screw, Pozidriv screwdriver

Terminal capacity

1 x (16 - 50) mm²; 1 x (16 - 35) mm²; 16 mm², solid

Tightening torque

4 Nm, Screw terminal

Type of accessory/spare part

Connecting bridge

Accessory

Yes

Spare part

No

Country of origin

Germany

HS Code

8538.90
