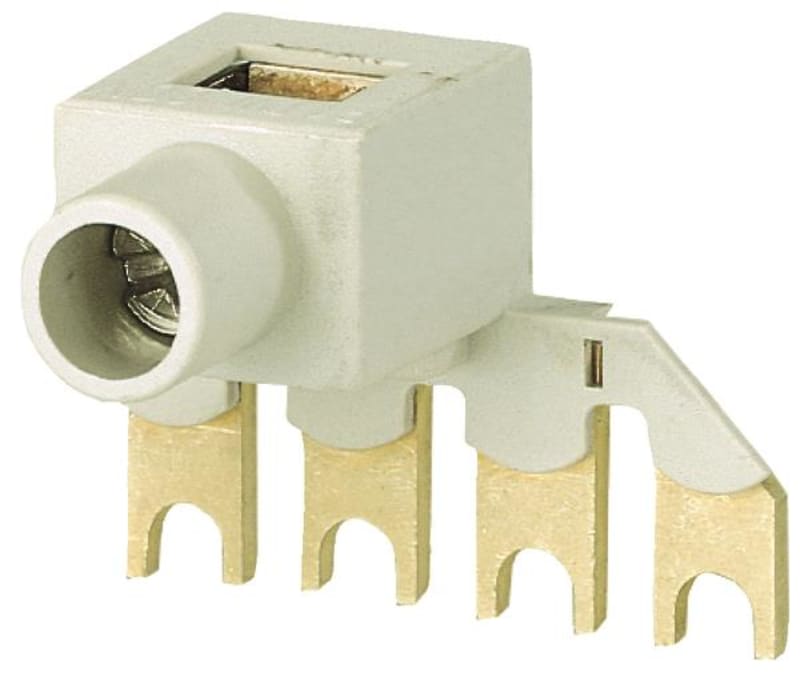

Parallellconnection DILM12-XP1

Eaton DILM12-XP1 Parallellkobling, for DILM7-12/MP20.

Manufacturer part number (MPN)

DILM12-XP1

EAN / GTIN

4015082811938

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

281193

Depth

34 mm

Height

30 mm

Width

32 mm

Weight

0.039 kg

Certifications

CSA File No.: 012528; IEC/EN 60947-4-1; UL Category Control No.: NLDX; CSA; CSA-C22.2 No. 14-05; CE; UL 508; UL File No.: E29096; CSA Class No.: 3211-03; UL

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Conventional thermal current Ith of main contacts (1-pole, open)

50 A

Equipment heat dissipation, current-dependent Pvid

0.2 W

Heat dissipation per pole, current-dependent Pvid

0.2 W

Rated operational current for specified heat dissipation (In)

50 A

Accessory/spare part type

Connecting bridge

Product category

Accessories

Protection

Protected against accidental contact in accordance to VDE 0106 part 100

Screwdriver size

2, Terminal screw, Pozidriv screwdriver

Terminal capacity

1 - 16 mm², solid; 1 x (0.5 - 25) mm², stranded; 2 x (0.5 - 16) mm², flexible with ferrule; 6 x 9 x 0.8 mm Number of segments x width x thickness, Flat conductor; 2 x (0.5 - 16) mm², stranded; 1 x (0.5 - 25) mm², flexible with ferrule

Tightening torque

4 Nm, Screw terminal

Type of accessory/spare part

Connecting bridge

Accessory

Yes

Spare part

No

Country of origin

Germany

HS Code

8538.90
