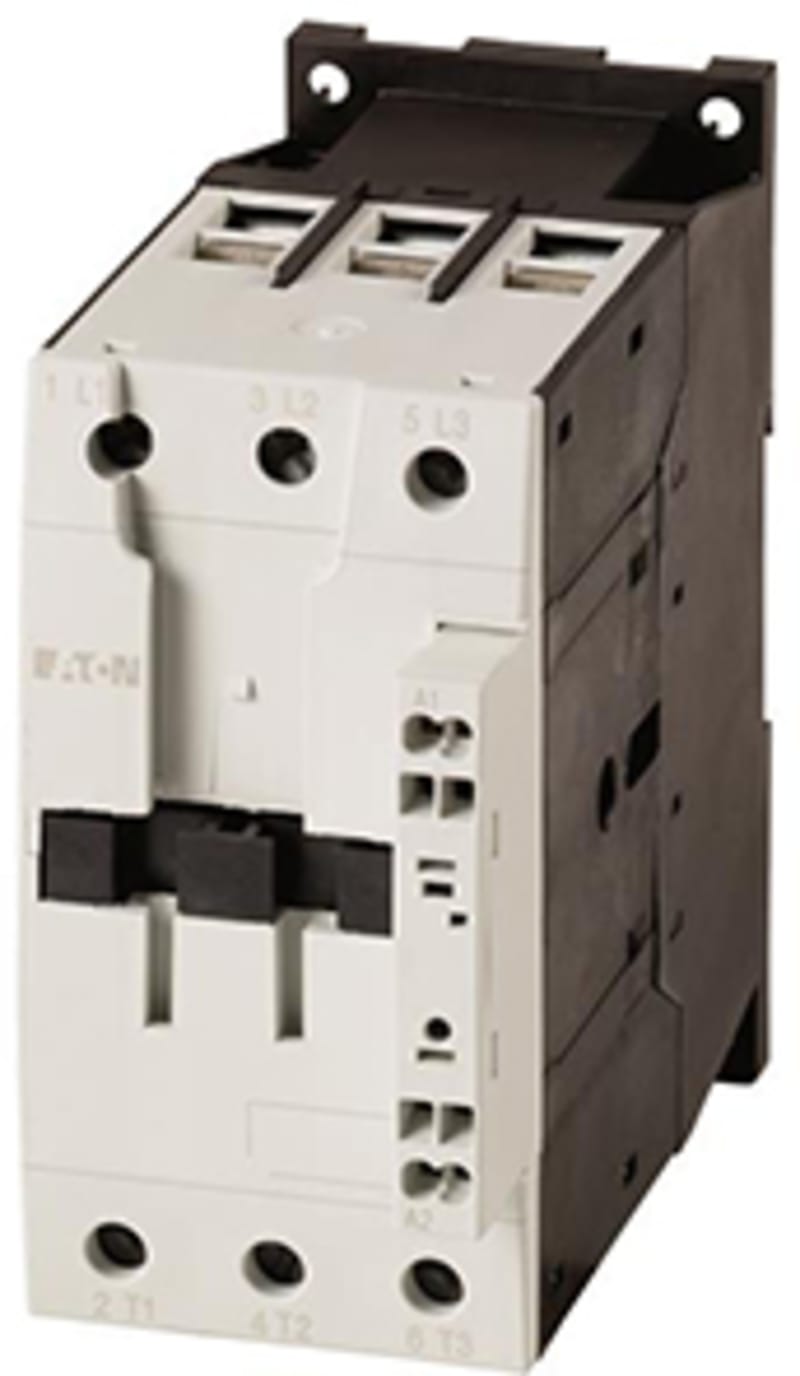

Contactor DILMC40(RDC24)

Eaton DILMC40(RDC24) Contactor, 3 poles, 400V 18.5 kW, RDC 24: 24 - 27 V DC.

Manufacturer part number (MPN)

DILMC40(RDC24)

EAN / GTIN

4015082779795

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

277979

Depth

132.1 mm

Height

115 mm

Width

55 mm

Weight

1.042 kg

Certifications

UL 60947-4-1; UL File No.: E29096; CSA File No.: 012528; CE; IEC/EN 60947; IEC/EN 60947-4-1; UL Category Control No.: NLDX; UL; CSA-C22.2 No. 60947-4-1-14; CSA Class No.: 2411-03, 3211-04; CSA; VDE 0660

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

112 A

Conventional thermal current Ith (3-pole, enclosed)

45 A

Conventional thermal current Ith at 55°C (3-pole, open)

55 A

Conventional thermal current Ith at 60°C (3-pole, open)

50 A

Conventional thermal current Ith of main contacts (1-pole, open)

125 A

Equipment heat dissipation, current-dependent Pvid

6.6 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

2.2 W

Rated operational current for specified heat dissipation (In)

40 A

Static heat dissipation, non-current-dependent Pvs

1 W

Rated breaking capacity at 220/230 V

400 A

Rated breaking capacity at 380/400 V

400 A

Rated breaking capacity at 500 V

400 A

Rated breaking capacity at 660/690 V

250 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

560 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

60 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

40 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

40 A

Rated operational current (Ie) at AC-3, 440 V

40 A

Rated operational current (Ie) at AC-3, 500 V

40 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

25 A

Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V

18 A

Rated operational current (Ie) at AC-4, 440 V

18 A

Rated operational current (Ie) at AC-4, 500 V

18 A

Rated operational current (Ie) at AC-4, 660 V, 690 V

14 A

Rated operational current (Ie) at DC-1, 110 V

50 A

Rated operational current (Ie) at DC-1, 220 V

45 A

Rated operational current (Ie) at DC-1, 60 V

50 A

Rated operational power at AC-3, 240 V, 50 Hz

13.5 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

18.5 kW

Rated operational power at AC-3, 415 V, 50 Hz

24 kW

Rated operational power at AC-3, 440 V, 50 Hz

25 kW

Rated operational power at AC-3, 500 V, 50 Hz

28 kW

Rated operational power at AC-3, 690 V, 50 Hz

23 kW

Rated operational power at AC-4, 220/230 V, 50 Hz

5 kW

Rated operational power at AC-4, 240 V, 50 Hz

5.5 kW

Rated operational power at AC-4, 415 V, 50 Hz

9.5 kW

Rated operational power at AC-4, 440 V, 50 Hz

10 kW

Rated operational power at AC-4, 500 V, 50 Hz

11 kW

Rated operational power at AC-4, 660/690 V, 50 Hz

12 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Suppressor circuit in actuating electronics

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Spring-loaded terminals; Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (DC operated)

Operating frequency

5000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance per pole

1.9 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

DC

Frame size

FS3

Arcing time

10 ms

Drop-out voltage

0.6 - 0.15 x UC, DC operated; At least smoothed two-phase bridge rectifier or three-phase rectifier

Duty factor

100 %

Pick-up voltage

0.7 - 1.2 V DC x Uc; 24 - 27 V DC (RDC 24)

Power consumption (pick-up) at DC

24 W

Power consumption (sealing) at DC

1 W

Rated control supply voltage (Us) at DC - max

27 V

Rated control supply voltage (Us) at DC - min

24 V

Switching time (DC operated, make contacts, closing delay) - max

54 ms

Switching time (DC operated, make contacts, opening delay) - max

24 ms

Assigned motor power at 115/120 V, 60 Hz, 1-phase

3 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

10 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

7.5 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

15 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

30 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

40 HP

Safe isolation

440 V AC, Between coil and contacts, According to EN 61140; 440 V AC, Between the contacts, According to EN 61140

Short-circuit current rating (basic rating)

5 kA, 250 A max. fuse, SCCR (UL/CSA); 5 kA, 250 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

100 kA, 150 A CLASS J max. fuse, SCCR (UL/CSA); 65 kA, 100 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

100 kA, 150 A CLASS J max. fuse, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 400 V

125 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

80 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

63 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

50 A gG/gL

Special purpose rating of elevator control

25 HP, 480 V 60 Hz 3-ph, (UL/CSA); 32 A, 600 V 60 Hz 3-ph, (UL/CSA); 30 HP, 600 V 60 Hz 3-ph, (UL/CSA); 10 HP, 240 V 60 Hz 3-ph, (UL/CSA); 34 A, 480 V 60 Hz 3-ph, (UL/CSA); 7.5 HP, 200 V 60 Hz 3-ph, (UL/CSA); 28 A, 240 V 60 Hz 3-ph, (UL/CSA); 25.3 A, 200 V 60 Hz 3-ph, (UL/CSA)

Special purpose rating of resistance air heating

79 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA); 79 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of tungsten incandescent lamps

74 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA); 74 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of ballast electrical discharge lamps

79 A (600V 60Hz 3phase, 347V 60Hz 1phase); 79 A (480V 60Hz 3phase, 277V 60Hz 1phase)

Switching capacity (main contacts, general use)

63 A, Maximum motor rating (UL/CSA)

Screw size

M6, Terminal screw, Main cables

Screwdriver size

2, Terminal screw, Main cables, Pozidriv screwdriver; 3.5 mm, Spring-loaded terminals, Control circuit cables; 0.8 x 5.5/1 x 6 mm, Terminal screw, Main cables, Standard screwdriver

Stripping length (control circuit cable)

10 mm

Stripping length (main cable)

14 mm

Terminal capacity (copper band)

2 x (6 x 9 x 0.8) mm (Number of segments x width x thickness), Main cables

Terminal capacity (flexible)

1 x (0.75 - 2.5) mm², Control circuit cables, Spring-loaded terminals; 2 x (0.75 - 2.5) mm², Control circuit cables, Spring-loaded terminals

HS Code

8536.90
