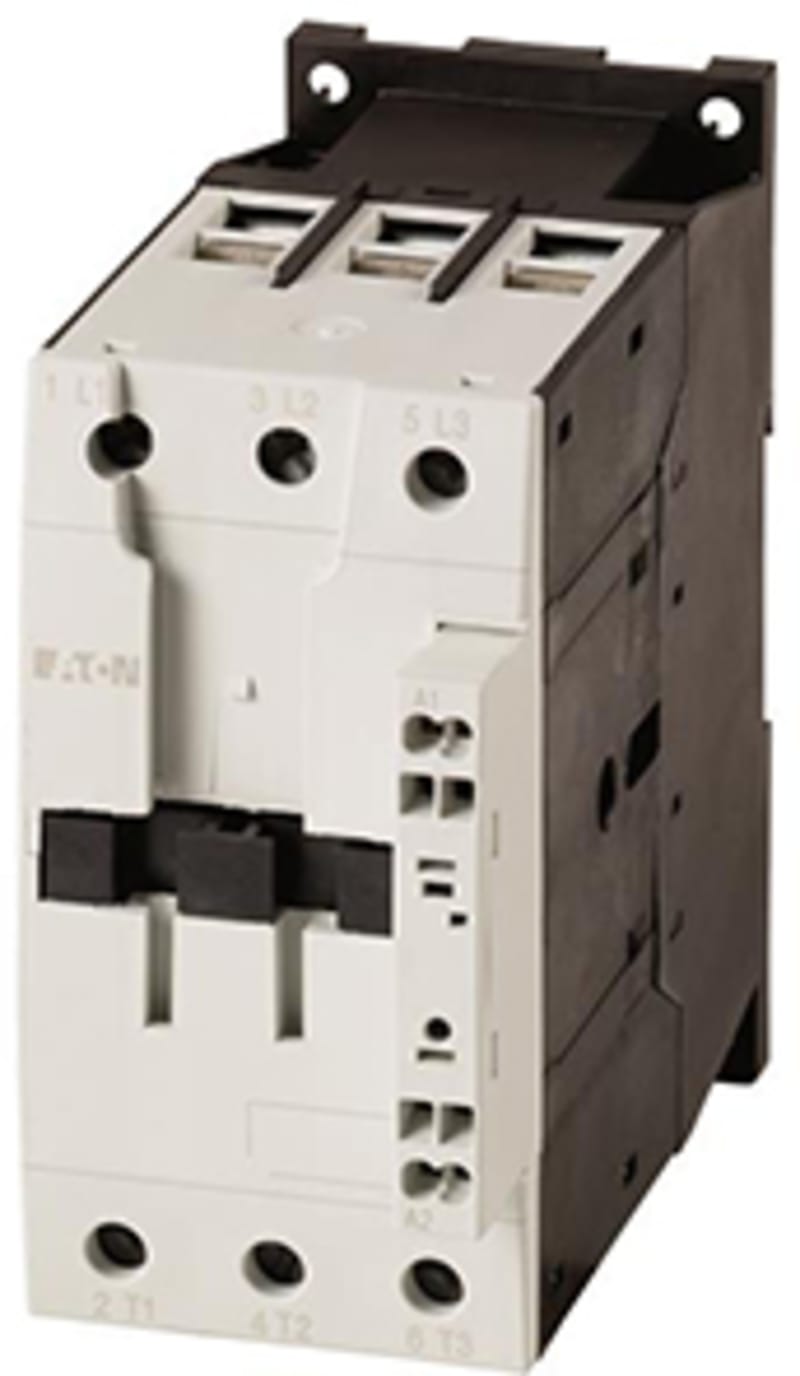

Contactor, DILMC40(230V50HZ) (DILMC40(230V50HZ,240V60HZ))

Eaton DILMC40(230V50HZ,240V60HZ) Contactor, 3 poles, 400V 18.5 kW, 230 V 50 Hz, 240 V 60 Hz.

Manufacturer part number (MPN)

DILMC40(230V50HZ,240V60HZ)

EAN / GTIN

4015082779658

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

277965

Depth

132.1 mm

Height

115 mm

Width

55 mm

Weight

0.872 kg

Certifications

CSA Class No.: 2411-03

3211-04; CSA File No.

012528; CSA-C22.2 No. 60947-4-1-14; IEC/EN 60947-4-1; CE; IEC/EN 60947; UL 60947-4-1; UL Category Control No.: NLDX; VDE 0660; CSA; UL; UL File No.: E29096

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

112 A

Conventional thermal current Ith (3-pole, enclosed)

45 A

Conventional thermal current Ith at 55°C (3-pole, open)

55 A

Conventional thermal current Ith at 60°C (3-pole, open)

50 A

Conventional thermal current Ith of main contacts (1-pole, open)

125 A

Equipment heat dissipation, current-dependent Pvid

6.6 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

2.2 W

Rated operational current for specified heat dissipation (In)

40 A

Static heat dissipation, non-current-dependent Pvs

4.1 W

Rated breaking capacity at 220/230 V

400 A

Rated breaking capacity at 380/400 V

400 A

Rated breaking capacity at 500 V

400 A

Rated breaking capacity at 660/690 V

250 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

560 A

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

60 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

40 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

40 A

Rated operational current (Ie) at AC-3

440 V

40 A

Rated operational current (Ie) at AC-3

500 V

40 A

Rated operational current (Ie) at AC-3, 660 V

690 V

25 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

18 A

Rated operational current (Ie) at AC-4

440 V

18 A

Rated operational current (Ie) at AC-4

500 V

18 A

Rated operational current (Ie) at AC-4, 660 V

690 V

14 A

Rated operational current (Ie) at DC-1

110 V

50 A

Rated operational current (Ie) at DC-1

220 V

45 A

Rated operational current (Ie) at DC-1

60 V

50 A

Rated operational power at AC-3, 240 V

50 Hz

13.5 kW

Rated operational power at AC-3, 380/400 V

50 Hz

18.5 kW

Rated operational power at AC-3, 415 V

50 Hz

24 kW

Rated operational power at AC-3, 440 V

50 Hz

25 kW

Rated operational power at AC-3, 500 V

50 Hz

28 kW

Rated operational power at AC-3, 690 V

50 Hz

23 kW

Rated operational power at AC-4, 220/230 V

50 Hz

5 kW

Rated operational power at AC-4, 240 V

50 Hz

5.5 kW

Rated operational power at AC-4, 415 V

50 Hz

9.5 kW

Rated operational power at AC-4, 440 V

50 Hz

10 kW

Rated operational power at AC-4, 500 V

50 Hz

11 kW

Rated operational power at AC-4, 660/690 V

50 Hz

12 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Spring-loaded terminals; Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (AC operated)

Operating frequency

5000 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance per pole

1.9 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

AC

Frame size

FS3

Arcing time

10 ms

Drop-out voltage

AC operated: 0.6 - 0.3 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc

Power consumption, pick-up

50 Hz

149 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, pick-up

60 Hz

178 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing

50 Hz

4.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz; 16 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

HS Code

8536.90

• EAN 4015082779658
• SAP 1200236522
• Code 82234394
