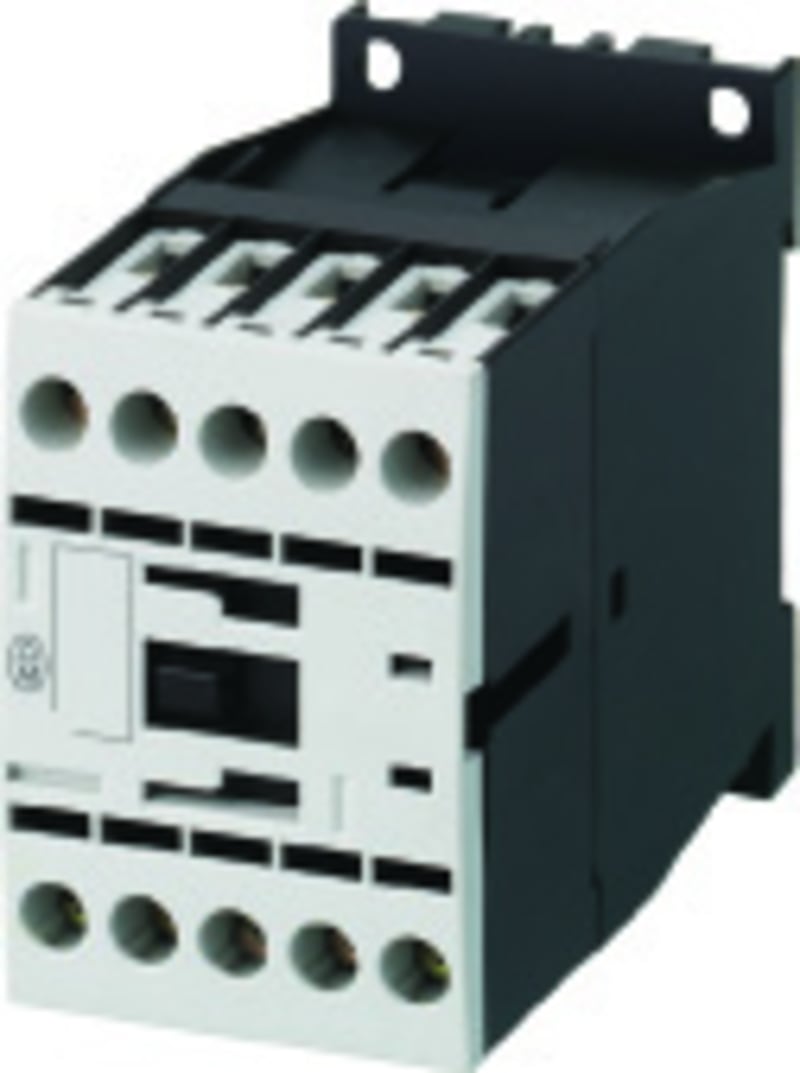

Eaton DILM7-01 3-Pole Contactor, 3 kW at 400 V, 1 NC, 24 V DC Coil

Eaton DILM7-01(24VDC) contactor, 3-pole, 380 V 400 V 3 kW, 1 NC, 24 V DC, DC operated, screw terminals.

Manufacturer part number (MPN)

DILM7-01(24VDC)

EAN / GTIN

4015082766009

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

276600

Depth

75 mm

Height

68 mm

Width

45 mm

Weight

0.296 kg

Certifications

CSA; CE; UL; VDE 0660; UL 60947-4-1; UL Category Control No.: NLDX; CSA Class No.: 2411-03

3211-04; CSA File No.

012528; IEC/EN 60947; CSA-C22.2 No. 60947-4-1-14; IEC/EN 60947-4-1; UL File No.: E29096

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

Yes; In conjunction with DIL-SWD SmartWire DT contactor module

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

45 A

Conventional thermal current Ith (3-pole, enclosed)

18 A

Conventional thermal current Ith at 55°C (3-pole, open)

21 A

Conventional thermal current Ith of main contacts (1-pole, open)

50 A

Equipment heat dissipation, current-dependent Pvid

0.3 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0.1 W

Rated operational current for specified heat dissipation (In)

7 A

Static heat dissipation, non-current-dependent Pvs

3 W

Rated breaking capacity at 220/230 V

70 A

Rated breaking capacity at 380/400 V

70 A

Rated breaking capacity at 500 V

50 A

Rated breaking capacity at 660/690 V

40 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

112 A

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

22 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

7 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

7 A

Rated operational current (Ie) at AC-3

440 V

7 A

Rated operational current (Ie) at AC-3

500 V

5 A

Rated operational current (Ie) at AC-3, 660 V

690 V

4 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

5 A

Rated operational current (Ie) at AC-4

440 V

5 A

Rated operational current (Ie) at AC-4

500 V

4.5 A

Rated operational current (Ie) at AC-4, 660 V

Rated operational current (Ie) at DC-1

110 V

20 A

Rated operational current (Ie) at DC-1

220 V

15 A

Rated operational current (Ie) at DC-1

60 V

20 A

Rated operational power at AC-3, 240 V

50 Hz

2.2 kW

Rated operational power at AC-3, 380/400 V

50 Hz

3 kW

Rated operational power at AC-3, 415 V

50 Hz

4 kW

Rated operational power at AC-4, 220/230 V

50 Hz

1 kW

Rated operational power at AC-4, 240 V

50 Hz

1.5 kW

Rated operational power at AC-4, 415 V

50 Hz

2.3 kW

Rated operational power at AC-4, 440 V

50 Hz

2.4 kW

Rated operational power at AC-4, 500 V

50 Hz

2.5 kW

Rated operational power at AC-4, 660/690 V

50 Hz

2.9 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Mirror contact; Varistor suppressor circuit

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP20

Lifespan, mechanical

10,000,000 Operations (DC operated)

Operating frequency

9000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance per pole

4.6 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running; AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

DC

Arcing time

10 ms

Drop-out voltage

At least smoothed two-phase bridge rectifier or three-phase rectifier; 0.6 - 0.15 x UC, DC operated

Duty factor

100 %

Pick-up voltage

0.7 - 1.3 V DC x Uc (without auxiliary contact module and at ambient air temperature + 40 °C); 0.8 - 1.1 V DC x Uc; 0.85 - 1.1 V DC x Uc (only with auxiliary contact module with 3 or more N/C contacts)

Power consumption (pick-up) at DC

3 W

Power consumption (sealing) at DC

3 W

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Switching time (DC operated, make contacts, closing delay) - max

31 ms

Switching time (DC operated, make contacts, opening delay) - max

12 ms

Assigned motor power at 115/120 V, 60 Hz

1-phase

0.25 HP

Assigned motor power at 200/208 V, 60 Hz

3-phase

1.5 HP

Assigned motor power at 230/240 V, 60 Hz

1-phase

1 HP

Assigned motor power at 230/240 V, 60 Hz

3-phase

2 HP

Assigned motor power at 460/480 V, 60 Hz

HS Code

8536.90

• EAN 4015082766009
• SAP 1000289182
• Code 81038673
