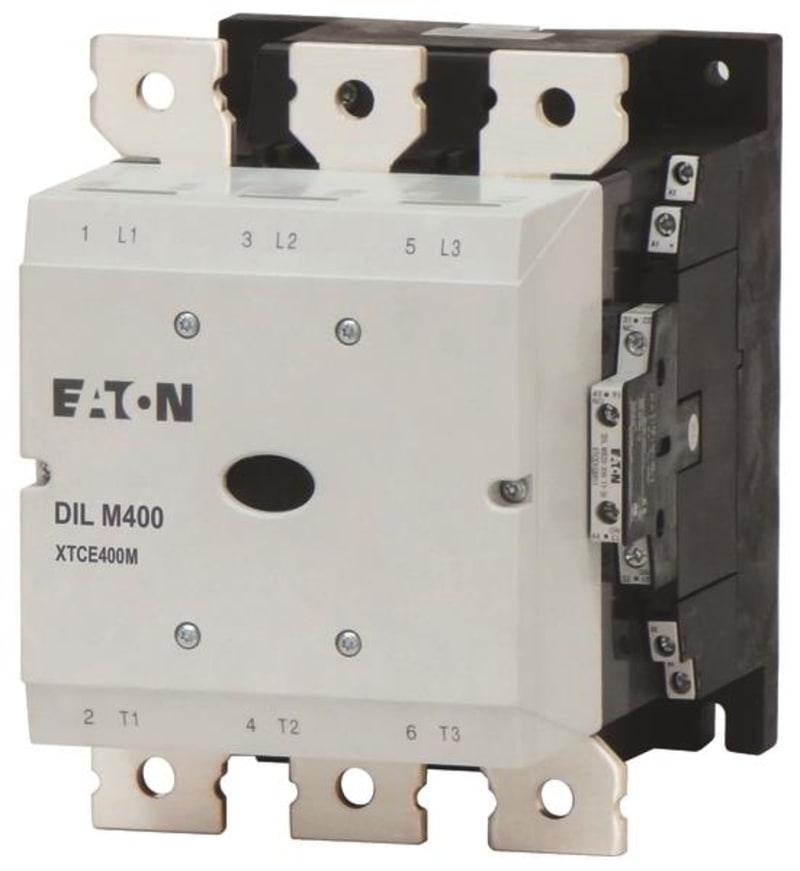

Contactor DILM400/22(RDC48)

Eaton DILM400/22(RDC48) Contactor, 380 V 400 V 212 kW, 2 N/O, 2 NC, RDC 48: 24 - 48 V DC, DC operated, Screw connection.

Manufacturer part number (MPN)

DILM400/22(RDC48)

EAN / GTIN

4015082082079

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

208207

Depth

216 mm

Height

209 mm

Width

160 mm

Weight

8.54 kg

Conventional thermal current Ith (1-pole, enclosed)

1125 A

Conventional thermal current Ith (3-pole, enclosed)

450 A

Conventional thermal current Ith at 40°C (3-pole, open)

612 A

Conventional thermal current Ith at 50°C (3-pole, open)

548 A

Conventional thermal current Ith at 55°C (3-pole, open)

522 A

Conventional thermal current Ith at 60°C (3-pole, open)

500 A

Conventional thermal current Ith of main contacts (1-pole, open)

1250 A

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-40 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-40 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of auxiliary contacts (normally closed contacts)

2

Number of auxiliary contacts (normally open contacts)

2

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

2

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

12.33 W

Rated operational current for specified heat dissipation (In)

400 A

Static heat dissipation, non-current-dependent Pvs

6.4 W

Inrush current

Max. 30 x Ie (peak)

Rated breaking capacity at 1000 V

950 A

Rated breaking capacity at 220/230 V

5000 A

Rated breaking capacity at 380/400 V

5000 A

Rated breaking capacity at 500 V

5000 A

Rated breaking capacity at 660/690 V

5000 A

Rated insulation voltage (Ui)

1000 V

Rated making capacity (cos phi to IEC/EN 60947)

5500 A

Rated operational current (Ie)

177 A at 690 V (Individual compensation, three-phase capacitors, open); 307 A at up to 525 V (Individual compensation, three-phase capacitors, open)

Rated operational current (Ie) at AC-3

1000 V

95 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

400 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

400 A

Rated operational current (Ie) at AC-3

440 V

400 A

Rated operational current (Ie) at AC-3

500 V

400 A

Rated operational current (Ie) at AC-3, 660 V

690 V

325 A

Rated operational current (Ie) at AC-4

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

296 A

Rated operational current (Ie) at AC-4

440 V

296 A

Rated operational current (Ie) at AC-4

500 V

296 A

Rated operational current (Ie) at AC-4, 660 V

690 V

260 A

Rated operational power at AC-3, 1000 V

50 Hz

132 kW

Rated operational power at AC-3, 240 V

Rated operational power at AC-3, 380/400 V

50 Hz

200 kW

Rated operational power at AC-3, 415 V

50 Hz

232 kW

Rated operational power at AC-3, 440 V

50 Hz

250 kW

Rated operational power at AC-3, 500 V

50 Hz

280 kW

Rated operational power at AC-3, 690 V

50 Hz

300 kW

Rated operational power at AC-4, 1000 V

Rated operational power at AC-4, 220/230 V

50 Hz

92 kW

Rated operational power at AC-4, 240 V

50 Hz

100 kW

Rated operational power at AC-4, 415 V

50 Hz

176 kW

Rated operational power at AC-4, 440 V

50 Hz

186 kW

Rated operational power at AC-4, 500 V

50 Hz

210 kW

Rated operational power at AC-4, 660/690 V

50 Hz

240 kW

Rated operational voltage (Ue) at AC - max

1000 V

Safe isolation

1000 V AC, Between coil and contacts, According to EN 61140

Special purpose rating of definite purpose rating

3300 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 3120 A, LRA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 420 A, FLA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 550 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

Accessories

Fitting options auxiliary contacts: on the side: 2 x DILM820-XHI11(V)-SI; 2 x DILM820-XHI11-SA

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Electromagnetic compatibility

Designed for operation in industrial environments. Its use in residential environments may cause radio-frequency interference, requiring additional noise suppression.

Fitted with

Suppressor circuit in actuating electronics

Lifespan, electrical

100,000 Operations (at Condensor operation)

Lifespan, mechanical

7,000,000 Operations (DC operated)

Operating frequency

200 Operations/h; 2000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof with terminal shroud or terminal block, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance

500 mΩ (Admissible transitional contact resistance - of the external control circuit device when actuating A11)

Shock resistance

8 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Signal level

5 V - 15 V, PLC signal level (A3 - A4) to IEC/EN 61131-2 (type 2), Magnet systems

Utilization category

AC-3: Normal AC induction motors: starting, switch off during running; AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

DC

Drop-out voltage

DC operated: 0.2 x US max - 0.6 US min

DC operated; DC operated

0.15 x US min - 0.6 US max, DC operated

Duty factor

100 %

Pick-up voltage

0.7 - 1.15 V DC x Us

Power consumption

Control transformer with uk ≤ 6%

Power consumption (pick-up) at DC

450 VA

Power consumption (sealing) at DC

6.4 W

Power consumption, pick-up

50 Hz

495 VA, Pull-in power, Coil in a cold state and 1.0 x Us

HS Code

8536.90

• EAN 4015082082079
• SAP 1000252265
• Code 81131815
