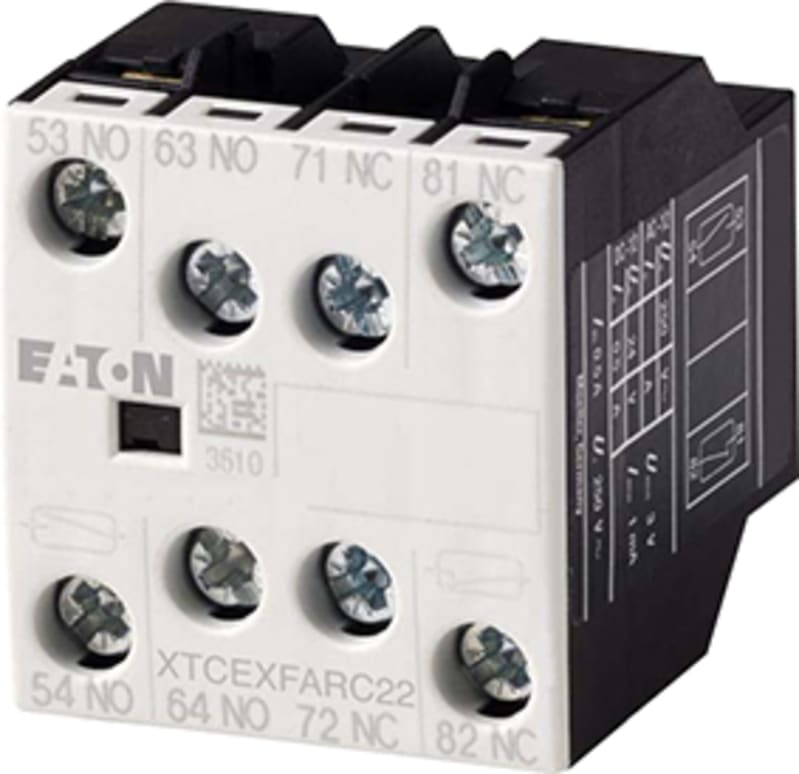

Auxiliary contact DILA-XHIR22

Eaton DILA-XHIR22 Auxiliary Contact, 4 poles, 400V 415 V: 4 A, 2 N/O, 2 NC, front-mounted,.

Manufacturer part number (MPN)

DILA-XHIR22

EAN / GTIN

4015081363582

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

139580

Depth

45 mm

Height

42 mm

Width

36 mm

Weight

0.05 kg

Certifications

CE; UL File No.: E29184; VDE 0660; CSA Class No.: 3211-03; UL 508; IEC/EN 60947; CSA; CSA File No.: 012528; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05; IEC/EN 60947-4-1; UL

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Code number

33 in combination with DILA(C)-22; 42 in combination with DILA(C)-31; 51E in combination with DILA(C)-40

Control circuit reliability

λ < 1/10⁸ (1 failure at 100,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA); λ < 5.3 x 1/10⁸ (1 failure at 19,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 1 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

2

Heat dissipation per pole, current-dependent Pvid

0.16 W

Rated operational current for specified heat dissipation (In)

4 A

Conventional thermal current Ith at 60°C (3-pole, open)

16 A

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

0.5 A

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) - min

1 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

4 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

1.5 A

Rated operational current (Ie) at DC-13, 110 V

0.5 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.25 A

Rated operational current (Ie) at DC-13, 24 V

2.5 A

Rated operational current (Ie) at DC-13, 60 V

1 A

Rated operational voltage (Ue) - min

3 V

Rated operational voltage (Ue) at AC - max

500 V

Rated operational voltage (Ue) at DC - max

60 V

Safe isolation

400 V AC, Between auxiliary contacts, According to EN 61140; 400 V AC, Between coil and auxiliary contacts, According to EN 61140

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, without welding, Auxiliary contacts

Short-circuit protection rating without welding

1.6 A gG/gL, Max. Fuse, Electrical specifications for microswitch auxiliary contacts 53-54 and 81-82; 10 A gG/gL, 500 V, Max. Fuse, Contacts

Switching capacity (auxiliary contacts, general use)

0.1 A, 250 V DC, (UL/CSA)

Electric connection type

Screw connection

Features

Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L)

Fitted with

Switching elements according to EN 50005; Interlocked opposing contacts

Functions

For electronic applications; For standard applications

Number of poles

Four-pole

Connection

Screw terminals

Degree of protection

IP20

Lifespan, electrical

1,300,000 Operations (at 230 V, AC-15, 3 A); 1,300,000 Operations (at DC-12, 24 V / 50 mA)

Lifespan, mechanical

10,000,000 Operations (DC operated); 10,000,000 Operations (AC operated)

Model

Top mounting

Mounting method

Front fastening

Operating frequency

9000 Operations/h

Overvoltage category

III

Pollution degree

3

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Shock resistance

5 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 7 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Type

Front mounting auxiliary contact

Screw size

M3.5, Terminal screw

Screwdriver size

0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver; 2, Terminal screw, Pozidriv screwdriver

Terminal capacity (flexible with ferrule)

2 x (0.75 - 1.5) mm², Screw terminals; 1 x (0.75 - 1.5) mm², Screw terminals

Terminal capacity (solid)

2 x (0.75 - 2.5) mm², Screw terminals; 1 x (0.75 - 2.5) mm², Screw terminals

Terminal capacity (solid/stranded AWG)

18 - 14, Screw terminals

Tightening torque

1.2 Nm, Screw terminals

Country of origin

Romania

HS Code

8538.90

• EAN 4015081363582
• SAP 1200150127
• Code 82040985
