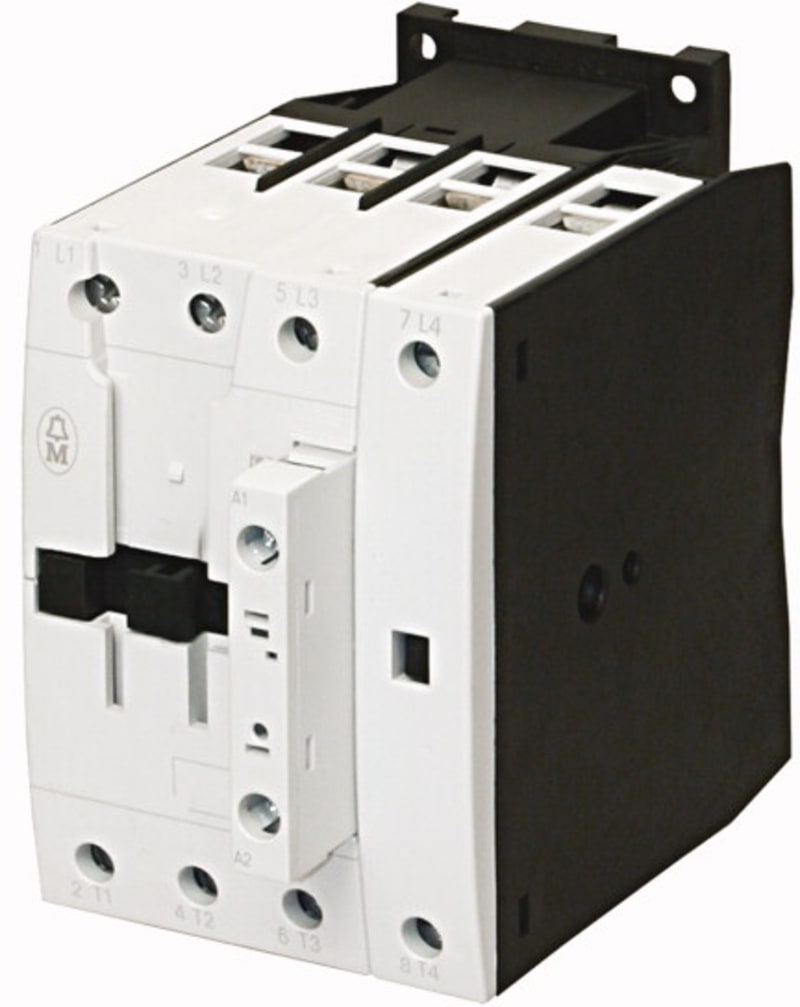

Contactor DILMP80(110V50HZ,120V60HZ)

Eaton DILMP80(110V50HZ,120V60HZ) Contactor, 4-pole, 80 A, 110 V 50 Hz, 120 V 60 Hz, AC operated.

Manufacturer part number (MPN)

DILMP80(110V50HZ,120V60HZ)

EAN / GTIN

4015081094431

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

109877

Depth

132 mm

Height

115 mm

Width

74 mm

Weight

1.04 kg

Certifications

CE; UL 60947-4-1; UL Category Control No.: NLDX; CSA File No.: 012528; IEC/EN 60947-4-1; CSA Class No.: 2411-03, 3211-04; IEC/EN 60947; VDE 0660; CSA-C22.2 No. 60947-4-1-14; CSA; UL File No.: E29096; UL

Catalog Notes

Contacts according to EN 50012

Shock resistance

5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-3

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

4

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

186 A

Conventional thermal current Ith (3-pole, enclosed)

64 A

Conventional thermal current Ith at 55°C (3-pole, open)

73 A

Conventional thermal current Ith at 60°C (3-pole, open)

69 A

Conventional thermal current Ith of main contacts (1-pole, open)

207 A

Equipment heat dissipation, current-dependent Pvid

25.8 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

8.6 W

Rated operational current for specified heat dissipation (In)

80 A

Static heat dissipation, non-current-dependent Pvs

4.1 W

Rated breaking capacity at 220/230 V

500 A

Rated breaking capacity at 380/400 V

500 A

Rated breaking capacity at 500 V

500 A

Rated breaking capacity at 660/690 V

296 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

700 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

80 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

50 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

50 A

Rated operational current (Ie) at AC-3, 440 V

50 A

Rated operational current (Ie) at AC-3, 500 V

50 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

32 A

Rated operational current (Ie) at DC-1, 110 V

80 A

Rated operational current (Ie) at DC-1, 220 V

80 A

Rated operational current (Ie) at DC-1, 60 V

80 A

Rated operational power at AC-1, 220/230 V, 50 Hz

29 kW

Rated operational power at AC-1, 240 V, 50 Hz

32 kW

Rated operational power at AC-1, 380/400 V, 50 Hz

50 kW

Rated operational power at AC-1, 415 V, 50 Hz

55 kW

Rated operational power at AC-1, 440 V, 50 Hz

58 kW

Rated operational power at AC-1, 500 V, 50 Hz

66 kW

Rated operational power at AC-1, 690 V, 50 Hz

87 kW

Rated operational power at AC-3, 240 V, 50 Hz

17 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

22 kW

Rated operational power at AC-3, 415 V, 50 Hz

30 kW

Rated operational power at AC-3, 440 V, 50 Hz

32 kW

Rated operational power at AC-3, 500 V, 50 Hz

36 kW

Rated operational power at AC-3, 690 V, 50 Hz

30 kW

Rated operational voltage (Ue) at AC - max

690 V

Interference immunity

According to EN 60947-1

Number of poles

Four-pole

Application

Contactors for 4 pole electric consumers

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (AC operated); 10,000,000 Operations (DC operated)

Operating frequency

5000 mechanical Operations/h (DC operated); 5000 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Residual current

1 mA (with actuation of A1 - A2 by the electronics with "0" signal)

Resistance per pole

1.9 mΩ

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

AC

Drop-out voltage

AC operated: 0.6 - 0.4 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc; 0.85 - 1.1 V AC/DC x Us

Power consumption, pick-up, 50 Hz

150 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, pick-up, 60 Hz

150 VA, Dual-frequency coil in a cold state and 1.0 x Us; 95 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing, 50 Hz

4.1 W, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

16 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 4.1 W, Dual-frequency coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC, 50 Hz - max

110 V

Rated control supply voltage (Us) at AC, 50 Hz - min

110 V

Rated control supply voltage (Us) at AC, 60 Hz - max

120 V

Rated control supply voltage (Us) at AC, 60 Hz - min

120 V

Switching time (AC operated, make contacts, closing delay) - max

18 ms

Switching time (AC operated, make contacts, closing delay) - min

12 ms

Switching time (AC operated, make contacts, opening delay) - max

13 ms

Switching time (AC operated, make contacts, opening delay) - min

8 ms

Assigned motor power at 115/120 V, 60 Hz, 1-phase

3 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

15 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

10 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

20 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

40 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

50 HP

Safe isolation

440 V AC, Between coil and contacts, According to EN 61140; 440 V AC, Between the contacts, According to EN 61140

Short-circuit current rating (basic rating)

10 kA, 250 A max. fuse, SCCR (UL/CSA); 10 kA, 250 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

100 kA, 150 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 250 A max. fuse, SCCR (UL/CSA); 65 kA, 100 A max. CB, SCCR (UL/CSA); 30 kA, 250 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

100 kA, 150 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 250 A max. fuse, SCCR (UL/CSA); 30 kA, 250 A max. CB, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 400 V

160 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

80 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

80 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

63 A gG/gL

Special purpose rating of elevator control

40 HP, 600 V 60 Hz 3-ph, (UL/CSA); 30 HP, 480 V 60 Hz 3-ph, (UL/CSA); 42 A, 240 V 60 Hz 3-ph, (UL/CSA); 41 A, 600 V 60 Hz 3-ph, (UL/CSA); 15 HP, 240 V 60 Hz 3-ph, (UL/CSA); 40 A, 480 V 60 Hz 3-ph, (UL/CSA); 10 HP, 200 V 60 Hz 3-ph, (UL/CSA); 32.2 A, 200 V 60 Hz 3-ph, (UL/CSA)

Special purpose rating of resistance air heating

79 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA); 79 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of tungsten incandescent lamps

74 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA); 74 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of ballast electrical discharge lamps

79 A (480V 60Hz 3phase, 277V 60Hz 1phase); 79 A (600V 60Hz 3phase, 347V 60Hz 1phase)

Switching capacity (main contacts, general use)

80 A, Maximum motor rating (UL/CSA)

Screw size

M6, Terminal screw, Main cables; M3.5, Terminal screw, Control circuit cables

Screwdriver size

2, Terminal screw, Pozidriv screwdriver; 0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver

Stripping length (control circuit cable)

10 mm

Stripping length (main cable)

10 mm

Terminal capacity (copper band)

2 x (6 x 9 x 0.8) mm (Number of segments x width x thickness), Main cables

Terminal capacity (solid)

2 x (2.5 - 16) mm², Main cables; 1 x (0.75 - 4) mm², Control circuit cables; 1 x (2.5 - 16) mm², Main cables; 2 x (0.75 - 2.5) mm², Control circuit cables

HS Code

8536.90

• EAN 4015081094431
• SAP 1000252323
• Code 8215984
