Eaton

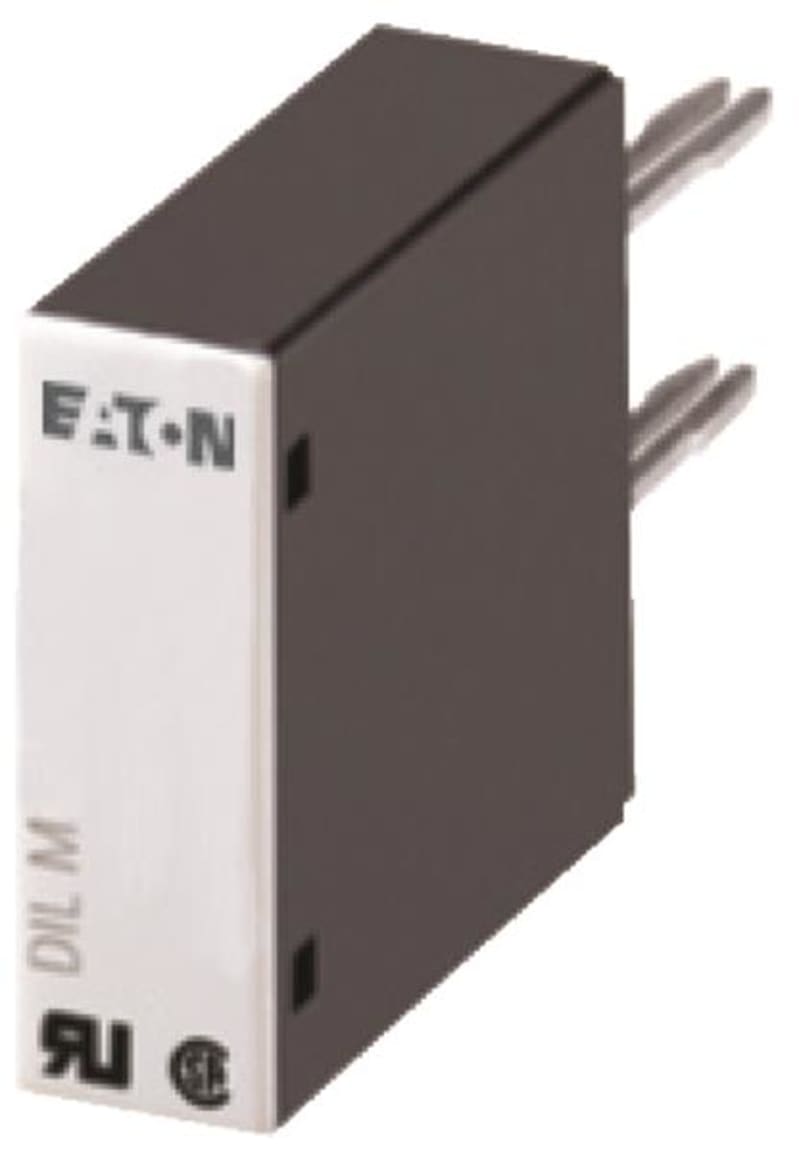

Attenuator diode
Part numberDILM12-XSPDEAN / GTIN4015081015641HS code8538.90
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DILM12-XSPD Attenuator diode, for DILA, M7-15.
Technical Specifications
- Manufacturer part number (MPN)
- DILM12-XSPD
- EAN / GTIN
- 4015081015641
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 101672
- Depth
- 48 mm
- Height
- 25 mm
- Width
- 9 mm
- Weight
- 0.004 kg
- Certifications
- UL Category Control No.: NKCR2
- NKCR8; CSA File No.
- 256465; UL Recognized; CSA-C22.2 No. 14-05; UL File No.: E29184; CSA; CSA Class No.: 3211-07; IEC/EN 60947-4-1; UL 508; CE
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Functions
- Diode
- Product category
- Accessories
- Used with
- DILM12-XSPD
- Voltage type
- DC
- Rated control supply voltage (Us) at AC
- Rated control supply voltage (Us) at AC
- Rated control supply voltage (Us) at AC
- Rated control supply voltage (Us) at AC
- Rated control supply voltage (Us) at DC - max
- 250 V
- Rated control supply voltage (Us) at DC - min
- 12 V
- Rated control supply voltage DC
- 12–250 V
- With LED indication
- No
- Operating voltage DC
- 12–250 V
- Voltage type for actuating
- DC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081015641
- SAP 1000288768
- Code 846723
Product Documentation
Document preview: Dempelink diode, — Specification Data Sheet (OEM)
