DA1 variable-frequency drive, 3-3 600V, 37 kW

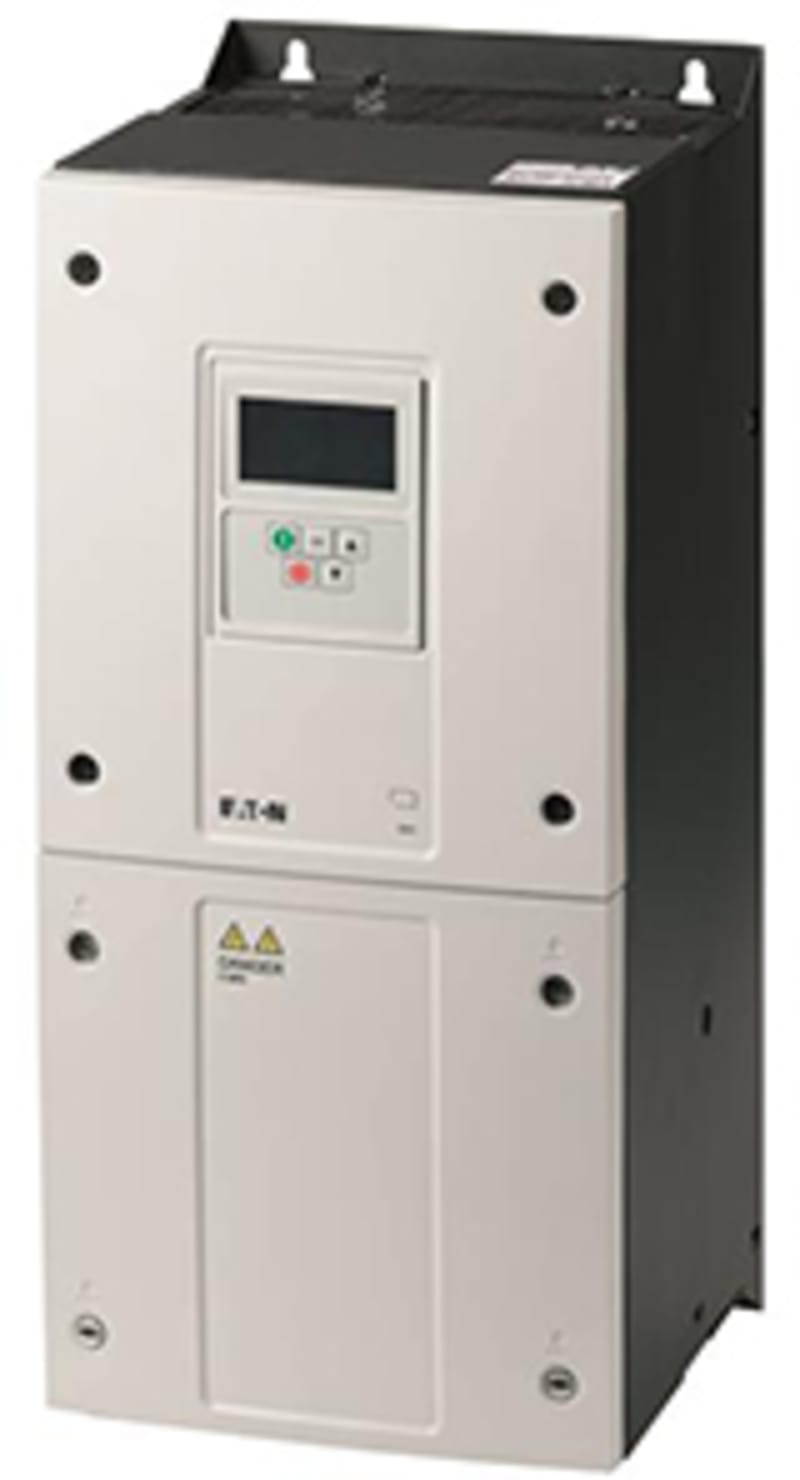

Eaton DA1 variable-frequency drive, 3-3 600V, 37 kW (part number DA1-35054NB-B55C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 176969; Depth: 270 mm; Height: 540 mm; Width: 235 mm.

Manufacturer part number (MPN)

DA1-35054NB-B55C

EAN / GTIN

4015081714124

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

176969

Depth

270 mm

Height

540 mm

Width

235 mm

Weight

22.5 kg

Catalog Notes

The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.

Apparent power at 600 V

56.12 kVA

Braking resistance

16 Ω

Braking torque

Max. 100 % of rated operational current Ie with external braking resistor - Main circuit; Max. 30 % MN, Standard - Main circuit; Max. 100 % of rated operational current Ie, variable, DC - Main circuit

Switch-on threshold for the braking transistor

975 VDC

Altitude

Above 1000 m with 1 % derating per 100 m; Max. 4000 m; Max. 1000 m

Ambient operating temperature - max

40 °C

Ambient storage temperature - max

60 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

40 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 average relative humidity (RH), no condensation, no corrosion

Number of inputs (analog)

2

Number of inputs (digital)

5

Number of outputs (analog)

2

Number of outputs (digital)

2

Number of relay outputs

2 (parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))

Rated control voltage (Uc)

24 V DC (external, max. 100 mA)

Equipment heat dissipation, current-dependent Pvid

1110 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation details

Operation (with 150 % overload)

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

54 A

Static heat dissipation, non-current-dependent Pvs

0 W

Cable length

100 m, screened, maximum permissible, Motor feeder; 150 m, unscreened, maximum permissible, Motor feeder; 200 m, screened, with motor choke, maximum permissible, Motor feeder; 300 m, unscreened, with motor choke, maximum permissible, Motor feeder

Communication interface

OP-Bus (RS485), built in; CANopen®, built in; Modbus RTU, built in; Modbus-TCP, optional; EtherCAT, optional; SmartWire-DT, optional; DeviceNet, optional; Ethernet IP, optional; PROFIBUS, optional; PROFINET, optional

Connection to SmartWire-DT

In conjunction with DX-NET-SWD1 SmartWire DT module; Yes

Degree of protection

NEMA 12; IP55

Fitted with

Control unit; OLED display; Brake chopper; Internal DC link; PC connection; Breaking resistance; IGBT inverter; DC link choke; Additional PCB protection

Frame size

FS5

Functions

4-quadrant operation possible

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Protocol

EtherNet/IP; MODBUS; PROFINET IO; DeviceNet; PROFIBUS; CAN; Other bus systems; TCP/IP

Safety function/level

STO (Safe Torque Off, SIL2, PLc Cat 2)

Suitable for

Branch circuits, (UL/CSA)

Efficiency

97 % (η)

Heat dissipation at current/speed

398 W at 25% current and 0% speed; 433 W at 25% current and 50% speed; 472 W at 50% current and 0% speed; 529 W at 50% current and 50% speed; 600 W at 50% current and 90% speed; 679 W at 100% current and 0% speed; 801 W at 100% current and 50% speed; 960 W at 100% current and 90% speed

Input current ILN at 150% overload

59.9 A

Leakage current at ground IPE - max

54 mA

Mains switch-on frequency

Maximum of one time every 30 seconds

Mains voltage - max

600 V

Mains voltage - min

500 V

Operating mode

Sensorless vector control (SLV); Optional: Vector control with feedback (CLV); U/f control; Speed control with slip compensation

Output frequency - max

500 Hz

Output frequency - min

0 Hz

Output voltage (U2)

500 V AC, 3-phase; 600 V AC, 3-phase

Overload current IL at 150% overload

81 A

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

62 Hz

Rated frequency - min

48 Hz

Rated operational current (Ie) at 150% overload

54 A

Rated operational power at 500 V, 50 Hz

3-phase

37 kW

Rated operational power at 525 V, 50 Hz

Rated operational voltage

500 V AC, 3-phase; 600 V AC, 3-phase

Resolution

0.1 Hz (Frequency resolution, setpoint value)

Short-circuit protection

LPJ fuse used together with JM60100-3 fuse base, Power wiring, Assigned switching and protective elements; NH fuse used together with TB00-D fuse base, Power wiring, Assigned switching and protective elements

Short-circuit protection rating

80 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring

Starting current - max

200 %, IH, max. starting current (High Overload), for 4 seconds every 40 seconds, Power section

Supply frequency

50/60 Hz

Switching frequency

8 kHz, 4 - 24 kHz adjustable (audible), fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

600 VAC

Assigned motor current IM at 500 V, 50 Hz

150% overload

54 A

Assigned motor current IM at 525 V, 50 Hz

150% overload

51.5 A

Assigned motor current IM at 550 - 600 V, 60 Hz

150% overload

52 A

Assigned motor power at 575/600 V, 60 Hz

3-phase

50 HP

HS Code

8504.40

• EAN 4015081714124
• SAP 1200123162
• Code 81987654
