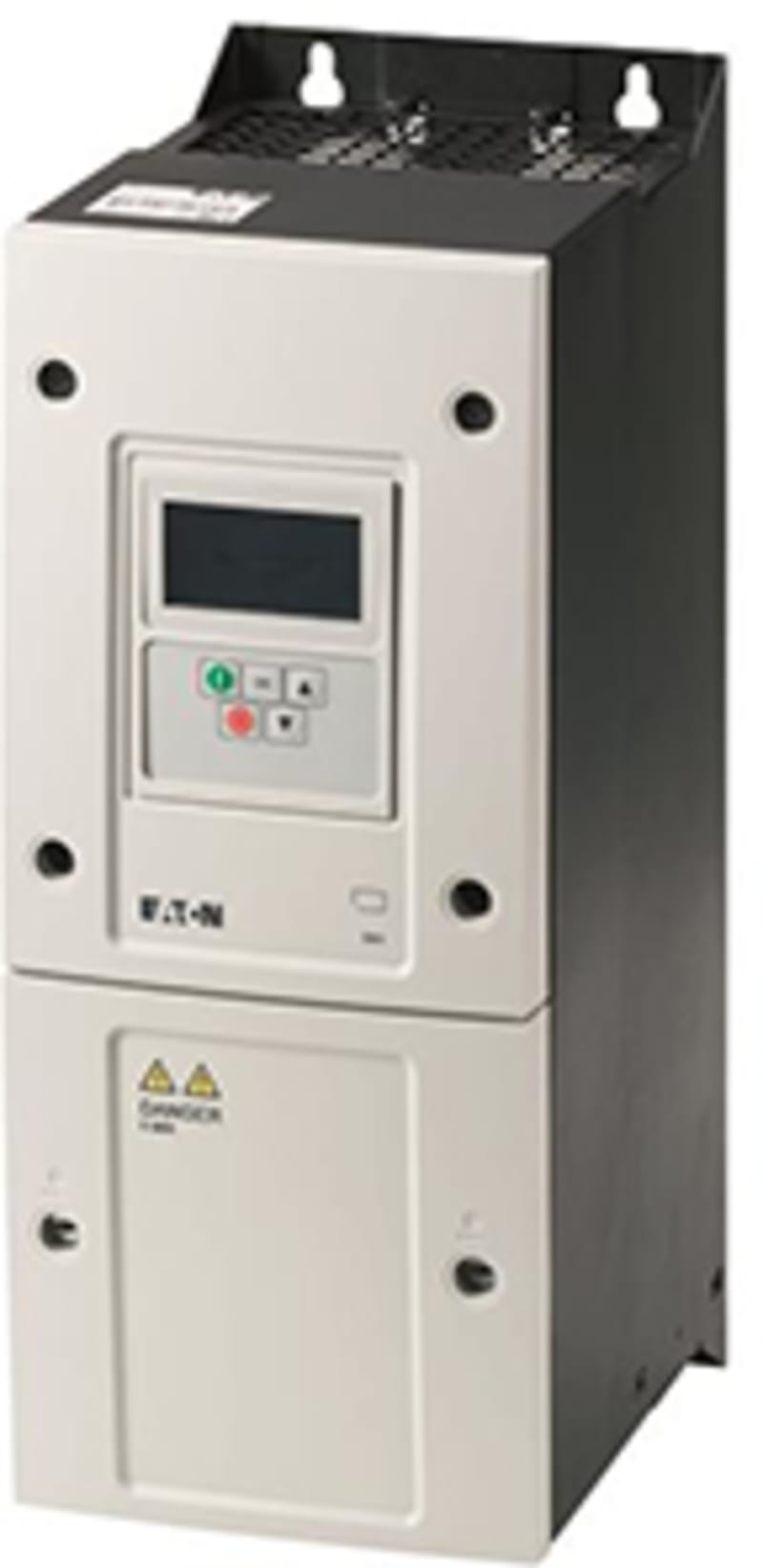

DA1 variable-frequency drive, 3-3 600V, 22 kW

Eaton DA1 variable-frequency drive, 3-3 600V, 22 kW (part number DA1-35034NB-B55C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 176967; Depth: 240 mm; Height: 450 mm; Width: 173 mm.

Manufacturer part number (MPN)

DA1-35034NB-B55C

EAN / GTIN

4015081714100

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

176967

Depth

240 mm

Height

450 mm

Width

173 mm

Weight

11.5 kg

Catalog Notes

The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.

Apparent power at 600 V

35.33 kVA

Braking resistance

22 Ω

Braking torque

Max. 100 % of rated operational current Ie with external braking resistor - Main circuit; Max. 30 % MN, Standard - Main circuit; Max. 100 % of rated operational current Ie, variable, DC - Main circuit

Switch-on threshold for the braking transistor

975 VDC

Altitude

Above 1000 m with 1 % derating per 100 m; Max. 1000 m; Max. 4000 m

Ambient operating temperature - max

40 °C

Ambient storage temperature - max

60 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

40 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 average relative humidity (RH), no condensation, no corrosion

Number of inputs (analog)

2

Number of inputs (digital)

5

Number of outputs (analog)

2

Number of outputs (digital)

2

Number of relay outputs

2 (parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))

Rated control voltage (Uc)

24 V DC (external, max. 100 mA)

Equipment heat dissipation, current-dependent Pvid

660 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation details

Operation (with 150 % overload)

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

34 A

Static heat dissipation, non-current-dependent Pvs

0 W

Cable length

300 m, unscreened, with motor choke, maximum permissible, Motor feeder; 150 m, unscreened, maximum permissible, Motor feeder; 200 m, screened, with motor choke, maximum permissible, Motor feeder; 100 m, screened, maximum permissible, Motor feeder

Communication interface

DeviceNet, optional; PROFINET, optional; OP-Bus (RS485), built in; Modbus RTU, built in; Modbus-TCP, optional; EtherCAT, optional; Ethernet IP, optional; CANopen®, built in; PROFIBUS, optional; SmartWire-DT, optional

Connection to SmartWire-DT

In conjunction with DX-NET-SWD1 SmartWire DT module; Yes

Degree of protection

IP55; NEMA 12

Fitted with

Brake chopper; Additional PCB protection; PC connection; Breaking resistance; Control unit; Internal DC link; IGBT inverter; OLED display

Frame size

FS4

Functions

4-quadrant operation possible

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Protocol

MODBUS; Other bus systems; PROFIBUS; DeviceNet; CAN; EtherNet/IP; PROFINET IO; TCP/IP

Safety function/level

STO (Safe Torque Off, SIL2, PLc Cat 2)

Suitable for

Branch circuits, (UL/CSA)

Efficiency

97 % (η)

Heat dissipation at current/speed

175 W at 25% current and 0% speed; 193 W at 25% current and 50% speed; 220 W at 50% current and 0% speed; 252 W at 50% current and 50% speed; 285 W at 50% current and 90% speed; 361 W at 100% current and 0% speed; 431 W at 100% current and 50% speed; 500 W at 100% current and 90% speed

Input current ILN at 150% overload

39.1 A

Leakage current at ground IPE - max

34 mA

Mains switch-on frequency

Maximum of one time every 30 seconds

Mains voltage - max

600 V

Mains voltage - min

500 V

Operating mode

U/f control; Optional: Vector control with feedback (CLV); Speed control with slip compensation; Sensorless vector control (SLV)

Output frequency - max

500 Hz

Output frequency - min

0 Hz

Output voltage (U2)

500 V AC, 3-phase; 600 V AC, 3-phase

Overload current IL at 150% overload

51 A

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

62 Hz

Rated frequency - min

48 Hz

Rated operational current (Ie) at 150% overload

34 A

Rated operational power at 500 V, 50 Hz

3-phase

22 kW

Rated operational power at 525 V, 50 Hz

Rated operational voltage

500 V AC, 3-phase; 600 V AC, 3-phase

Resolution

0.1 Hz (Frequency resolution, setpoint value)

Short-circuit protection

NH fuse used together with TB00-D fuse base, Power wiring, Assigned switching and protective elements; LPJ fuse used together with J60060-3 fuse base, Power wiring, Assigned switching and protective elements

Short-circuit protection rating

63 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring

Starting current - max

200 %, IH, max. starting current (High Overload), for 4 seconds every 40 seconds, Power section

Supply frequency

50/60 Hz

Switching frequency

8 kHz, 4 - 24 kHz adjustable (audible), fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

600 VAC

Assigned motor current IM at 500 V, 50 Hz

150% overload

33 A

Assigned motor current IM at 525 V, 50 Hz

150% overload

31.4 A

Assigned motor current IM at 550 - 600 V, 60 Hz

150% overload

32 A

Assigned motor power at 575/600 V, 60 Hz

3-phase

30 HP
