EMC, DA1, FS5, 3 ~ 520 V, 75A (DX-EMC34-075-FS5-L)
Part numberDX-EMC34-075-FS5-LEAN / GTIN4015081710652HS code8504.50
Drives & Controllers
Drive Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview

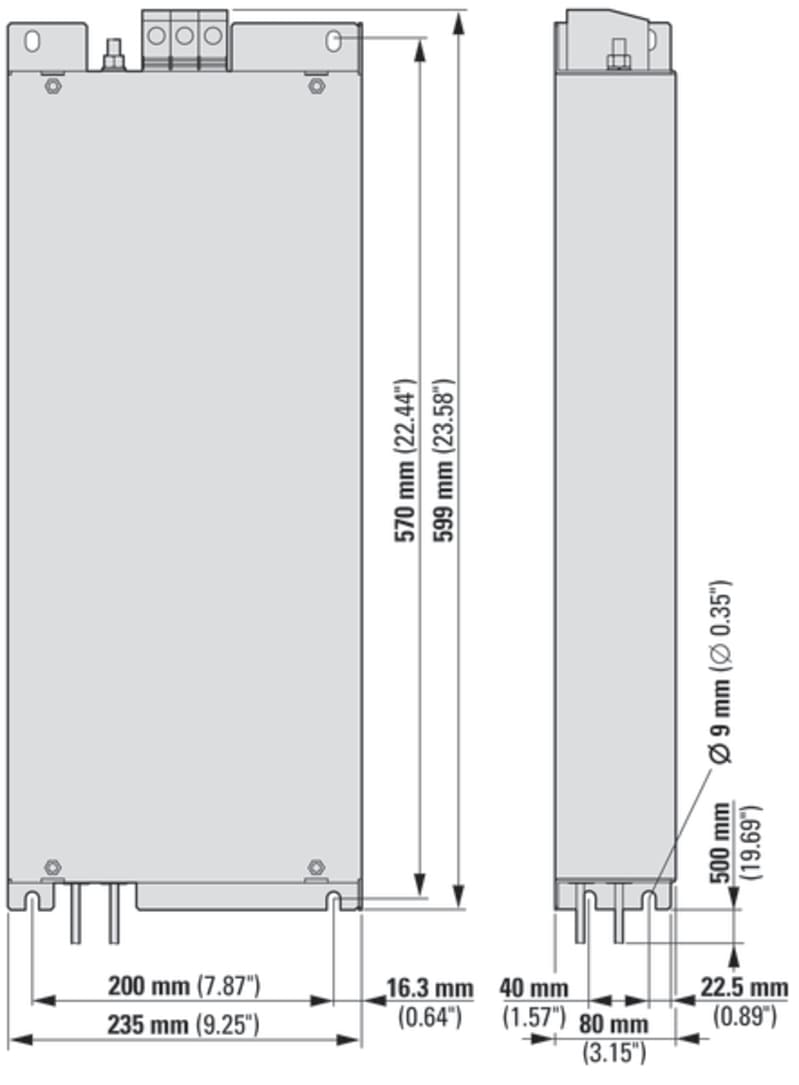

Eaton EMC, DA1, FS5, 3 ~ 520 V, 75A (DX-EMC34-075-FS5-L) is listed under Drives & Controllers / Drive Accessories. Sales unit: pcs; Eaton catalogue number: 174610; Depth: 300 mm; Height: 620 mm; Width: 85 mm; Weight: 10 kg.
Technical Specifications
- Manufacturer part number (MPN)
- DX-EMC34-075-FS5-L
- EAN / GTIN
- 4015081710652
- Sales unit
- pcs
- Eaton catalogue number
- 174610
- Depth
- 300 mm
- Height
- 620 mm
- Width
- 85 mm
- Weight
- 10 kg
- Certifications
- EN 50178; IEC/EN 61800-3
- Catalog Notes
- low leakage current
- Altitude
- At higher altitudes observe derating; Max. 2000 m
- Connection type
- Connection terminal, PE stud, prefabricated cables
- Rated operational current for specified heat dissipation (In)
- 75 A
- Rated operational current (Ie) - max
- 75 A
- Number of phases
- 3
- Accessory/spare part type
- Filter
- Degree of protection
- IP20, when connected; IP20; IP00
- Product Category
- Accessories
- Used with
- DA1; DG1; DM1
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.50
Cross References
- EAN 4015081710652
- SAP 1200606741
- Code 82996569
Product Documentation
Document preview: EMC, DA1, FS5, 3 ~ 520 V , 75A (DX-EMC34-075-FS5-L) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Bracket for IC mounting plate
XVTL-IC/BRA/SET
Eaton
SideBySide Bottom 3 rows 85mm
Y7-193265
Eaton
Safety Switch,P1-40/EA/SVB/HI11
Eaton

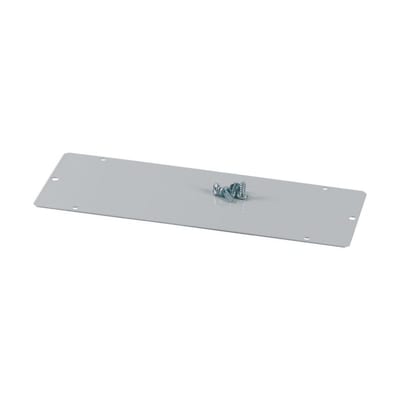

2K gland plate insert - blind (2K/BLIND)
Eaton

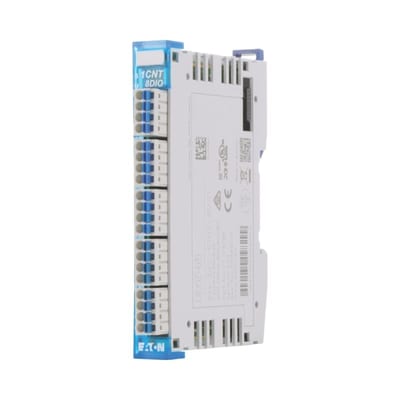

Teller module,4 digital In/O
4543333
Eaton

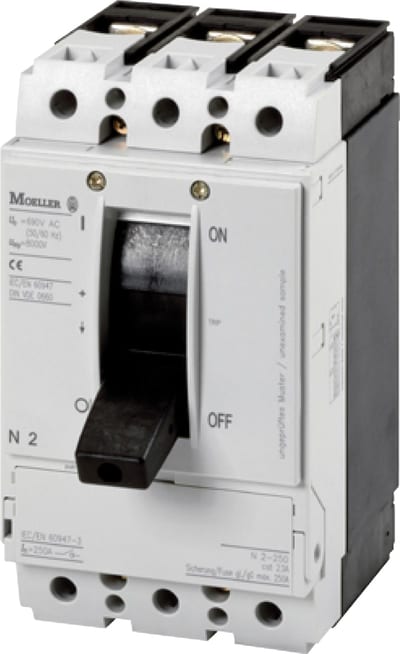

LOAD-Break Switch N2-160
Eaton

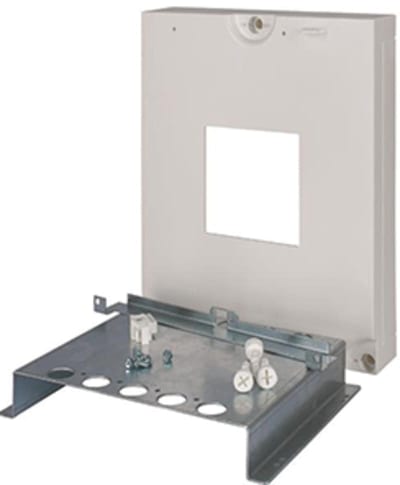

Module Set NZM2 EWK (EWK-NZM2-KIT)
Eaton

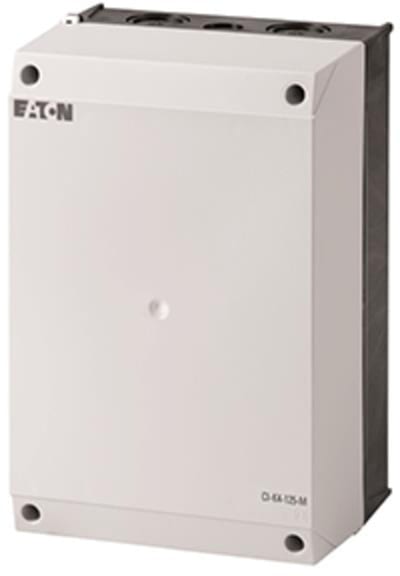

Insulated enclosure CI-K4-125-M
