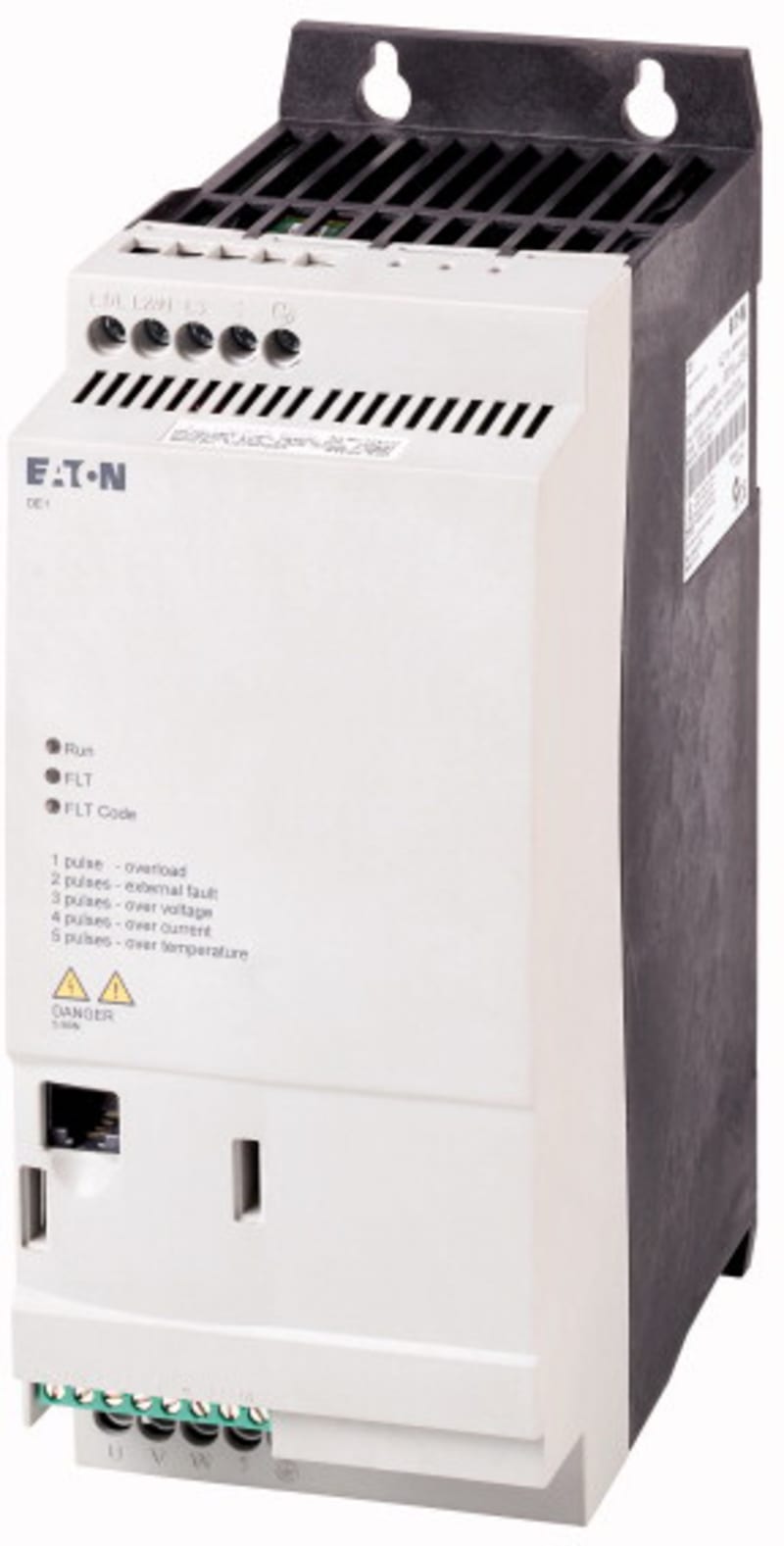

DE1 3~/3~480V 11,3 A 5,5 kW

Eaton DE1 3~/3~480V 11,3 A 5,5 kW (part number DE1-34011FN-N20N) is listed under Drives & Controllers / Variable Frequency Drives. Sales unit: pcs; Eaton catalogue number: 174339; Depth: 169 mm; Height: 230 mm; Width: 90 mm; Weight: 1.6 kg.

Manufacturer part number (MPN)

DE1-34011FN-N20N

EAN / GTIN

4015081708017

Sales unit

pcs

Eaton catalogue number

174339

Depth

169 mm

Height

230 mm

Width

90 mm

Weight

1.6 kg

Catalog Notes

Overload cycle for 60 s every 600 s

Apparent power at 400 V

7.62 kVA

Apparent power at 480 V

9.15 kVA

Braking torque

Max. 30 % MN, Standard - Main circuit; Adjustable to 100 %, DC - Main circuit

Altitude

Above 1000 m with 1 % derating per 100 m; Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

50 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient operating temperature details

Derating between 50 °C and 60 °C: None if fPWM ≤ 16 kHz None if Iₑ ≤ 10.6 A and fPWM ≤ 20 kHz None up to a max. of 57 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 average relative humidity (RH), no condensation, no corrosion

Number of inputs (analog)

1 (parameterizable, 0 - 10 V DC, 0/4 - 20 mA)

Number of inputs (digital)

4 (parameterizable, 10 - 30 V DC)

Number of outputs (analog)

0

Number of outputs (digital)

0

Number of relay outputs

1 (parameterizable, N/O, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))

Equipment heat dissipation, current-dependent Pvid

159 W

Rated operational current for specified heat dissipation (In)

11.3 A

Features

Parameterization: drivesConnect; Parameterization: drivesConnect mobile (App); Parameterization: Fieldbus; Parameterization: Keypad

Fitted with

PC connection; Radio interference suppression filter

Cable length

C3 ≤ 25 m, Radio interference level, maximum motor cable length; C2 ≤ 10 m, Radio interference level, maximum motor cable length

Communication interface

Modbus RTU, built in; OP-Bus (RS485), built in

Connection to SmartWire-DT

In conjunction with DX-NET-SWD3 SmartWire DT module; Yes

Degree of protection

IP20; NEMA Other

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Frame size

FS2

Product category

Variable speed starter

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Protocol

MODBUS; Other bus systems; EtherNet/IP

Radio interference class

C2

C3

depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.; Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms

Suitable for

Branch circuits, (UL/CSA)

Vibration

Resistance: According to EN 61800-5-1

Heat dissipation at current/speed

110 W at 100% current and 0% speed; 121 W at 100% current and 50% speed; 132 W at 100% current and 90% speed; 58 W at 25% current and 0% speed; 64 W at 25% current and 50% speed; 72 W at 50% current and 0% speed; 85 W at 50% current and 50% speed; 88 W at 50% current and 90% speed

Input current ILN at 150% overload

12 A

Leakage current at ground IPE - max

< 3.5 mA (AC-operated); < 10 mA (DC-operated)

Mains switch-on frequency

Maximum of one time every 30 seconds

Mains voltage - max

480 V

Mains voltage - min

380 V

Operating mode

U/f control; Speed control with slip compensation

Output frequency - max

300 Hz

Output voltage (U2)

480 V AC, 3-phase; 400 V AC, 3-phase

Overload current IL at 150% overload

16.95 A

Rated control supply voltage

10 V DC (Us, max. 0.2 mA)

Rated frequency - max

66 Hz

Rated frequency - min

45 Hz

Rated operational current (Ie)

11.3 A at 150% overload (at an operating frequency of 16 kHz and an ambient air temperature of +50 °C)

Rated operational power at 380/400 V, 50 Hz

3-phase

5.5 kW

Rated operational voltage

400 V AC, 3-phase; 480 V AC, 3-phase

Resolution

0.025 Hz (Frequency resolution, setpoint value)

Short-circuit protection rating

15 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring

Starting current - max

200 %, IH, max. starting current (High Overload), For 1.875 seconds every 600 seconds, Power section

Supply frequency

50/60 Hz

Switching frequency

16 kHz, 4 - 32 kHz adjustable (audible), fPWM, Power section, Main circuit

Voltage rating - max

480 V

Assigned motor current IM at 400 V, 50 Hz

150% overload

11.3 A

Assigned motor current IM at 440 - 480 V, 60 Hz

150% overload

11 A

Assigned motor power at 460/480 V, 60 Hz

3-phase

7.5 HP

Power consumption

159 W

With control element

No

Number of digital inputs

4

Number of analogue inputs

1

Supporting protocol for LON

No

Number of HW-interfaces RS-485

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

Yes

With PC connection

Yes

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Mains voltage

380–480 V

Mains frequency

50/60 Hz

4-quadrant operation possible

No

Type of converter

U converter

Number of phases output

3

Number of phases input

3

Integrated breaking resistance

No

Application in industrial area permitted

Yes

Application in domestic- and commercial area permitted

Yes

Max. output frequency

300 Hz

Max. output at linear load at rated output voltage

0.5 kW

Max. output at quadratic load at rated output voltage

0.5 kW

Relative symmetric net voltage tolerance

10 %

Relative symmetric net frequency tolerance

10 %

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Max. output voltage

500 V

Nominal output current I2N

11.3 A

Supporting protocol for BACnet

No

Country of origin

United Kingdom

HS Code

8504.40

• EAN 4015081708017
• SAP 1000693065
• Code 8303282
