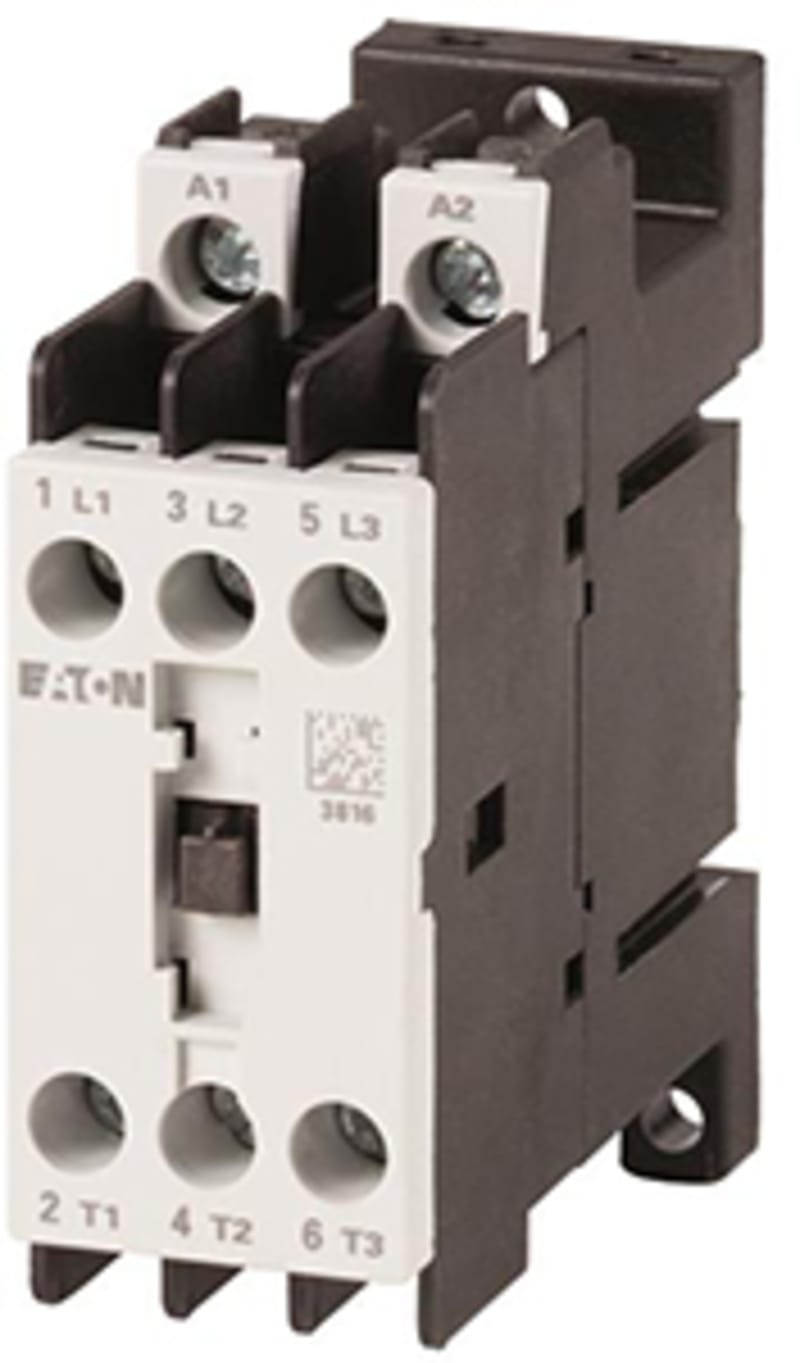

Contactor DILMT12(24V50/60HZ)

Eaton DILMT12(24V50/60HZ) contactor, 3-pole, 380 V / 400 V: 5.5 kW, 24 V 50/60 Hz coil, AC operated, screw terminals. Frame size FS1 for DIN-rail or screw mounting, 27 mm wide. Rated for CLASS 10 A motor starter duty with resistive AC-1 current of 20 A at 400 V.

Manufacturer part number (MPN)

DILMT12(24V50/60HZ)

EAN / GTIN

4015081944941

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

197615

Depth

77.5 mm

Height

70.1 mm

Width

27 mm

Weight

0.175 kg

Certifications

GB14048; IEC/EN 60947; EN 60335-1

Catalog Notes

Also tested according to AC-3e.

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Rated breaking capacity at 380/400 V

96 A

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

20 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

12 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

12 A

Rated operational power at AC-3, 380/400 V, 50 Hz

5.5 kW

Rated operational voltage (Ue) at AC - max

660 V

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Connection to SmartWire-DT

No

Degree of protection

IP20

Frame size

FS1

Lifespan, electrical

1,000,000 Operations (at 400V, AC-3)

Lifespan, mechanical

10,000,000 Operations (AC operated)

Operating frequency

3600 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Rated impulse withstand voltage (Uimp)

6000 V AC

Suitable for

Also motors with efficiency class IE3

Used with

DILT-XHI…

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running; AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

AC

Pick-up voltage

0.85 - 1.1 V AC x Uc

Power consumption, pick-up, 50 Hz

35 VA, Dual-frequency coil in a cold state and 1.0 x Us; 0 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, pick-up, 60 Hz

0 VA, Dual-frequency coil in a cold state and 1.0 x Us; 35 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 50 Hz

2.1 W, Dual-frequency coil in a cold state and 1.0 x Us; 0 W, Dual-frequency coil in a cold state and 1.0 x Us; 2.3 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, sealing, 60 Hz

0 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 2.1 W, Dual-frequency coil in a cold state and 1.0 x Us; 0 W, Dual-frequency coil in a cold state and 1.0 x Us; 6 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Rated control supply voltage (Us) at AC, 50 Hz - max

24 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Rated control supply voltage (Us) at AC, 60 Hz - max

24 V

Rated control supply voltage (Us) at AC, 60 Hz - min

24 V

Screw size

M3.5, Terminal screw

Screwdriver size

2, Terminal screw, Pozidriv screwdriver; 2, Terminal screw, Control circuit cables, Pozidriv screwdriver

Stripping length (main cable)

14 mm

Terminal capacity (solid)

1 x (0.75 - 2.5) mm²; 2 x (0.75 - 2.5) mm²

Terminal capacity (stranded)

1 x (0.75 - 2.5) mm²; 2 x (0.75 - 2.5) mm²

Tightening torque

0.8 Nm, Screw terminals

HS Code

8536.90

• EAN 4015081944941
• SAP 1200519998
• Code 82663177
