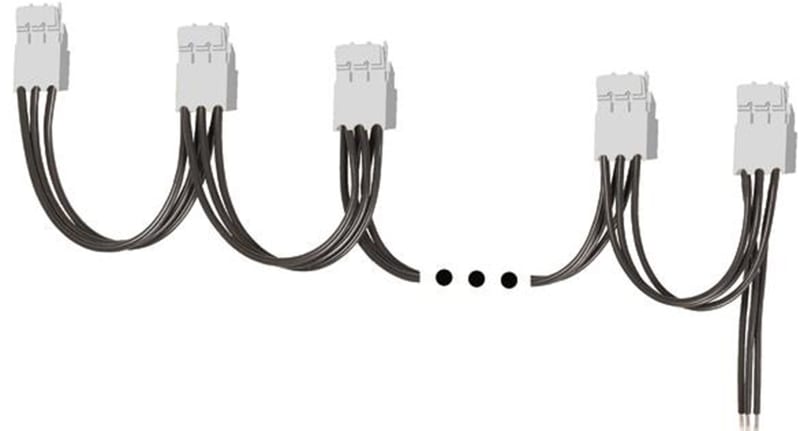

Eaton EMS2-XBR-Z-2 Three-Phase Current Connector with Plug, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton EMS2-XBR-Z-2 is a three-phase current connector with plug, 3-pole, for two device positions. Used with EMS2-D, EMS2-D-SWD and EMS-R electronic motor starters. Rated 25 A; ambient operating range -25 to 70 degrees C.
Technical Specifications
- Manufacturer part number (MPN)
- EMS2-XBR-Z-2
- EAN / GTIN
- 4015080896135
- Sales unit
- pcs
- Eaton catalogue number
- 197172
- Depth
- 114.5 mm
- Height
- 114.5 mm
- Width
- 22.5 mm
- Weight
- 0.167 kg
- Certifications
- UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; CE marking; UL Category Control No.: NLDX
- NLDX7; UL File No.
- E338590; UL Listed; Certified by UL for use in Canada; UL report applies to both US and Canada
- Catalog Notes
- Conductor cross-section: 2.5 mm²
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Rated operational current for specified heat dissipation (In)
- 25 A
- Number of poles
- Three-pole
- Accessory/spare part type
- Connecting cable
- Connection type
- Screw terminals
- Product category
- Accessories Electronic motor starter
- Type
- Three-phase current connector with plug
- Used with
- 2 devices can be connected
- Type of accessory/spare part
- Connecting cable
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 4015080896135
- SAP 1200527035
- Code 82936429
Product Documentation
