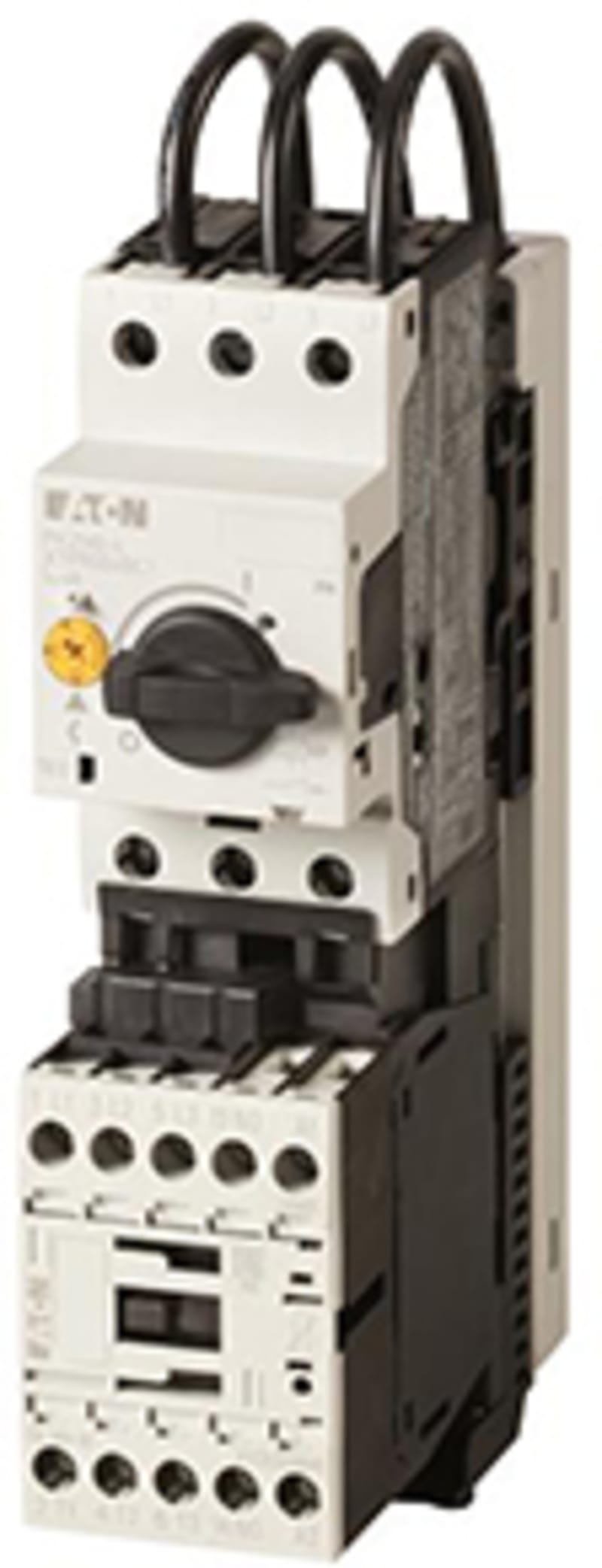

Eaton Direct Online Starter (DOL), Screw Connection (191105)

Eaton 191105 MSC-DM-1-M7(24VDC)/MSFA.

Manufacturer part number (MPN)

191105

EAN / GTIN

4015081916030

Sales unit

pcs

Eaton catalogue number

191105

Depth

115 mm

Height

180 mm

Width

45 mm

Weight

0.724 kg

Certifications

CSA-C22.2 No. 14 (on request); UL 508 (on request)

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Rated operational current (Ie)

0.8 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

1 A

Rated operational power at AC-3, 220/230 V, 50 Hz

0.12 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

0.25 kW

Rated operational voltage

230 - 415 V AC

Fitted with

Short-circuit release

Functions

Temperature compensated overload protection

Class

CLASS 10 A

Connection

Screw terminals

Connection to SmartWire-DT

No

Coordination type

2

Degree of protection

IP20; NEMA Other

Model

IEC starter

Mounting method

Motor starter Feeder System

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

1

Overload release current setting - max

1 A

Overload release current setting - min

0.63 A

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Suitable for

Also motors with efficiency class IE3

Type

Starter with Bi-Metal release

Voltage type

DC

Power consumption (sealing) at DC

2.6 W

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Short-circuit release (Irm) - max

15.5 A

With transformer

No

Power consumption

2.6 W

Rated operation power at AC-3, 400 V

0.25 kW

Number of auxiliary contacts as normally open contact

1

Suitable for emergency stop

No

Rated operation current Ie

0.8 A

Overload release current setting

0.63–1 A

Supporting protocol for LON

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

External reset possible

No

Suitable for rail mounting

Yes

Rated control supply voltage DC

24 V

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Release class

CLASS 10

With short-circuit release

Yes

With fuse

No

Type of electrical connection of main circuit

Screw connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Voltage type for actuating

DC

Type of motor starter

Direct online starter (DOL)

Rated operation power at AC-3, 230 V, 3-phase

0.12 kW

Rated operation current at AC-3, 400 V

1 A

Ambient temperature, upper operating limit

60 °C

Temperature compensated overload protection

Yes

Rated conditional short-circuit current, type 2, 400 V

50000 A

Rated conditional short-circuit current, type 2, 230 V

50000 A

Coordination class according to IEC 60947-4-3

Class 2

Country of origin

Germany

HS Code

8536.50
