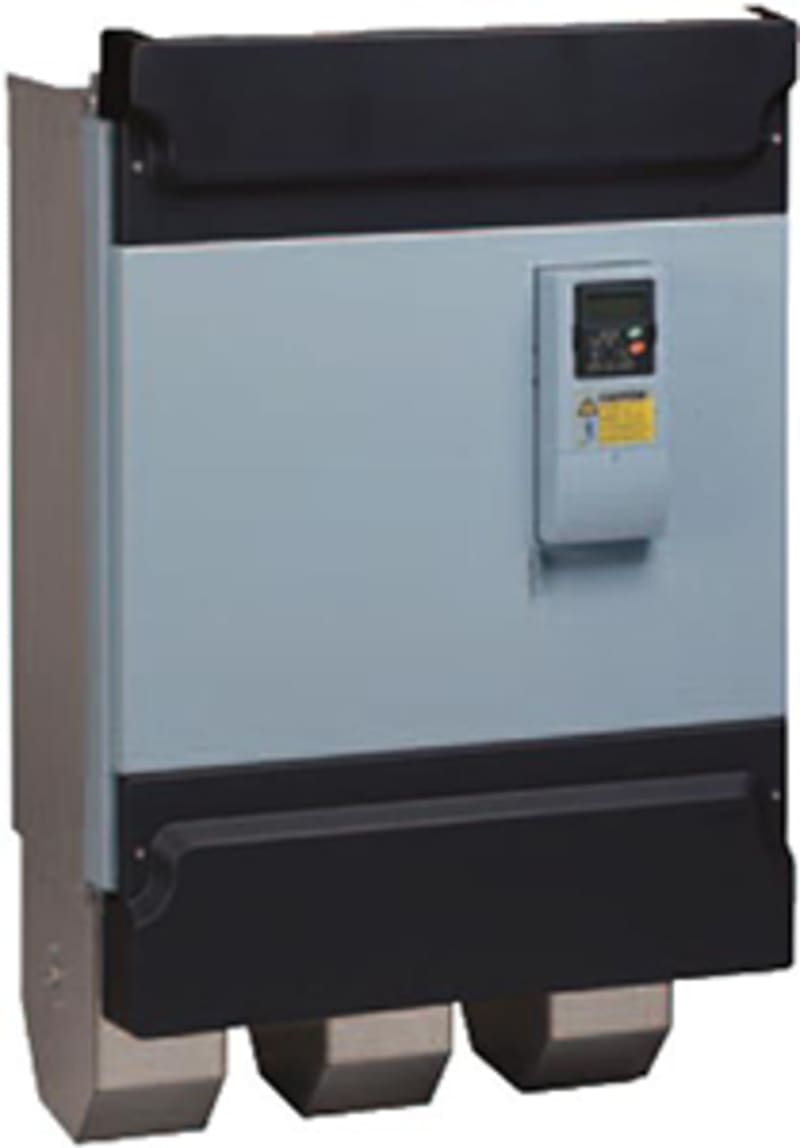

Variable-frequency drive 690V 355 kW

Eaton Variable-frequency drive 690V 355 kW (part number SPX400A1-5A4N1) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 125434; Depth: 602 mm; Height: 2018 mm; Width: 794 mm.

Manufacturer part number (MPN)

SPX400A1-5A4N1

EAN / GTIN

4015081230402

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

125434

Depth

602 mm

Height

2018 mm

Width

794 mm

Weight

350 kg

Altitude

Above 1000 m with 1 % performance reduction per 100 m; Max. 1000 m; Max. 3000 m

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

50 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 % relative humidity, no condensation, no corrosion, no dripping water

Communication interface

LonWorks, optional; BACnet/IP, optional; Modbus-TCP, optional; PROFIBUS-DP; CANopen®, optional; DeviceNet, optional; BACnet MS/TP, optional; EtherCAT, optional; Ethernet IP, optional; Modbus-RTU, optional; PROFINET, optional

Connection to SmartWire-DT

No

Protocol

TCP/IP; PROFIBUS; LON; DeviceNet; CAN; Other bus systems; Data-Highway

Number of inputs (analog)

2

Number of inputs (digital)

6

Number of outputs (analog)

1

Number of outputs (digital)

1

Number of relay outputs

2 (parameterizable, N/O, 8 A (24 V DC) / 8 A (250 V AC) / 0,4 A (125 V DC))

Rated control voltage (Uc)

24 V DC (external, max. 250 mA)

Equipment heat dissipation, current-dependent Pvid

8875 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation details

Operation (with 150 % overload)

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

385 A

Static heat dissipation, non-current-dependent Pvs

0 W

Degree of protection

IP21; NEMA 1

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Fitted with

Control unit; DC link choke; OLED display; PC connection; Radio interference suppression filter; Internal DC link; IGBT inverter

Frame size

FR11

Functions

4-quadrant operation possible

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Radio interference class

C2

C3

depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.

Suitable for

Branch circuits, (UL/CSA)

Mains voltage - max

690 V

Mains voltage - min

525 V

Operating mode

Sensorless vector control (SLV); U/f control; Optional: Vector control with feedback (CLV)

Output frequency - max

320 Hz

Output frequency - min

0 Hz

Output voltage (U2)

600 V AC, 3-phase; 690 V AC, 3-phase

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

66 Hz

Rated frequency - min

45 Hz

Rated operational current (Ie) at 110% overload

460 A

Rated operational current (Ie) at 150% overload

385 A

Rated operational power at 690 V, 50 Hz

3-phase

355 kW

Rated operational power at 690 V, 50 Hz, 3-phase

110% overload

450 kW

Rated operational voltage

690 V AC, 3-phase; 600 V AC, 3-phase

Resolution

0.01 Hz (Frequency resolution, setpoint value)

Supply frequency

50/60 Hz

Switching frequency

1.5 kHz, 1 - 6 kHz adjustable, fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

690 VAC

Assigned motor current IM at 690 V, 50 Hz

110% overload

446 A

Assigned motor current IM at 690 V, 60 Hz

110% overload

358 A

Assigned motor current IM at 690 V, 60 Hz

150% overload

332 A

Assigned motor power at 690 V, 60 Hz

3-phase

400 HP

Assigned motor power at 690 V, 60 Hz, 3-phase

110 % overload

450 HP
