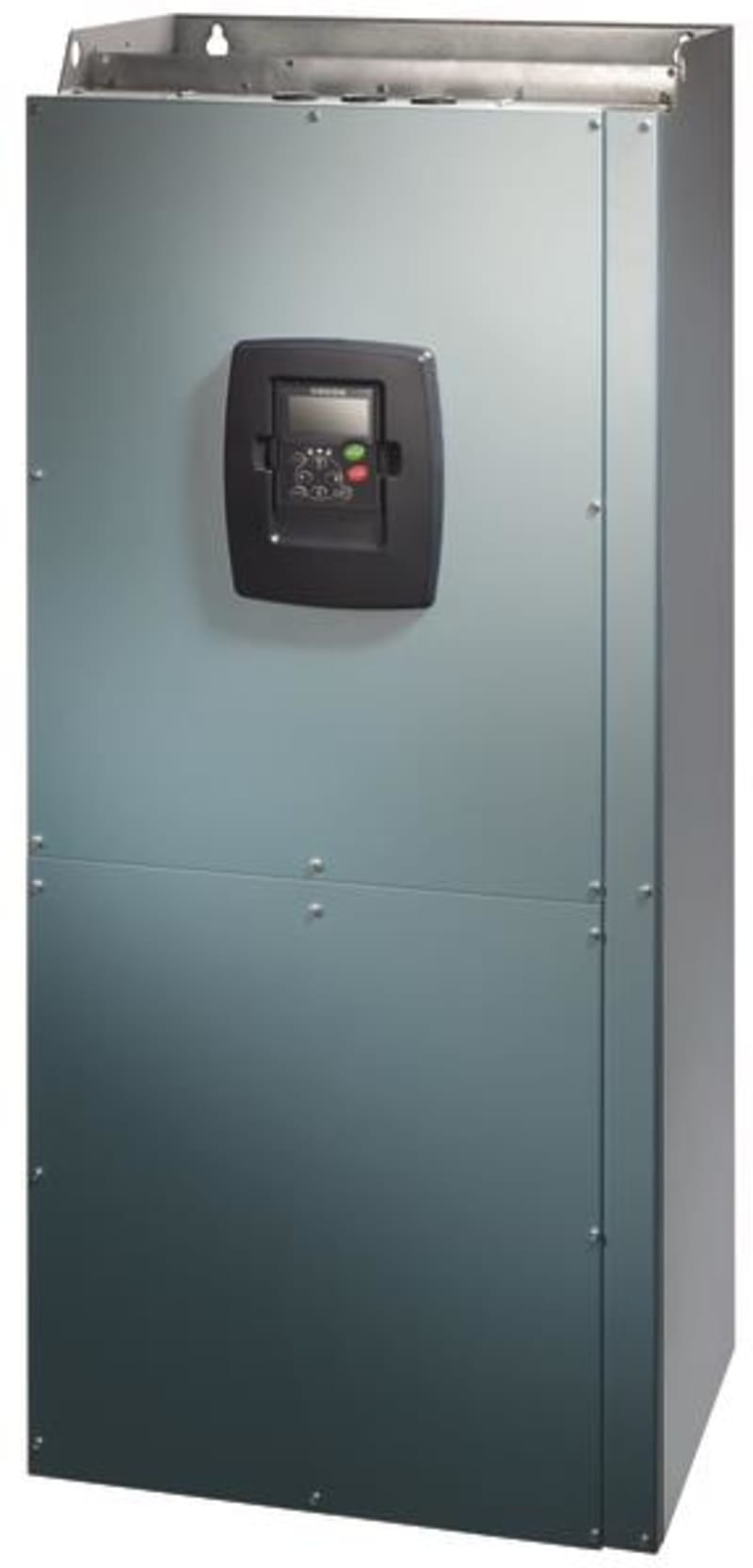

Variable-frequency drive 690V 200 kW (SPX200A2-5A4N1)

Eaton Variable-frequency drive 690V 200 kW (SPX200A2-5A4N1) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 125400; Depth: 602 mm; Height: 2018 mm; Width: 595 mm.

Manufacturer part number (MPN)

SPX200A2-5A4N1

EAN / GTIN

4015081230068

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

125400

Depth

602 mm

Height

2018 mm

Width

595 mm

Weight

275 kg

Altitude

Max. 3000 m; Max. 1000 m; Above 1000 m with 1 % performance reduction per 100 m

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

50 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 % relative humidity, no condensation, no corrosion, no dripping water

Communication interface

PROFIBUS-DP; BACnet/IP, optional; CANopen®, optional; DeviceNet, optional; Modbus-TCP, optional; LonWorks, optional; BACnet MS/TP, optional; EtherCAT, optional; Ethernet IP, optional; Modbus-RTU, optional; PROFINET, optional

Connection to SmartWire-DT

No

Protocol

TCP/IP; LON; PROFIBUS; DeviceNet; Data-Highway; CAN; Other bus systems

Number of inputs (analog)

2

Number of inputs (digital)

6

Number of outputs (analog)

1

Number of outputs (digital)

1

Number of relay outputs

2 (parameterizable, N/O, 8 A (24 V DC) / 8 A (250 V AC) / 0,4 A (125 V DC))

Rated control voltage (Uc)

24 V DC (external, max. 250 mA)

Equipment heat dissipation, current-dependent Pvid

5000 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

208 A

Static heat dissipation, non-current-dependent Pvs

0 W

Degree of protection

IP54; NEMA 12

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Fitted with

DC link choke; Control unit; Internal DC link; OLED display; Radio interference suppression filter; PC connection; IGBT inverter

Frame size

FR10

Functions

4-quadrant operation possible

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Radio interference class

C2

C3

depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.

Suitable for

Branch circuits, (UL/CSA)

Mains voltage - max

690 V

Mains voltage - min

525 V

Operating mode

Sensorless vector control (SLV); U/f control; Optional: Vector control with feedback (CLV)

Output frequency - max

320 Hz

Output frequency - min

0 Hz

Output voltage (U2)

690 V AC, 3-phase; 600 V AC, 3-phase

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

66 Hz

Rated frequency - min

45 Hz

Rated operational current (Ie) at 110% overload

261 A

Rated operational current (Ie) at 150% overload

208 A

Rated operational power at 690 V, 50 Hz

3-phase

200 kW

Rated operational power at 690 V, 50 Hz, 3-phase

110% overload

250 kW

Rated operational voltage

600 V AC, 3-phase; 690 V AC, 3-phase

Resolution

0.01 Hz (Frequency resolution, setpoint value)

Supply frequency

50/60 Hz

Switching frequency

1.5 kHz, 1 - 6 kHz adjustable, fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

690 VAC

Assigned motor current IM at 690 V, 50 Hz

110% overload

253 A

Assigned motor current IM at 690 V, 50 Hz

150% overload

202 A

Assigned motor current IM at 690 V, 60 Hz

110% overload

251 A

Assigned motor current IM at 690 V, 60 Hz

150% overload

167 A

Assigned motor power at 690 V, 60 Hz

3-phase

200 HP

Assigned motor power at 690 V, 60 Hz, 3-phase

110 % overload

300 HP

HS Code

8504.40
