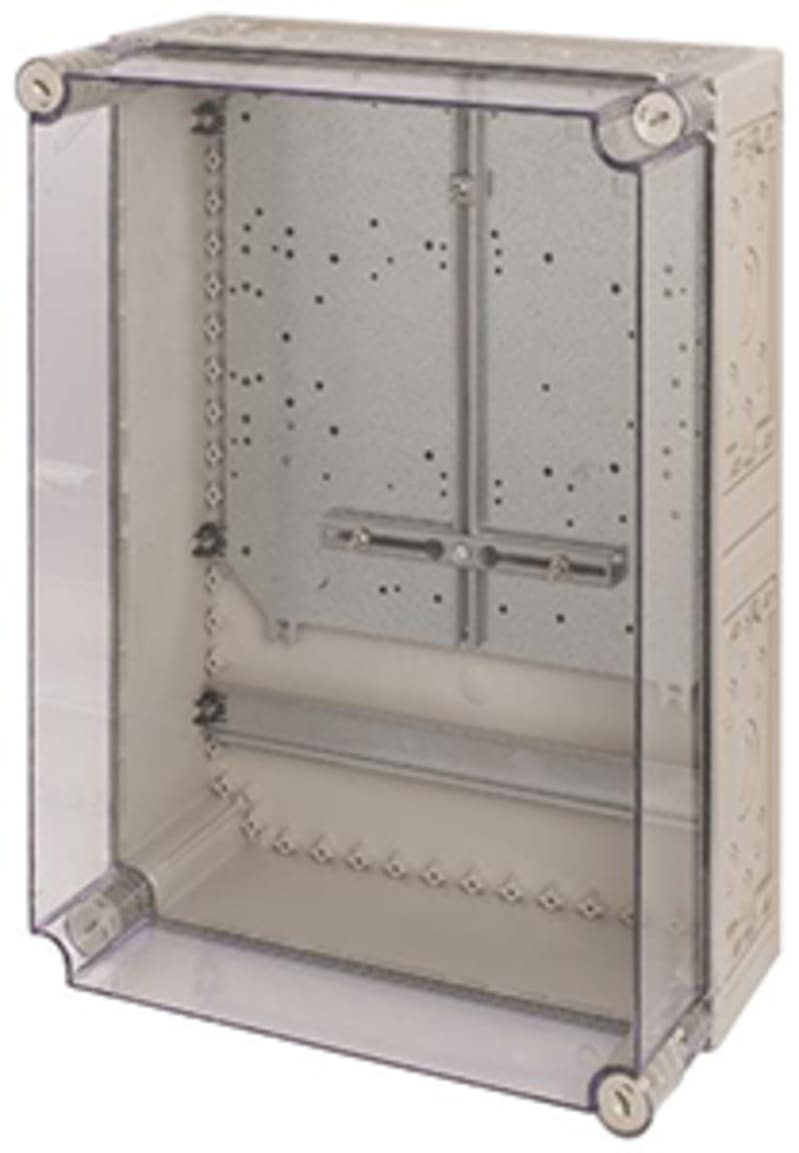

Meter Enclosure 500X375X225MM
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Meter Enclosure 500X375X225MM (part number ZG/I45E-200) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 098479; Depth: 225 mm; Height: 500 mm; Width: 375 mm; Weight: 8.2 kg.
Technical Specifications
- Manufacturer part number (MPN)
- ZG/I45E-200
- EAN / GTIN
- 4015080984795
- Sales unit
- pcs
- Eaton catalogue number
- 098479
- Depth
- 225 mm
- Height
- 500 mm
- Width
- 375 mm
- Weight
- 8.2 kg
- Compliances
- RoHS conform
- Features
- Cover with overpressure release
- Fitted with
- Mounting plate
- Functions
- Extension possible
- Protection class
- II
- RAL-number
- 7035
- Special features
- Meter rail to DIN 43853 including meter fixing screws and nuts Metric cable entry knockouts in all sides Fixing straps for wall fixing Sealable cover fasteners
- Suitable for
- Outdoor use; Lightning protection
- Accessory/spare part type
- Meter rail; Meter enclosures
- Color
- Gray
- Nominal current
- 1600 A
- Type
- Ci insulated enclosure Meter enclosures Prepared enclosures
- Circuit integrity
- Other
- Cover/door color
- Transparent
- Cover/door model
- Closed
- Cover/door type
- Transparent; Optional; None
- Degree of protection
- IP65; Other; IK10
- Enclosure material
- Plastic
- Mounting depth
- 186 mm
- Number of conduit inlets
- 104
- Number of modules
- 1
- Number of openings (flange plates)
- 6
- Number of rows
- 0
- Plate thickness (cabinet)
- 6 mm
- Plate thickness (cover/door)
- 6 mm
- Surface protection
- Other
- Unit type
- Complete housing
- Width in number of modular spacings
- 17
- Built-in depth
- 200 mm
- Internal depth
- 200 mm
- Mounting method
- Surface mounted (plaster)
- Dimensions
- 500x375x225 mm
- Colour
- Grey
- With mounting plate
- Yes
- Material
- Plastic
- Impact strength
- IK10
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080984795
- SAP 1000788237
- Code 81399741
Product Documentation
More from Eaton
Eaton
Contactor DILM8-11(230V50/60HZ)-PI
Eaton
Push-button, Flat Front (M30C-FD-G-X1)
Eaton
Eaton NZMB1-A20-SVE Molded-Case Circuit Breaker 3-Pole 20A 25KA
Eaton
Frame - T/B B1000 D800
XSFB1008
Eaton
Cabinet H×W×D 1600X800X400 IP40
XVTL-BF-8/4/16
Eaton
Pl. backplate HxB=1560X600 mm
BPZ-RPP-600/15
Eaton
Wall box H×W×D=1060X800X180MM
BPZ-WB3S-800/10/1
Eaton
Mounting Kit 2XNZM4 3P fast xE M B800
XMN430802
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZG/I45E-200?
- ZG/I45E-200 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is ZG/I45E-200.
- What is the HS code for ZG/I45E-200?
- The customs tariff (HS) code for ZG/I45E-200 is 8538.10.
- Who manufactures ZG/I45E-200?
- ZG/I45E-200 is a Eaton product in the Enclosures range.
- Is a datasheet available for ZG/I45E-200?
- Yes — the ZG/I45E-200 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZG/I45E-200?
- The minimum order quantity is 1.
- Is ZG/I45E-200 available?
- Yes — ZG/I45E-200 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
